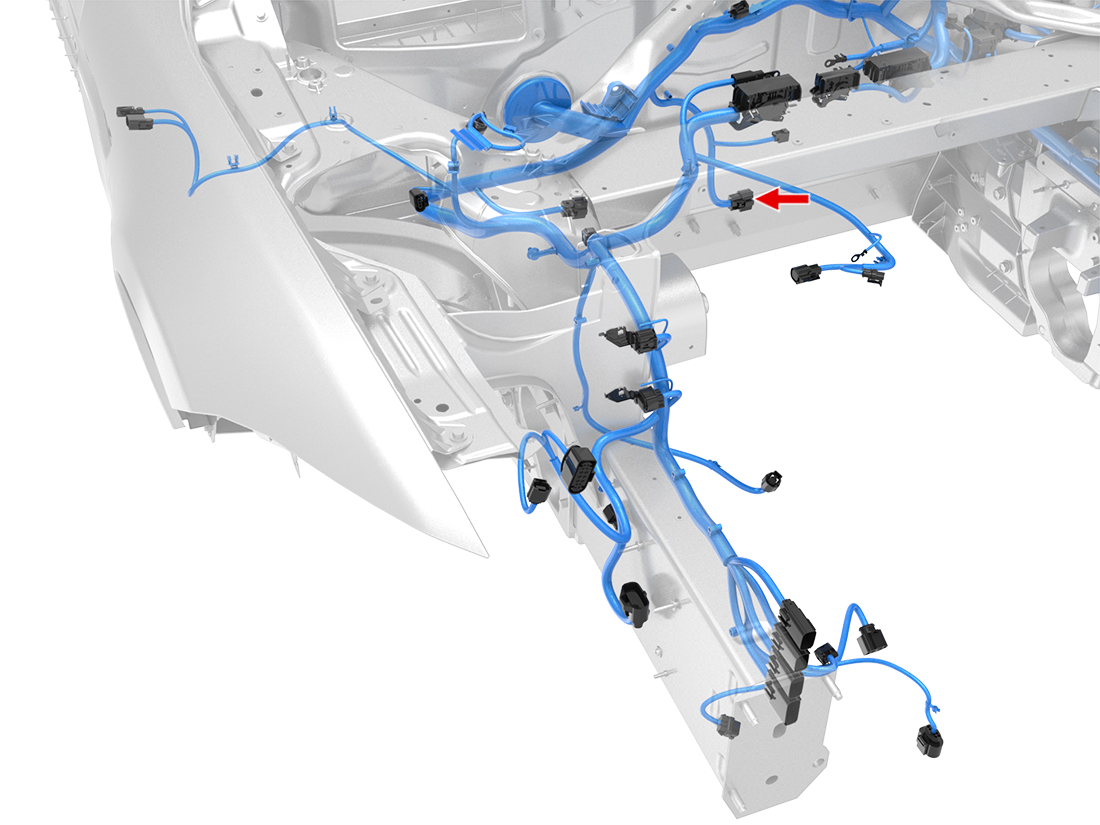

X041 - s-rhd-sop10
Location:
Location:
Connector Detail: Molex 33472-1201
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: CPT KCRT1329-0202AA
Color: SN
Serviceability: Not Serviceable
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/BK | 0.35 | SN | X777-7 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 2 | RD/WH | 0.35 | SN | X777-11 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 3 | RD | 0.35 | SN | X777-22 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 8 | RD/YE | 0.5 | SN | X040-12 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 9 | YE | 0.5 | SN | X953F-12 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | RD/BN | 4 | SN | X150-1 | - |
| 1 | RD/BN | 4 | SN | X150A-1 | - |
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | RD/BN | 4 | SN | X150-1 | - |
| 1 | RD/BN | 4 | SN | X150A-1 | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/BK | 0.35 | SN | X777-7 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 2 | RD/WH | 0.35 | SN | X777-11 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 3 | RD | 0.35 | SN | X777-22 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 8 | RD/YE | 0.5 | SN | X040-12 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 9 | YE | 0.5 | SN | X953F-12 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
