X044 - s-rhd-sop10

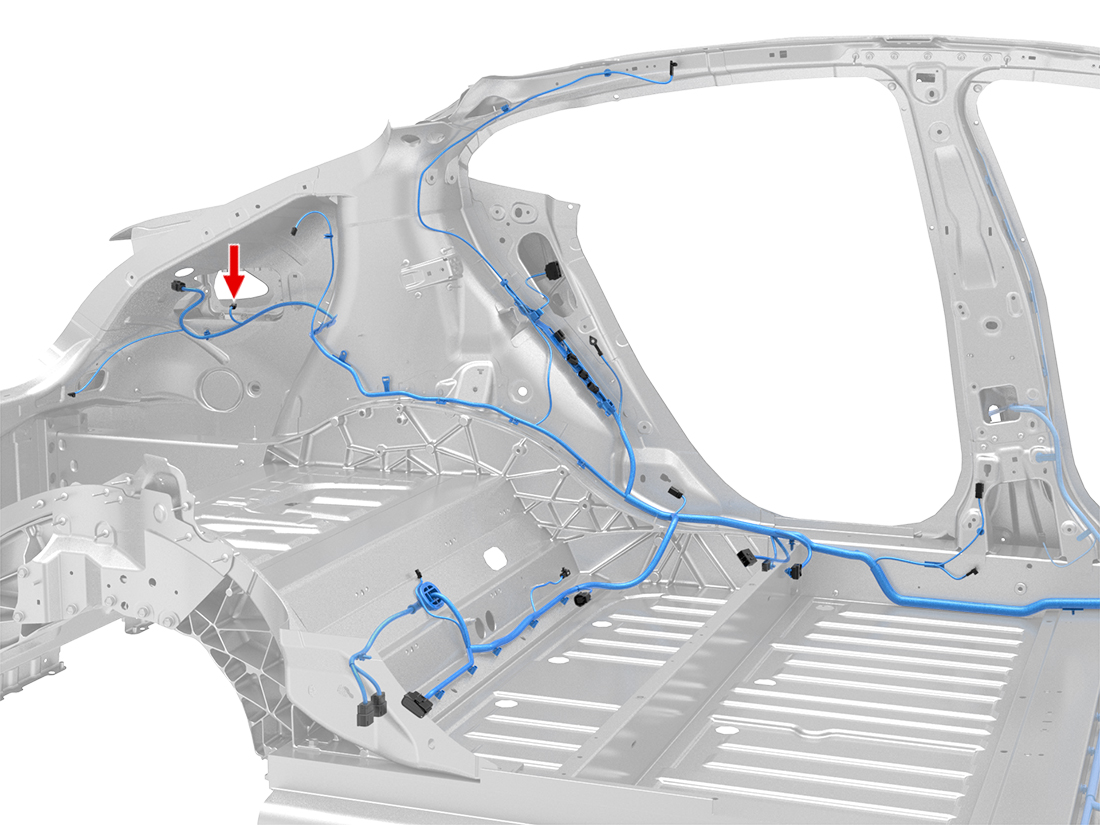

Location:
Location:
Connector Detail: AMP 185311-1
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: CPT KCRT1344-0202AA
Color: SN
Serviceability: Not Serviceable
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/BU | 0.5 | SN | X570-4 | AMP 5-963715-1 | 1099458-00-A | ||
| 2 | WH/BK | 0.35 | SN | X976F-7 | AMP 5-928999-1 | 1099455-00-B | ||
| 3 | RD/WH | 0.35 | SN | X778-4 | AMP 5-928999-1 | 1099455-00-B | ||
| 4 | BK | 0.5 | SN | G720-1 | AMP 5-963715-1 | 1099458-00-A | ||
| 6 | RD | 0.35 | SN | X778-15 | AMP 5-928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | RD | 16 | SN | X040-1 | - |
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | RD | 16 | SN | X040-1 | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/BU | 0.5 | SN | X570-4 | AMP 5-963715-1 | 1099458-00-A | ||
| 2 | WH/BK | 0.35 | SN | X976F-7 | AMP 5-928999-1 | 1099455-00-B | ||
| 3 | RD/WH | 0.35 | SN | X778-4 | AMP 5-928999-1 | 1099455-00-B | ||
| 4 | BK | 0.5 | SN | G720-1 | AMP 5-963715-1 | 1099458-00-A | ||
| 6 | RD | 0.35 | SN | X778-15 | AMP 5-928999-1 | 1099455-00-B |
