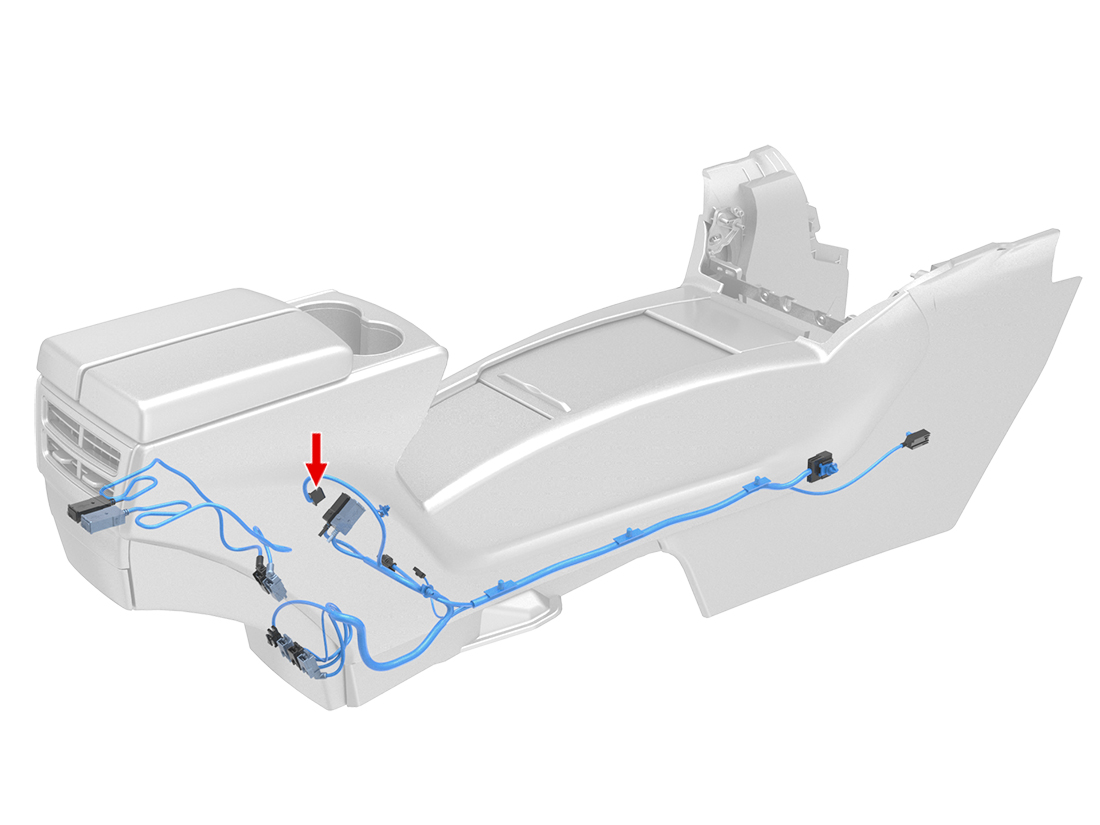

Location:
Connector Detail: KET 651439
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/WH | 0.35 | SN | X982M-16 | KET 730913-3 | | 1099503-00-A | |
| 2 | GY | 0.35 | SN | X982M-15 | KET 730913-3 | | 1099503-00-A | |
| 4 | VT | 0.35 | SN | X982M-14 | KET 730913-3 | | 1099503-00-A | |
| 6 | OR | 0.35 | SN | X982M-13 | KET 730913-3 | | 1099503-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/WH | 0.35 | SN | X982M-16 | KET 730913-3 | | 1099503-00-A | |
| 2 | GY | 0.35 | SN | X982M-15 | KET 730913-3 | | 1099503-00-A | |
| 4 | VT | 0.35 | SN | X982M-14 | KET 730913-3 | | 1099503-00-A | |
| 6 | OR | 0.35 | SN | X982M-13 | KET 730913-3 | | 1099503-00-A | |
