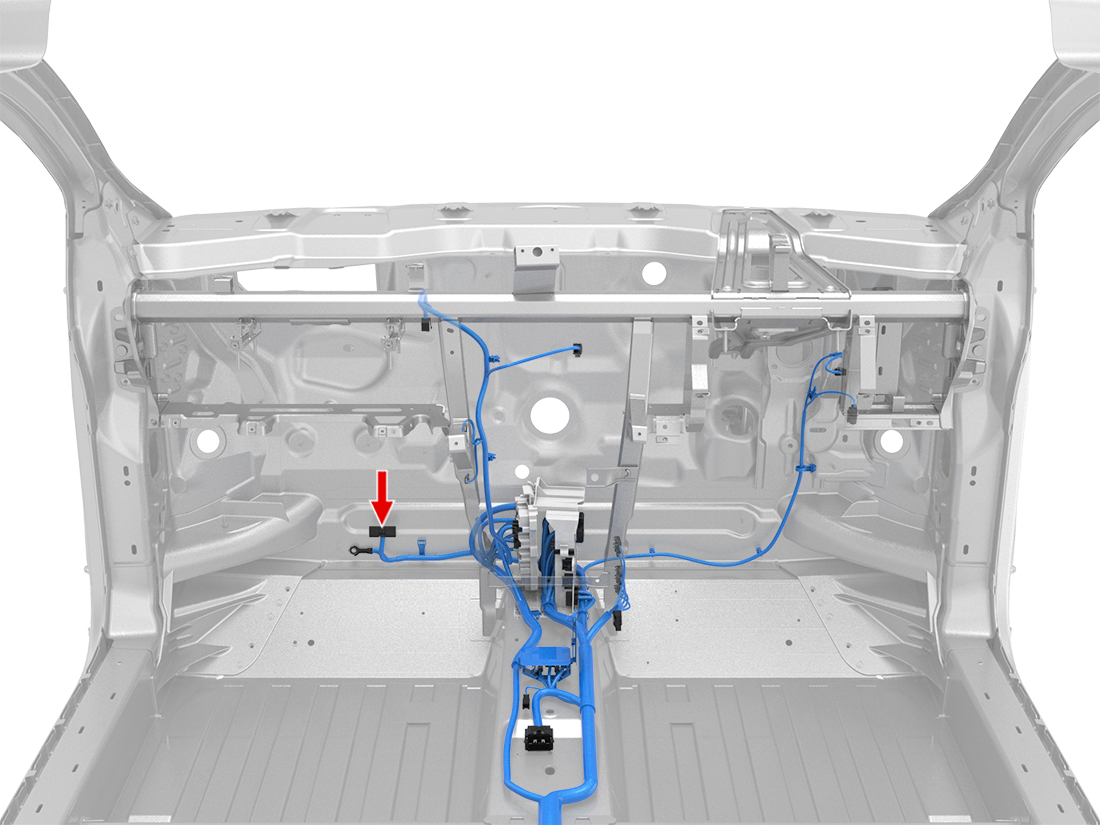

Location:

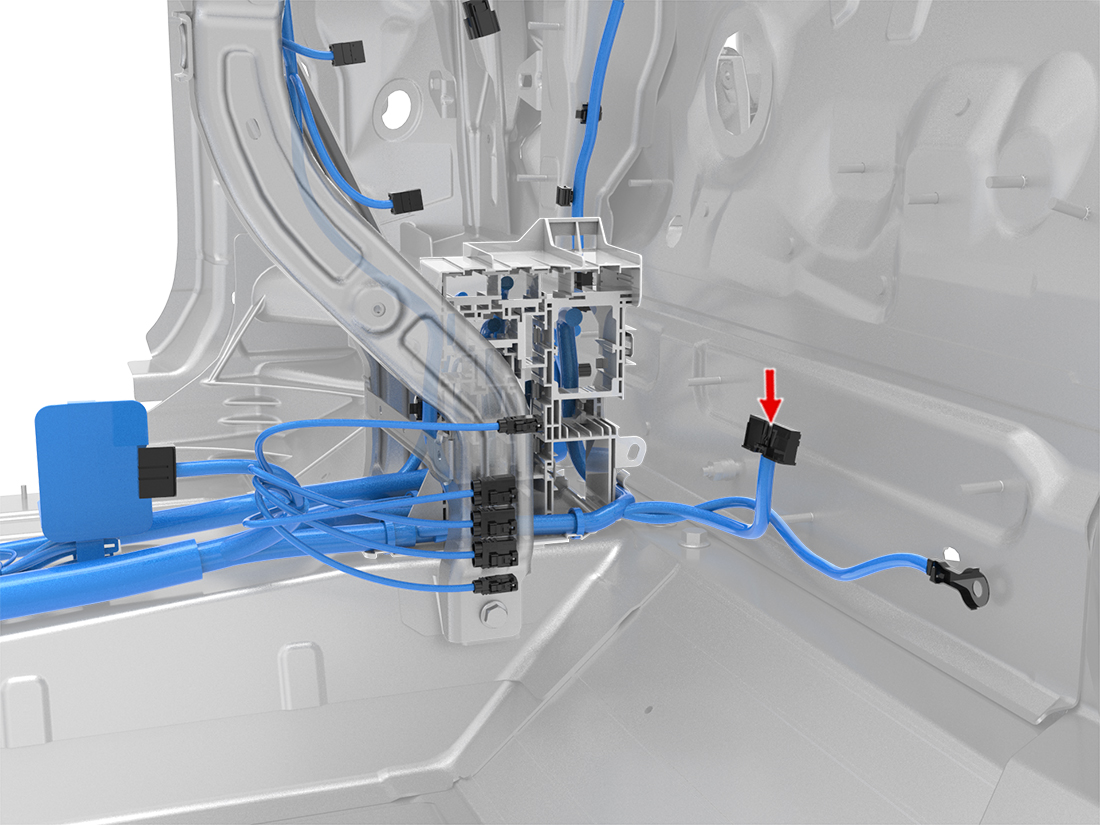

Location:
Connector Detail: SUMITOMO 6098-4831
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GY/BU | 0.5 | SN | X276-1 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 2 | BN | 0.13 | SN | X708-13 | SUMITOMO 8240-0182 | | 1099530-00-A | |
| 3 | WH | 0.13 | SN | X708-2 | SUMITOMO 8240-0182 | | 1099530-00-A | |
| 4 | GN/WH | 0.35 | SN | X703-5 | SUMITOMO 8100-3624 | | 1099530-00-A | |
| 5 | GN | 0.35 | SN | X703-16 | SUMITOMO 8100-3624 | | 1099530-00-A | |
| 9 | RD/VT | 0.35 | SN | X029-8 | SUMITOMO 8100-3624 | | 1099530-00-A | |
| 18 | VT/WH | 0.35 | SN | X913M-16 | SUMITOMO 8100-3624 | | 1099530-00-A | |
| 24 | BU | 0.13 | SN | X911M-8 | SUMITOMO 8240-0182 | | 1099530-00-A | |
| 25 | BN | 0.13 | SN | X911M-4 | SUMITOMO 8240-0182 | | 1099530-00-A | |
| 26 | GN | 0.35 | SN | X910M-8 | SUMITOMO 8100-3624 | | 1099530-00-A | |
| 27 | RD | 0.35 | SN | X910M-19 | SUMITOMO 8100-3624 | | 1099530-00-A | |
| 36 | GY/WH | 0.35 | SN | X028-5 | SUMITOMO 8100-3624 | | 1099530-00-A | |
| 38 | VT/WH | 0.35 | SN | X911M-1 | SUMITOMO 8100-3624 | | 1099530-00-A | |
| 39 | RD/BU | 0.5 | SN | X131-14 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 39 | RD/BU | 0.5 | SN | X131A-14 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GY/BU | 0.5 | SN | X276-1 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 2 | BN | 0.13 | SN | X708-13 | SUMITOMO 8240-0182 | | 1099530-00-A | |
| 3 | WH | 0.13 | SN | X708-2 | SUMITOMO 8240-0182 | | 1099530-00-A | |
| 4 | GN/WH | 0.35 | SN | X703-5 | SUMITOMO 8100-3624 | | 1099530-00-A | |
| 5 | GN | 0.35 | SN | X703-16 | SUMITOMO 8100-3624 | | 1099530-00-A | |
| 9 | RD/VT | 0.35 | SN | X029-8 | SUMITOMO 8100-3624 | | 1099530-00-A | |
| 18 | VT/WH | 0.35 | SN | X913M-16 | SUMITOMO 8100-3624 | | 1099530-00-A | |
| 24 | BU | 0.13 | SN | X911M-8 | SUMITOMO 8240-0182 | | 1099530-00-A | |
| 25 | BN | 0.13 | SN | X911M-4 | SUMITOMO 8240-0182 | | 1099530-00-A | |
| 26 | GN | 0.35 | SN | X910M-8 | SUMITOMO 8100-3624 | | 1099530-00-A | |
| 27 | RD | 0.35 | SN | X910M-19 | SUMITOMO 8100-3624 | | 1099530-00-A | |
| 36 | GY/WH | 0.35 | SN | X028-5 | SUMITOMO 8100-3624 | | 1099530-00-A | |
| 38 | VT/WH | 0.35 | SN | X911M-1 | SUMITOMO 8100-3624 | | 1099530-00-A | |
| 39 | RD/BU | 0.5 | SN | X131-14 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 39 | RD/BU | 0.5 | SN | X131A-14 | SUMITOMO 8100-3625 | | 1099530-00-A | |
