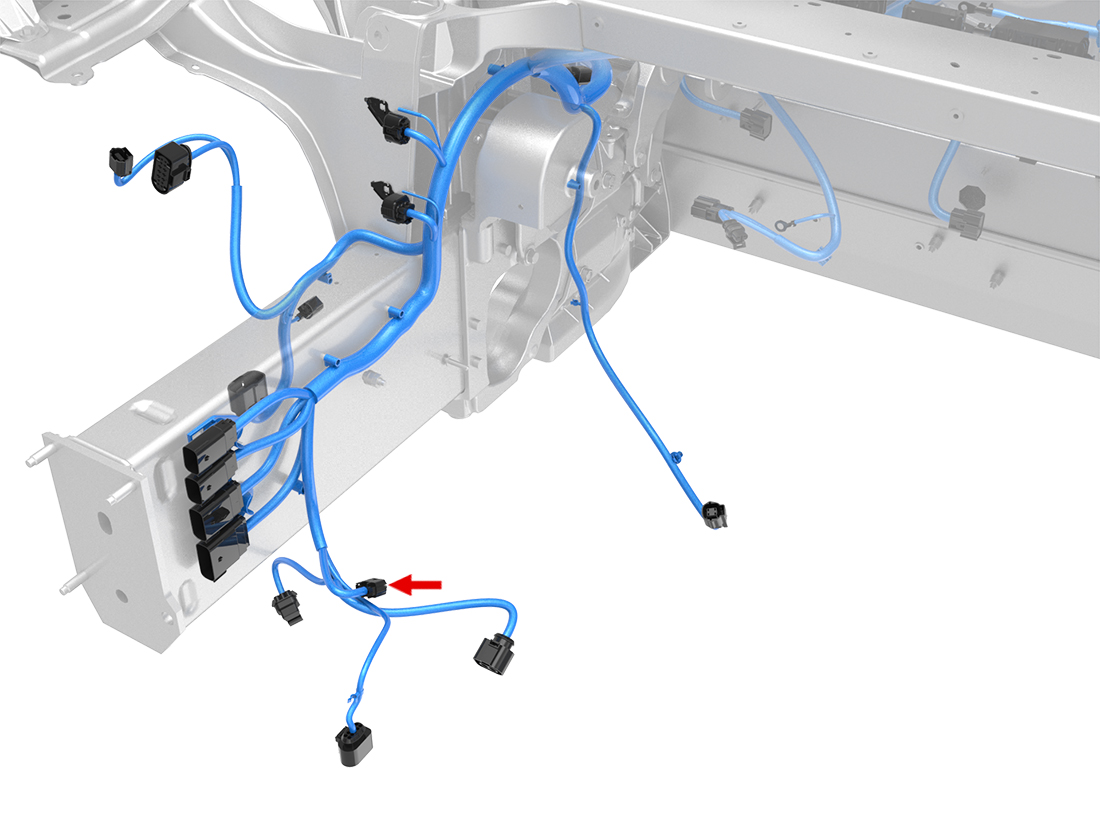

Location:
Connector Detail: AMP 1-967640-1
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | YE/WH | 0.35 | SN | X053-17 | AMP 5-962885-1 | AMP 967067-2 | 1099457-00-B | |
| 2 | GN/RD | 0.35 | SN | X052-4 | AMP 5-962885-1 | AMP 967067-2 | 1099457-00-B | |
| 3 | OG/BK | 0.35 | SN | X053-7 | AMP 5-962885-1 | AMP 967067-2 | 1099457-00-B | |
| 4 | GN/WH | 0.35 | SN | Z42-HVC01-R | AMP 5-962885-1 | AMP 967067-2 | 1099457-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | YE/WH | 0.35 | SN | X053-17 | AMP 5-962885-1 | AMP 967067-2 | 1099457-00-B | |
| 2 | GN/RD | 0.35 | SN | X052-4 | AMP 5-962885-1 | AMP 967067-2 | 1099457-00-B | |
| 3 | OG/BK | 0.35 | SN | X053-7 | AMP 5-962885-1 | AMP 967067-2 | 1099457-00-B | |
| 4 | GN/WH | 0.35 | SN | Z42-HVC01-R | AMP 5-962885-1 | AMP 967067-2 | 1099457-00-B | |
