X069 - s-rhd-sop10

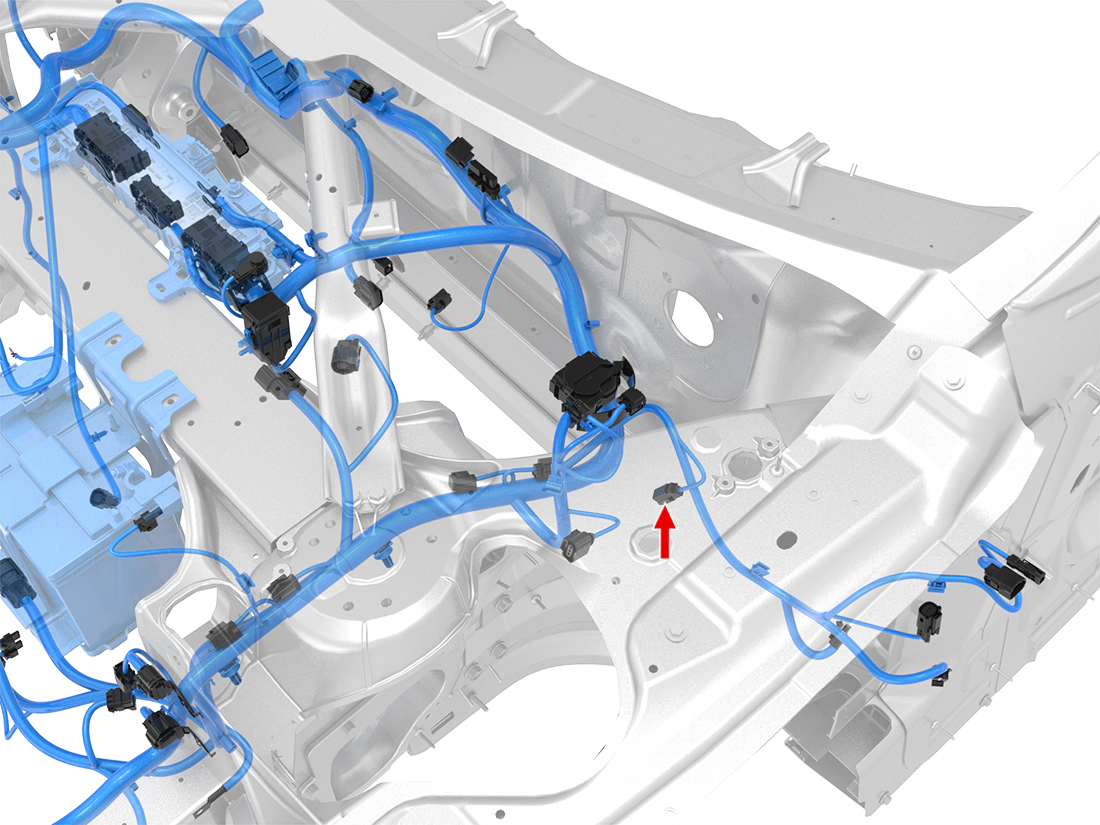

Location:
Connector Detail: Molex 31403-2100
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | YE/WH | 0.35 | SN | X053-9 | Molex 33468-0022 | Tesla MAT-120-206 | 1099523-00-A | |
| 2 | BN/WH | 0.35 | SN | X053-19 | Molex 33468-0022 | Tesla MAT-120-206 | 1099523-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | YE/WH | 0.35 | SN | X053-9 | Molex 33468-0022 | Tesla MAT-120-206 | 1099523-00-A | |
| 2 | BN/WH | 0.35 | SN | X053-19 | Molex 33468-0022 | Tesla MAT-120-206 | 1099523-00-A |
