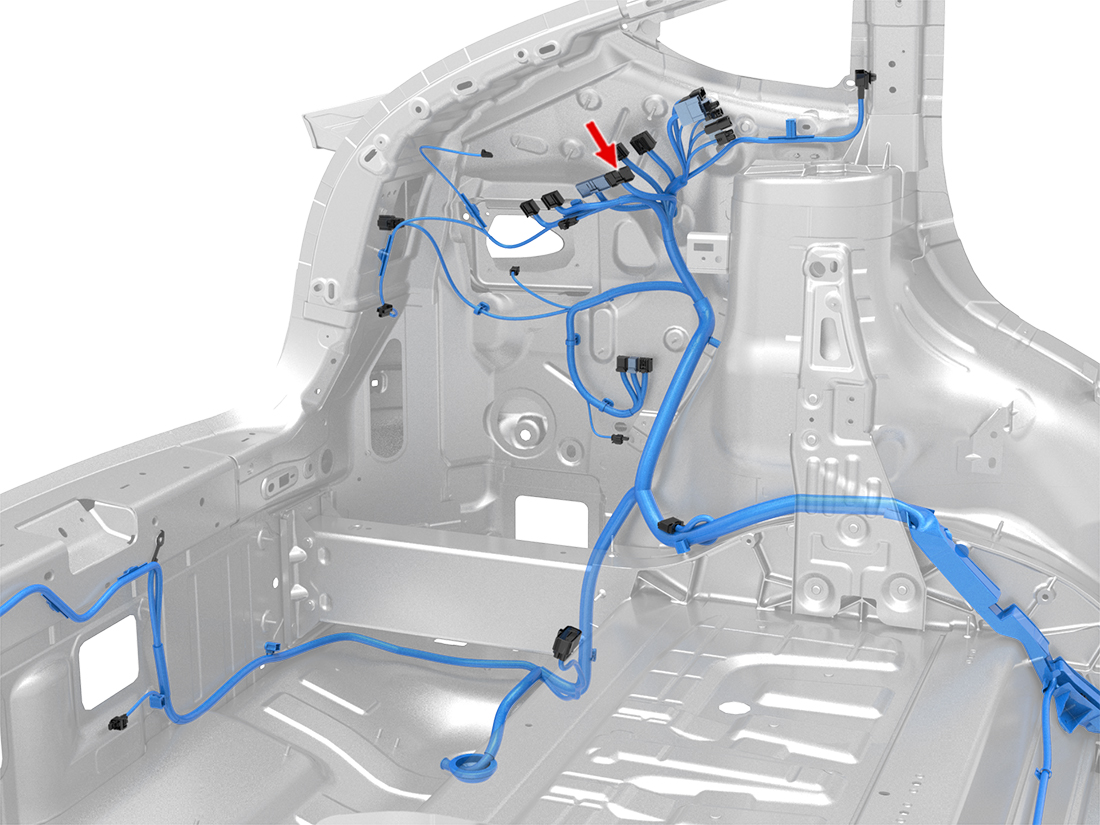

Location:
Connector Detail: SUMITOMO 6098-4756
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 2 | VT | 0.35 | SN | X981M-1 | SUMITOMO 8100-3624 | | 1099530-00-A | |
| 3 | RD | 0.13 | SN | X955M-4 | SUMITOMO 8240-0182 | | 1099530-00-A | |
| 5 | WH | 0.13 | SN | X955M-3 | SUMITOMO 8240-0182 | | 1099530-00-A | |
| 8 | VT | 0.5 | SN | X270-3 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 9 | GN | 0.5 | SN | X270-5 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 10 | VT | 0.13 | SN | X955M-5 | SUMITOMO 8240-0182 | | 1099530-00-A | |
| 11 | GY | 0.5 | SN | X270-2 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 14 | BN | 0.5 | SN | X270-4 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 15 | VT/WH | 0.5 | SN | X272-4 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 17 | VT | 0.35 | SN | X954M-7 | SUMITOMO 8100-3624 | | 1099530-00-A | |
| 18 | GN | 0.13 | SN | X955M-15 | SUMITOMO 8240-0182 | | 1099530-00-A | |
| 19 | GY | 0.13 | SN | X955M-7 | SUMITOMO 8240-0182 | | 1099530-00-A | |
| 20 | BN | 0.13 | SN | X977M-4 | SUMITOMO 8240-0182 | | 1099530-00-A | |
| 21 | WH | 0.13 | SN | X977M-2 | SUMITOMO 8240-0182 | | 1099530-00-A | |
| 22 | BU | 0.13 | SN | X955M-14 | SUMITOMO 8240-0182 | | 1099530-00-A | |
| 25 | GY/WH | 0.5 | SN | X272-3 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 26 | RD | 0.5 | SN | X272-5 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 27 | GY | 0.13 | SN | X955M-16 | SUMITOMO 8240-0182 | | 1099530-00-A | |
| 28 | BU | 0.5 | SN | X272-2 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 2 | VT | 0.35 | SN | X981M-1 | SUMITOMO 8100-3624 | | 1099530-00-A | |
| 3 | RD | 0.13 | SN | X955M-4 | SUMITOMO 8240-0182 | | 1099530-00-A | |
| 5 | WH | 0.13 | SN | X955M-3 | SUMITOMO 8240-0182 | | 1099530-00-A | |
| 8 | VT | 0.5 | SN | X270-3 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 9 | GN | 0.5 | SN | X270-5 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 10 | VT | 0.13 | SN | X955M-5 | SUMITOMO 8240-0182 | | 1099530-00-A | |
| 11 | GY | 0.5 | SN | X270-2 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 14 | BN | 0.5 | SN | X270-4 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 15 | VT/WH | 0.5 | SN | X272-4 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 17 | VT | 0.35 | SN | X954M-7 | SUMITOMO 8100-3624 | | 1099530-00-A | |
| 18 | GN | 0.13 | SN | X955M-15 | SUMITOMO 8240-0182 | | 1099530-00-A | |
| 19 | GY | 0.13 | SN | X955M-7 | SUMITOMO 8240-0182 | | 1099530-00-A | |
| 20 | BN | 0.13 | SN | X977M-4 | SUMITOMO 8240-0182 | | 1099530-00-A | |
| 21 | WH | 0.13 | SN | X977M-2 | SUMITOMO 8240-0182 | | 1099530-00-A | |
| 22 | BU | 0.13 | SN | X955M-14 | SUMITOMO 8240-0182 | | 1099530-00-A | |
| 25 | GY/WH | 0.5 | SN | X272-3 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 26 | RD | 0.5 | SN | X272-5 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 27 | GY | 0.13 | SN | X955M-16 | SUMITOMO 8240-0182 | | 1099530-00-A | |
| 28 | BU | 0.5 | SN | X272-2 | SUMITOMO 8100-3625 | | 1099530-00-A | |
