X071 - s-rhd-sop10

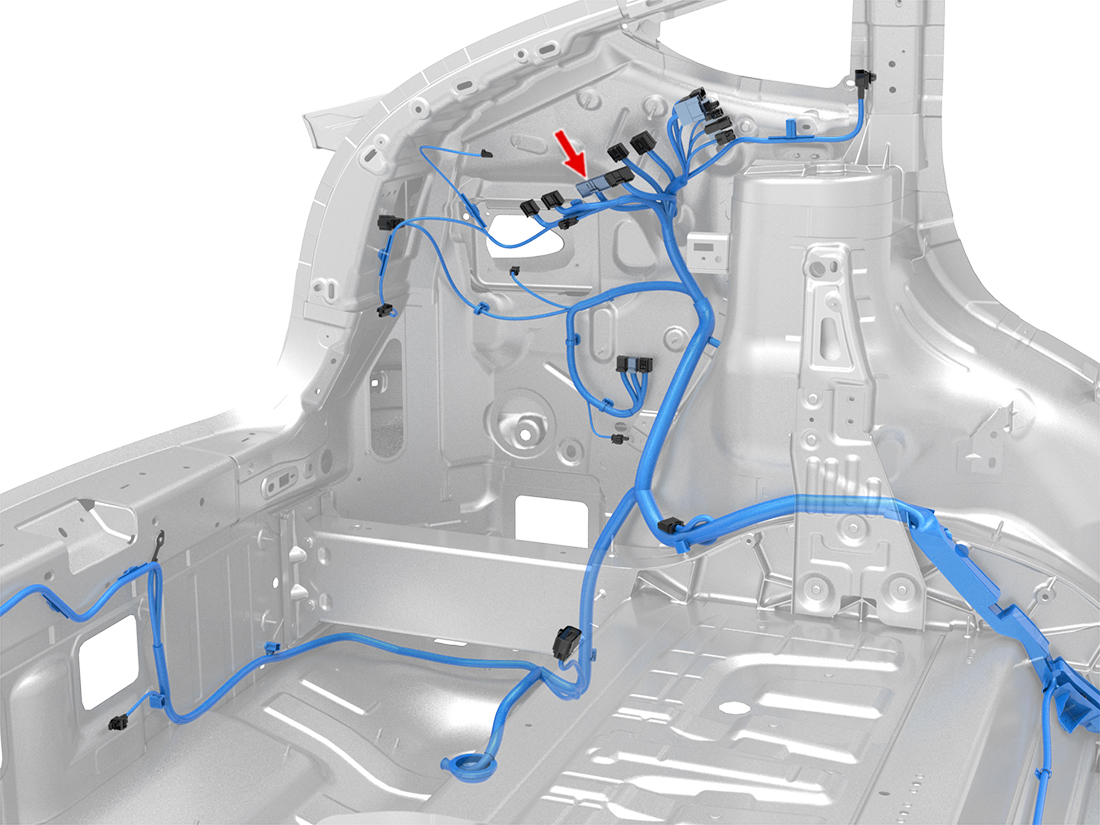

Location:

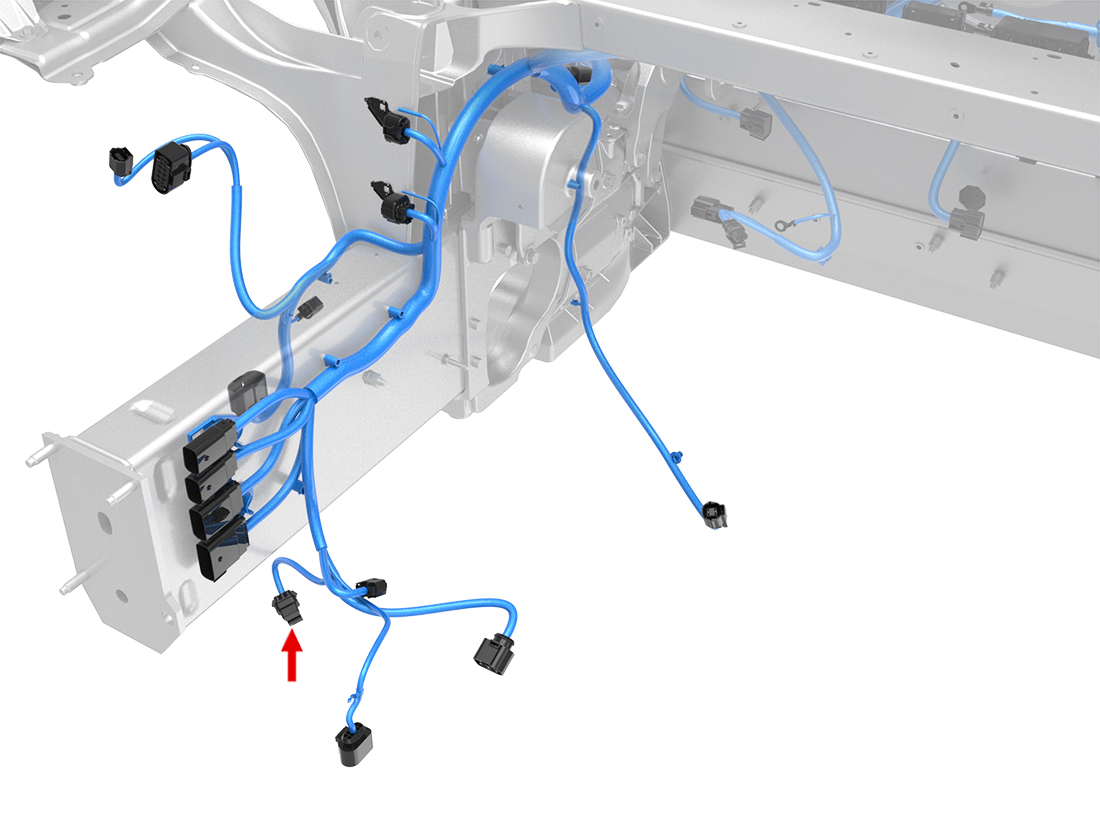

Location:
Connector Detail: Delphi 35027669
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: SUMITOMO 6098-4831
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| A | RD/GY | 0.35 | SN | X050-15 | Delphi 12084200 | Delphi 15324974 | 1099477-00-B | |
| C | BK | 0.35 | SN | G510-1 | Delphi 12084200 | Delphi 15324974 | 1099477-00-B | |
| D | BK/GY | 0.35 | SN | X052-17 | Delphi 12084200 | Delphi 15324974 | 1099477-00-B | |
| F | YE/WH | 0.35 | SN | X052-7 | Delphi 12084200 | Delphi 15324974 | 1099477-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU | 0.13 | SN | X955M-18 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 2 | GY | 0.13 | SN | X955M-19 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 3 | GN | 0.35 | SN | X293A-1 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 4 | GY/WH | 0.5 | SN | X955M-17 | SUMITOMO 8100-3625 | 1099530-00-A | ||
| 5 | GN | 0.13 | SN | X955M-21 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 6 | VT | 0.13 | SN | X955M-8 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 8 | WH | 0.13 | SN | X955M-6 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 11 | GY | 0.13 | SN | X702-17 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 11 | GY | 0.13 | SN | X702A-17 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 12 | BN | 0.13 | SN | X702-3 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 12 | BN | 0.13 | SN | X702A-3 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 14 | BN/WH | 0.35 | SN | X353-1 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 15 | VT | 0.35 | SN | X954M-14 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 17 | BU/WH | 0.35 | SN | X954M-5 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 18 | VT | 0.13 | SN | X955M-20 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 19 | WH | 0.13 | SN | X955M-9 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 20 | GY | 0.35 | SN | X353-3 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 21 | GN | 0.35 | SN | X353-2 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 25 | GN | 0.13 | SN | X954M-6 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 26 | GY | 0.13 | SN | X954M-16 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 27 | BU | 0.13 | SN | X954M-15 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 28 | RD/BK | 0.35 | SN | X981M-2 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 30 | BU | 0.5 | SN | X954M-13 | SUMITOMO 8100-3625 | 1099530-00-A | ||
| 31 | GY/WH | 0.5 | SN | X954M-3 | SUMITOMO 8100-3625 | 1099530-00-A | ||
| 33 | BU | 0.13 | SN | X955M-10 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 35 | WH | 0.13 | SN | X702-6 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 35 | WH | 0.13 | SN | X702A-6 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 37 | VT/WH | 0.35 | SN | X706-12 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 37 | VT/WH | 0.35 | SN | X706A-12 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 38 | BU/WH | 0.35 | SN | X955M-13 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 40 | BN/WH | 0.35 | SN | X955M-2 | SUMITOMO 8100-3624 | 1099530-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU | 0.13 | SN | X955M-18 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 2 | GY | 0.13 | SN | X955M-19 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 3 | GN | 0.35 | SN | X293A-1 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 4 | GY/WH | 0.5 | SN | X955M-17 | SUMITOMO 8100-3625 | 1099530-00-A | ||
| 5 | GN | 0.13 | SN | X955M-21 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 6 | VT | 0.13 | SN | X955M-8 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 8 | WH | 0.13 | SN | X955M-6 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 11 | GY | 0.13 | SN | X702-17 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 11 | GY | 0.13 | SN | X702A-17 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 12 | BN | 0.13 | SN | X702-3 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 12 | BN | 0.13 | SN | X702A-3 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 14 | BN/WH | 0.35 | SN | X353-1 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 15 | VT | 0.35 | SN | X954M-14 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 17 | BU/WH | 0.35 | SN | X954M-5 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 18 | VT | 0.13 | SN | X955M-20 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 19 | WH | 0.13 | SN | X955M-9 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 20 | GY | 0.35 | SN | X353-3 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 21 | GN | 0.35 | SN | X353-2 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 25 | GN | 0.13 | SN | X954M-6 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 26 | GY | 0.13 | SN | X954M-16 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 27 | BU | 0.13 | SN | X954M-15 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 28 | RD/BK | 0.35 | SN | X981M-2 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 30 | BU | 0.5 | SN | X954M-13 | SUMITOMO 8100-3625 | 1099530-00-A | ||
| 31 | GY/WH | 0.5 | SN | X954M-3 | SUMITOMO 8100-3625 | 1099530-00-A | ||
| 33 | BU | 0.13 | SN | X955M-10 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 35 | WH | 0.13 | SN | X702-6 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 35 | WH | 0.13 | SN | X702A-6 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 37 | VT/WH | 0.35 | SN | X706-12 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 37 | VT/WH | 0.35 | SN | X706A-12 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 38 | BU/WH | 0.35 | SN | X955M-13 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 40 | BN/WH | 0.35 | SN | X955M-2 | SUMITOMO 8100-3624 | 1099530-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| A | RD/GY | 0.35 | SN | X050-15 | Delphi 12084200 | Delphi 15324974 | 1099477-00-B | |
| C | BK | 0.35 | SN | G510-1 | Delphi 12084200 | Delphi 15324974 | 1099477-00-B | |
| D | BK/GY | 0.35 | SN | X052-17 | Delphi 12084200 | Delphi 15324974 | 1099477-00-B | |
| F | YE/WH | 0.35 | SN | X052-7 | Delphi 12084200 | Delphi 15324974 | 1099477-00-B |
