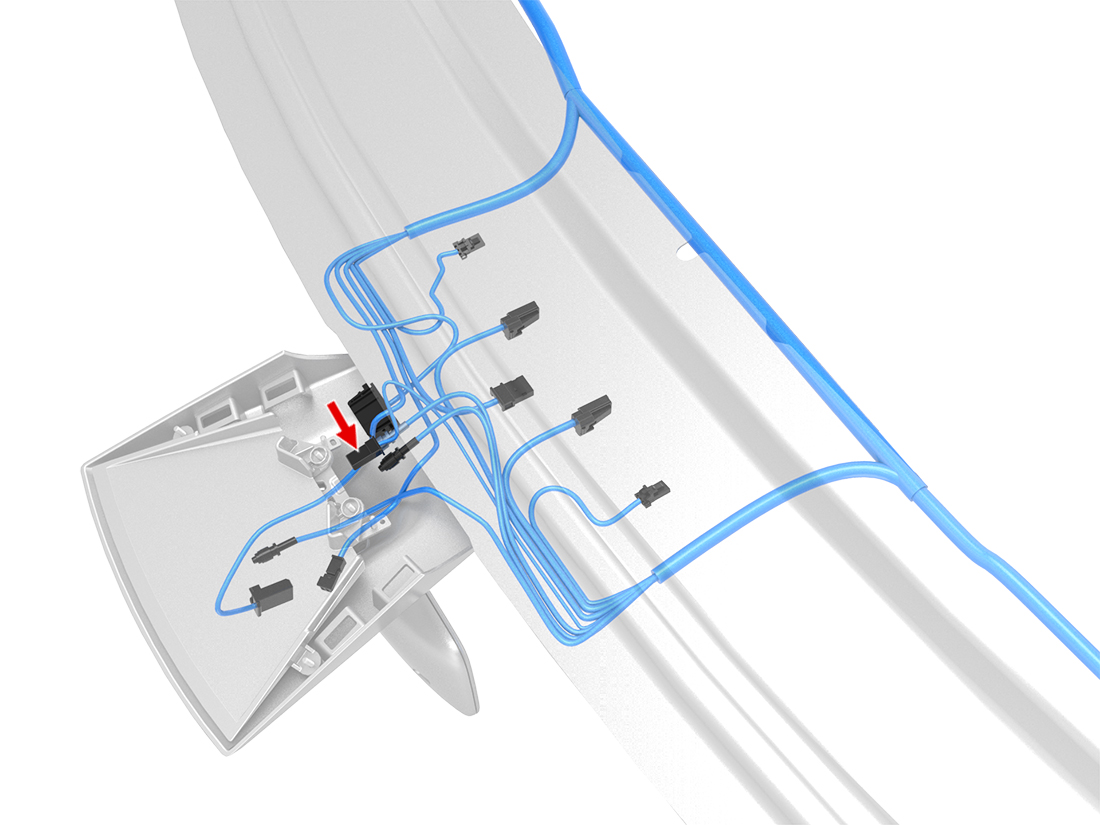

Location:
Connector Detail: AMP 9-1718346-1
Color: WaterBlue
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | VT/WH | 0.35 | SN | X967F-2 | AMP 5-928999-1 | | 1099455-00-B | |
| 2 | YE | 0.35 | SN | X967F-4 | AMP 5-928999-1 | | 1099455-00-B | |
| 3 | RD/VT | 0.35 | SN | X967F-3 | AMP 5-928999-1 | | 1099455-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | VT/WH | 0.35 | SN | X967F-2 | AMP 5-928999-1 | | 1099455-00-B | |
| 2 | YE | 0.35 | SN | X967F-4 | AMP 5-928999-1 | | 1099455-00-B | |
| 3 | RD/VT | 0.35 | SN | X967F-3 | AMP 5-928999-1 | | 1099455-00-B | |
