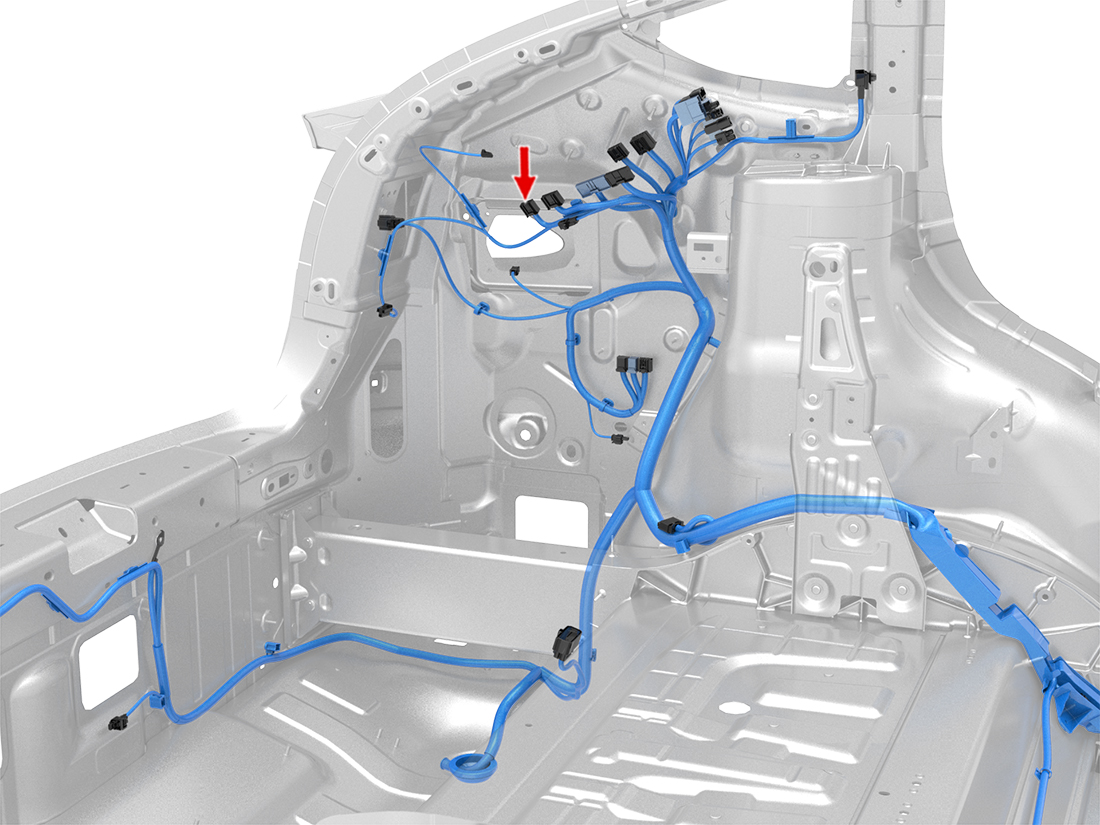

Location:
Connector Detail: SUMITOMO 6098-5713
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GY/WH | 0.75 | SN | X275-5 | SUMITOMO 8240-0213 | | 1099539-00-A | |
| 2 | GN | 0.75 | SN | X275-3 | SUMITOMO 8240-0213 | | 1099539-00-A | |
| 3 | BU | 0.75 | SN | X275-4 | SUMITOMO 8240-0213 | | 1099539-00-A | |
| 4 | WH | 0.75 | SN | X275-2 | SUMITOMO 8240-0213 | | 1099539-00-A | |
| 5 | RD | 0.75 | SN | X275-13 | SUMITOMO 8240-0213 | | 1099539-00-A | |
| 6 | GY | 0.75 | SN | X275-15 | SUMITOMO 8240-0213 | | 1099539-00-A | |
| 8 | GY/WH | 0.5 | SN | X275-12 | SUMITOMO 8240-0215 | | 1099541-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GY/WH | 0.75 | SN | X275-5 | SUMITOMO 8240-0213 | | 1099539-00-A | |
| 2 | GN | 0.75 | SN | X275-3 | SUMITOMO 8240-0213 | | 1099539-00-A | |
| 3 | BU | 0.75 | SN | X275-4 | SUMITOMO 8240-0213 | | 1099539-00-A | |
| 4 | WH | 0.75 | SN | X275-2 | SUMITOMO 8240-0213 | | 1099539-00-A | |
| 5 | RD | 0.75 | SN | X275-13 | SUMITOMO 8240-0213 | | 1099539-00-A | |
| 6 | GY | 0.75 | SN | X275-15 | SUMITOMO 8240-0213 | | 1099539-00-A | |
| 8 | GY/WH | 0.5 | SN | X275-12 | SUMITOMO 8240-0215 | | 1099541-00-A | |
