X081 - s-rhd-sop10

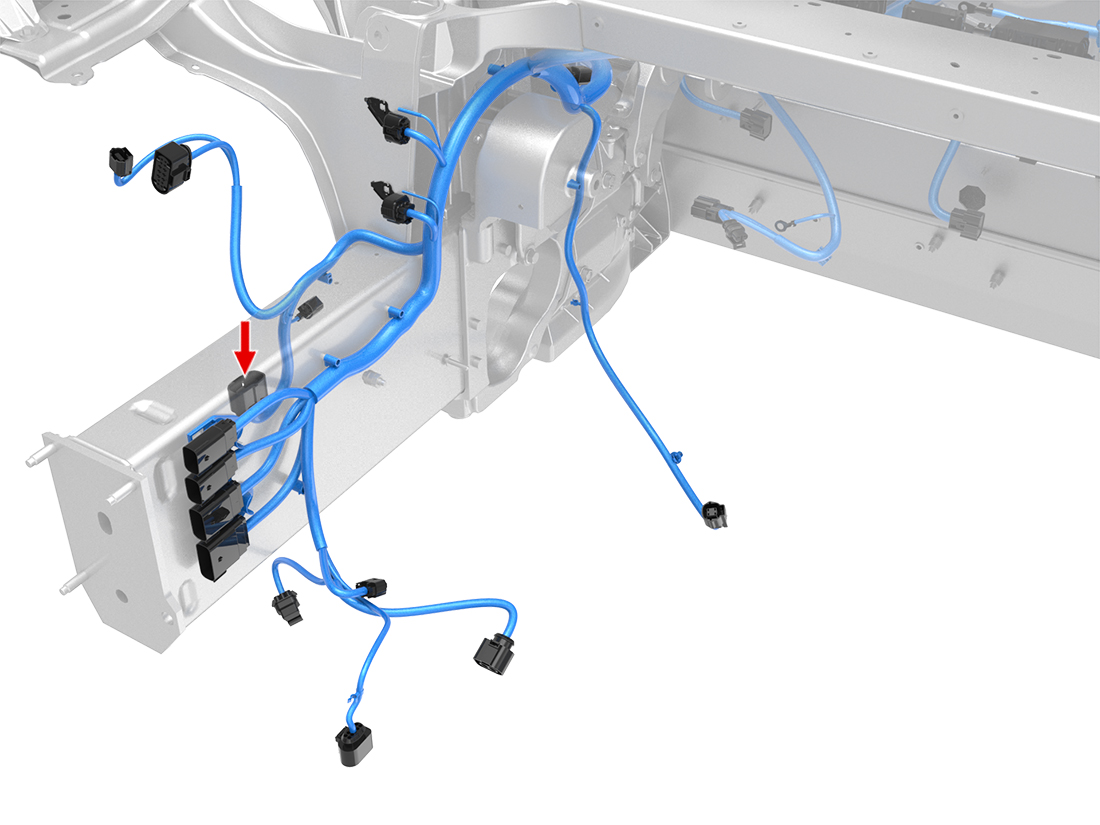

Location:

Location:

Connector Detail: Sumitomo 6098-6203
Color: WH
Serviceability: Terminal Pigtail
Connector Detail: Sumitomo 6189-0588
Color: Gray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | OG | 5 | SN | X549-1 | Sumitomo 8100-2980 | Sumitomo 7165-0400 | 1116657-00-B | |
| 2 | RD/GN | 0.5 | SN | X053-12 | Sumitomo 8100-0467 | Sumitomo 7165-0346 | 1099528-00-B | |
| 3 | BK | 5 | SN | G510-1 | Sumitomo 8100-2980 | Sumitomo 7165-0400 | 1116657-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | VT | 0.35 | SN | X089-1 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 2 | BN | 0.35 | SN | X089-3 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 4 | RD/WH | 0.5 | SN | X003-7 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 6 | YE | 0.35 | SN | X087-4 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 7 | BU | 0.35 | SN | X087-8 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 8 | RD | 0.35 | SN | X087-1 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 9 | WH | 0.35 | SN | X087-2 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 10 | GY | 0.35 | SN | X089-2 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 11 | GY/WH | 0.35 | SN | X087-6 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 13 | BK/WH | 0.5 | SN | GND_FR_RH2-1 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 14 | GY | 0.35 | SN | X087-5 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 16 | GN | 0.35 | SN | X087-3 | Sumitomo 8240-0215 | 1099541-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | VT | 0.35 | SN | X089-1 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 2 | BN | 0.35 | SN | X089-3 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 4 | RD/WH | 0.5 | SN | X003-7 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 6 | YE | 0.35 | SN | X087-4 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 7 | BU | 0.35 | SN | X087-8 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 8 | RD | 0.35 | SN | X087-1 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 9 | WH | 0.35 | SN | X087-2 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 10 | GY | 0.35 | SN | X089-2 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 11 | GY/WH | 0.35 | SN | X087-6 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 13 | BK/WH | 0.5 | SN | GND_FR_RH2-1 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 14 | GY | 0.35 | SN | X087-5 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 16 | GN | 0.35 | SN | X087-3 | Sumitomo 8240-0215 | 1099541-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | OG | 5 | SN | X549-1 | Sumitomo 8100-2980 | Sumitomo 7165-0400 | 1116657-00-B | |
| 2 | RD/GN | 0.5 | SN | X053-12 | Sumitomo 8100-0467 | Sumitomo 7165-0346 | 1099528-00-B | |
| 3 | BK | 5 | SN | G510-1 | Sumitomo 8100-2980 | Sumitomo 7165-0400 | 1116657-00-B |
