X083 - s-rhd-sop10

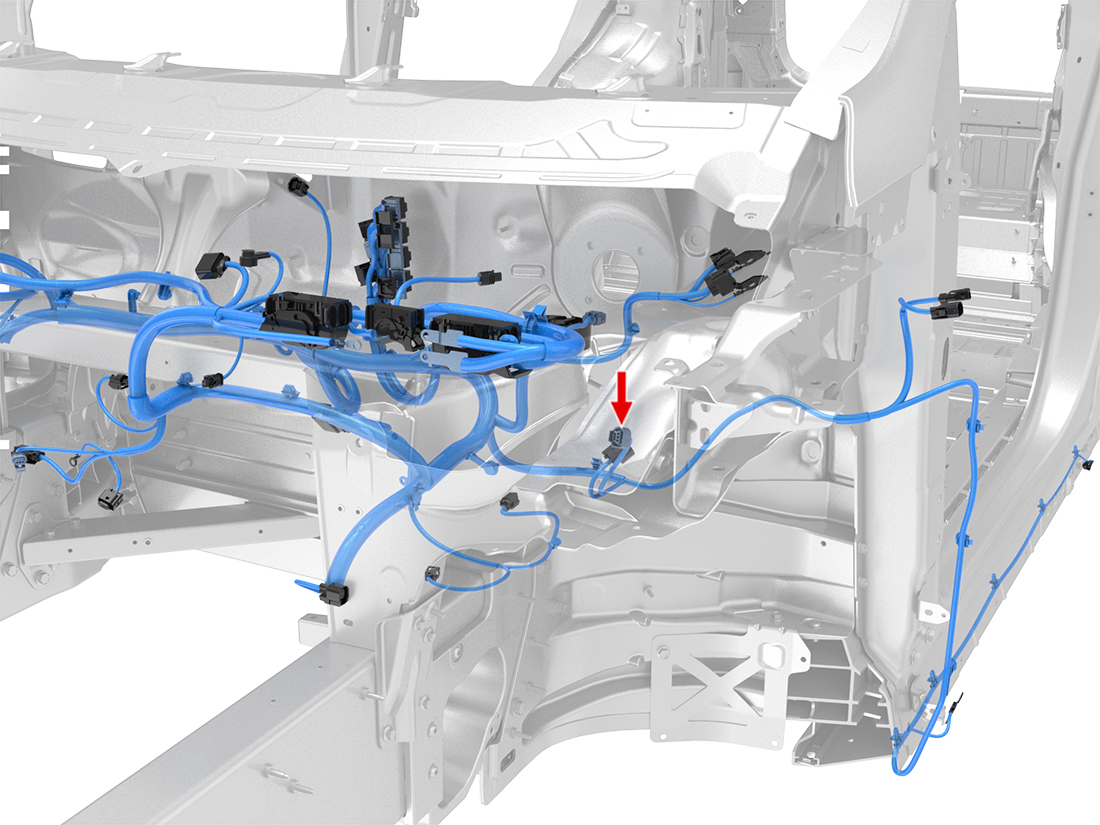

Location:
Location:
Connector Detail: AMP 184000-1
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: FEP 42511400
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | WH | 0.5 | SN | X050-12 | AMP 184095-2 | AMP 184139-1 | 1099449-00-B | |
| 2 | WH/BU | 0.5 | SN | X050-3 | AMP 184095-2 | AMP 184139-1 | 1099449-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK/GY | 0.35 | AU | X080-34 | AMP 1564324-2 | AMP 1718705-1 | 1099428-00-B | |
| 2 | GY | 0.35 | AU | X080-33 | AMP 1564324-2 | AMP 1718705-1 | 1099428-00-B | |
| 3 | RD | 0.35 | AU | X080-13 | AMP 1564324-2 | AMP 1718705-1 | 1099428-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK/GY | 0.35 | AU | X080-34 | AMP 1564324-2 | AMP 1718705-1 | 1099428-00-B | |
| 2 | GY | 0.35 | AU | X080-33 | AMP 1564324-2 | AMP 1718705-1 | 1099428-00-B | |
| 3 | RD | 0.35 | AU | X080-13 | AMP 1564324-2 | AMP 1718705-1 | 1099428-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | WH | 0.5 | SN | X050-12 | AMP 184095-2 | AMP 184139-1 | 1099449-00-B | |
| 2 | WH/BU | 0.5 | SN | X050-3 | AMP 184095-2 | AMP 184139-1 | 1099449-00-B |
