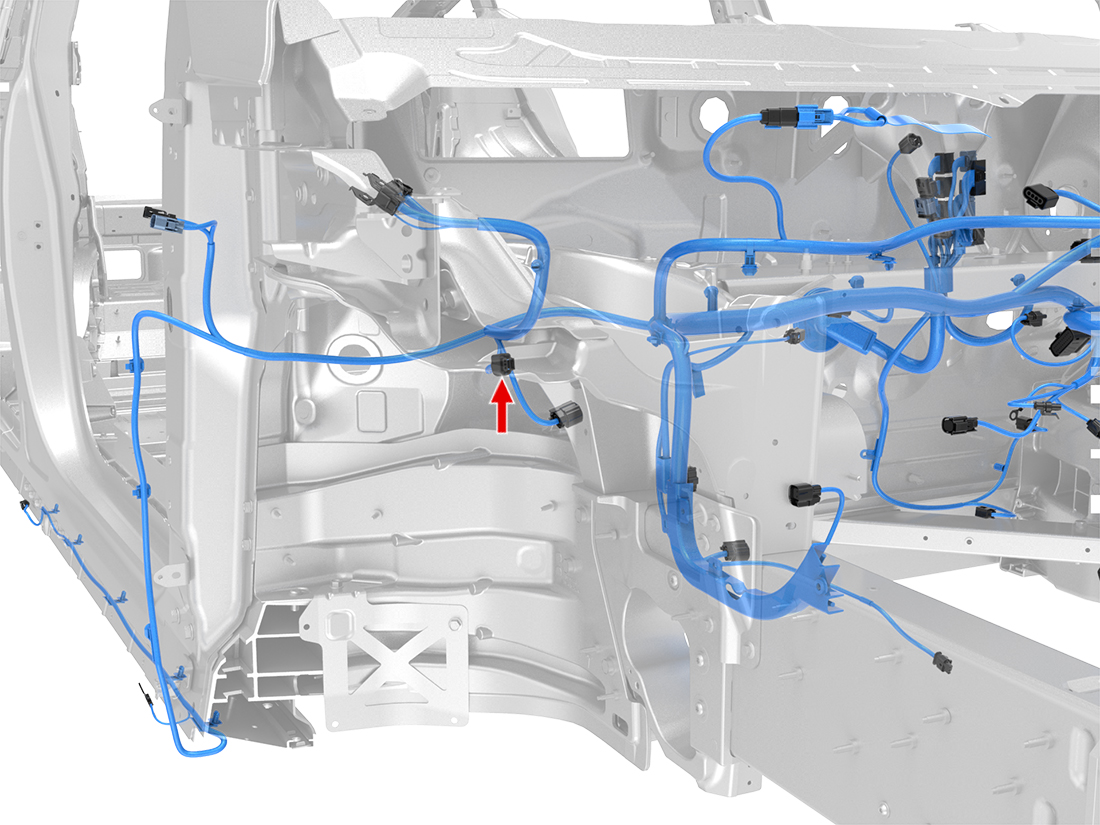

Location:
Connector Detail: FEP 42511400
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BK/WH | 0.35 | AU | X080-17 | AMP 1564324-2 | AMP 1718705-1 | 1099428-00-B | |
| 2 | WH | 0.35 | AU | X080-16 | AMP 1564324-2 | AMP 1718705-1 | 1099428-00-B | |
| 3 | RD/WH | 0.35 | AU | X080-1 | AMP 1564324-2 | AMP 1718705-1 | 1099428-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BK/WH | 0.35 | AU | X080-17 | AMP 1564324-2 | AMP 1718705-1 | 1099428-00-B | |
| 2 | WH | 0.35 | AU | X080-16 | AMP 1564324-2 | AMP 1718705-1 | 1099428-00-B | |
| 3 | RD/WH | 0.35 | AU | X080-1 | AMP 1564324-2 | AMP 1718705-1 | 1099428-00-B | |
