X085 - s-rhd-sop10

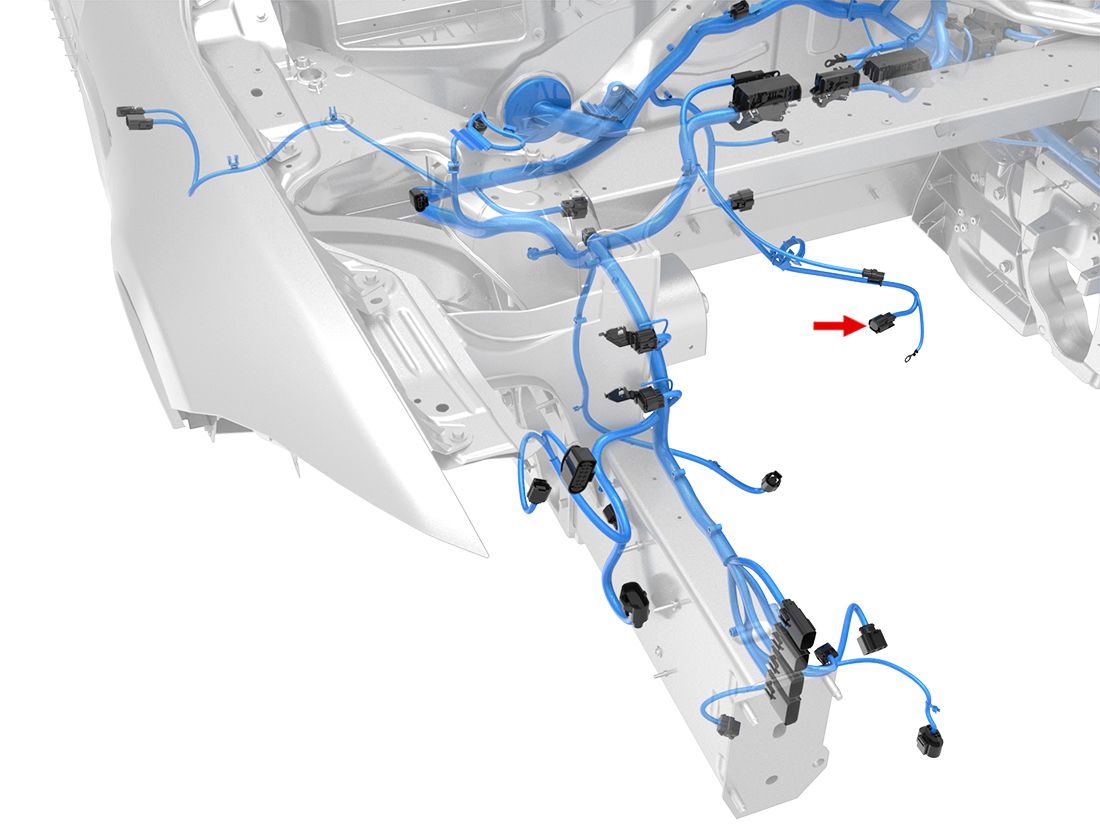

Location:

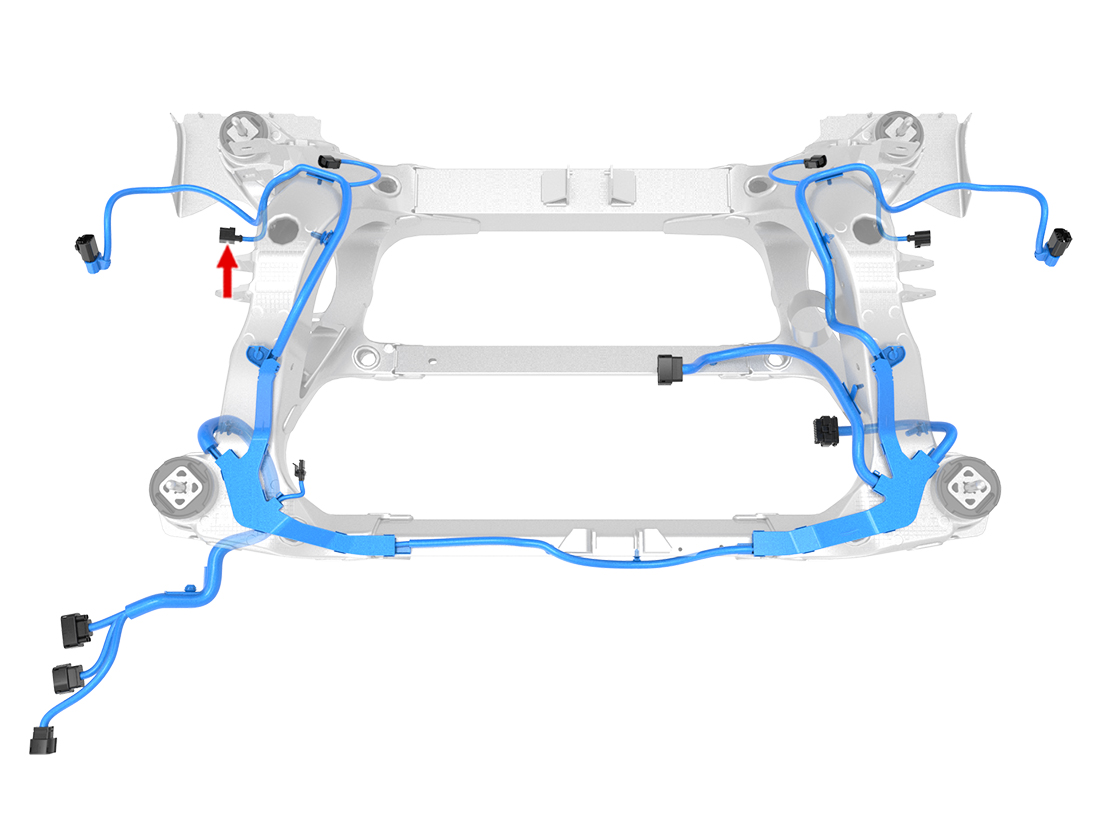

Location:
Connector Detail: Molex 33472-0401
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: FEP 42511400
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/GN | 0.5 | SN | X050-18 | Molex 33012-3003 | Tesla MAT-140-240 | 1099518-00-A | 1116485-00-A |
| 2 | RD/WH | 0.5 | SN | Z9-+CNP05-R | Molex 33012-3003 | Tesla MAT-140-240 | 1099518-00-A | 1116485-00-A |
| 3 | RD | 0.5 | SN | Z10-+CNP06-R | Molex 33012-3003 | Tesla MAT-140-240 | 1099518-00-A | 1116485-00-A |
| 4 | BK | 0.5 | SN | G510-1 | Molex 33012-3003 | Tesla MAT-140-240 | 1099518-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | 0.5 | AU | X953F-3 | AMP 1241380-2 | AMP 964971-1 | 1099428-00-B | |
| 2 | GN | 0.5 | AU | X953F-2 | AMP 1241380-2 | AMP 964971-1 | 1099428-00-B | |
| 3 | RD/GN | 0.5 | AU | X953F-1 | AMP 1241380-2 | AMP 964971-1 | 1099428-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | 0.5 | AU | X953F-3 | AMP 1241380-2 | AMP 964971-1 | 1099428-00-B | |
| 2 | GN | 0.5 | AU | X953F-2 | AMP 1241380-2 | AMP 964971-1 | 1099428-00-B | |
| 3 | RD/GN | 0.5 | AU | X953F-1 | AMP 1241380-2 | AMP 964971-1 | 1099428-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/GN | 0.5 | SN | X050-18 | Molex 33012-3003 | Tesla MAT-140-240 | 1099518-00-A | 1116485-00-A |
| 2 | RD/WH | 0.5 | SN | Z9-+CNP05-L | Molex 33012-3003 | Tesla MAT-140-240 | 1099518-00-A | 1116485-00-A |
| 3 | RD | 0.5 | SN | Z10-+CNP06-R | Molex 33012-3003 | Tesla MAT-140-240 | 1099518-00-A | 1116485-00-A |
| 4 | BK | 0.5 | SN | G510-1 | Molex 33012-3003 | Tesla MAT-140-240 | 1099518-00-A | 1116485-00-A |
