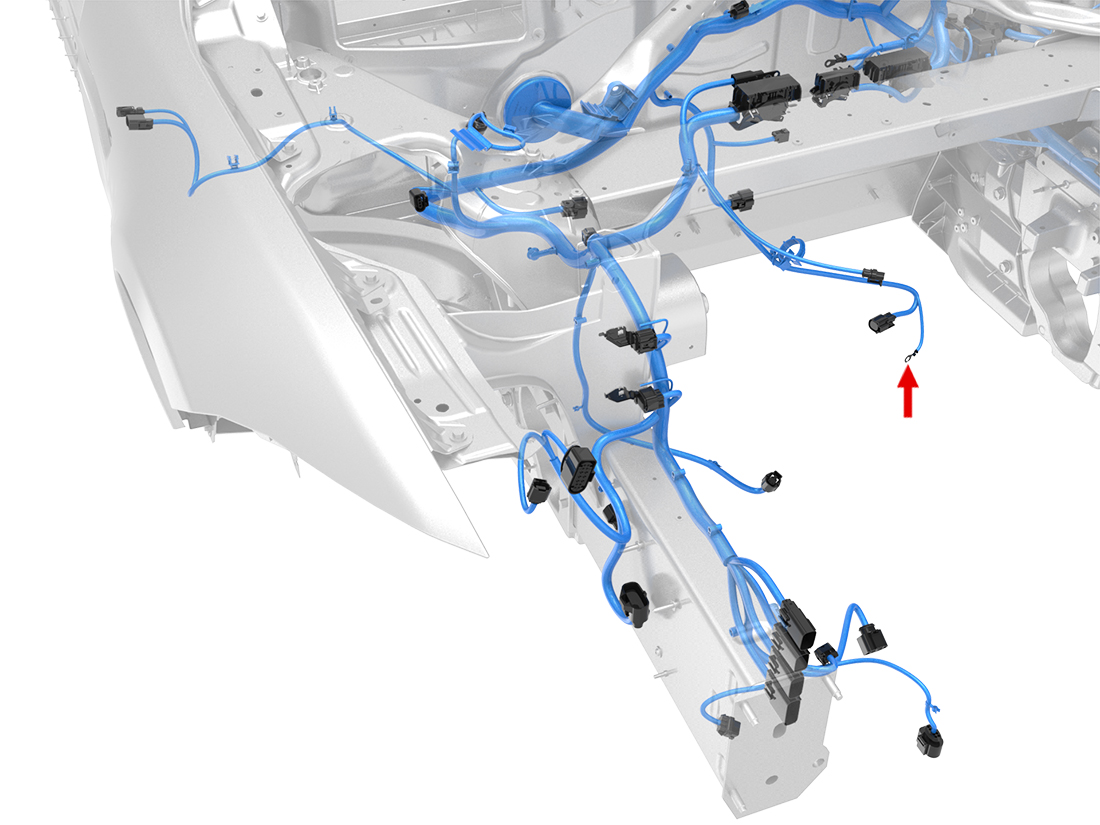

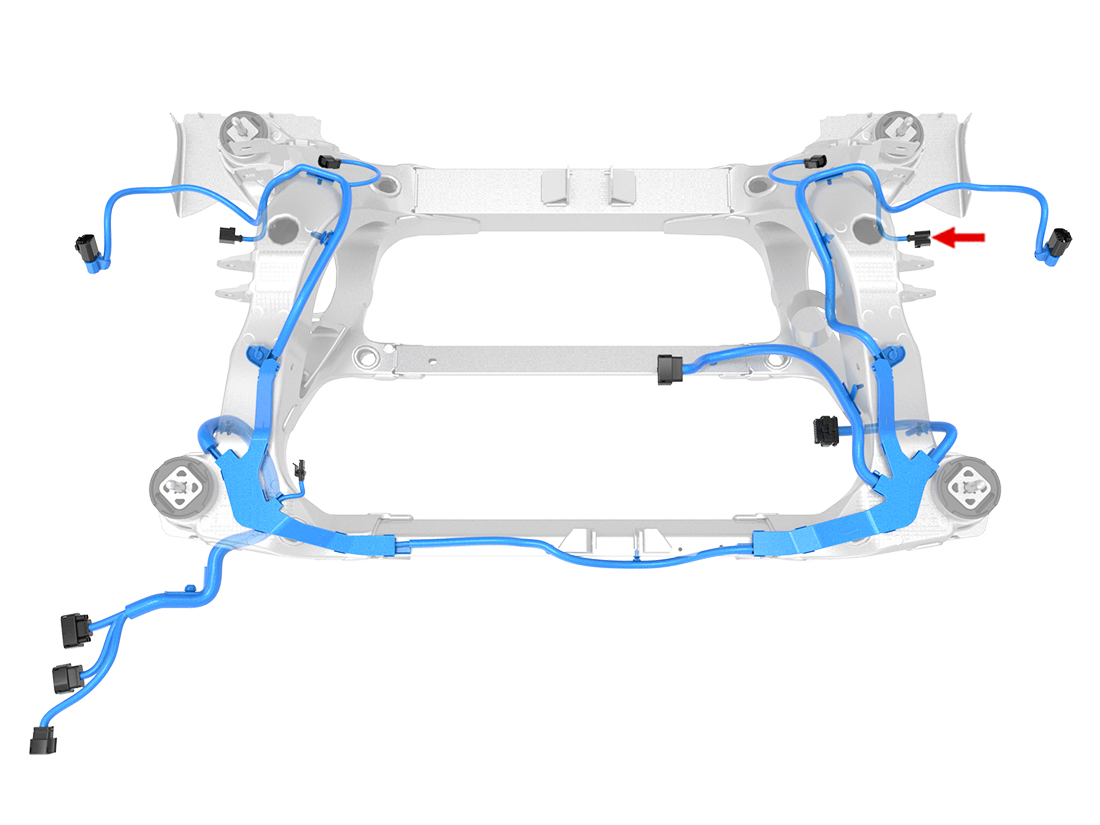

X086 - s-rhd-sop10
Location:
Location:
Connector Detail: FEP 42511400
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Yazaki 7009-1333-02
Color: SN
Serviceability: Not Serviceable
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | BK | 3 | SN | G510-1 | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK/VT | 0.5 | AU | X953F-9 | AMP 1241380-2 | AMP 964971-1 | 1099428-00-B | |
| 2 | BN | 0.5 | AU | X953F-8 | AMP 1241380-2 | AMP 964971-1 | 1099428-00-B | |
| 3 | RD/VT | 0.5 | AU | X953F-7 | AMP 1241380-2 | AMP 964971-1 | 1099428-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK/VT | 0.5 | AU | X953F-9 | AMP 1241380-2 | AMP 964971-1 | 1099428-00-B | |
| 2 | BN | 0.5 | AU | X953F-8 | AMP 1241380-2 | AMP 964971-1 | 1099428-00-B | |
| 3 | RD/VT | 0.5 | AU | X953F-7 | AMP 1241380-2 | AMP 964971-1 | 1099428-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | BK | 3 | SN | G510-1 | - |
