X086A - s-rhd-sop10

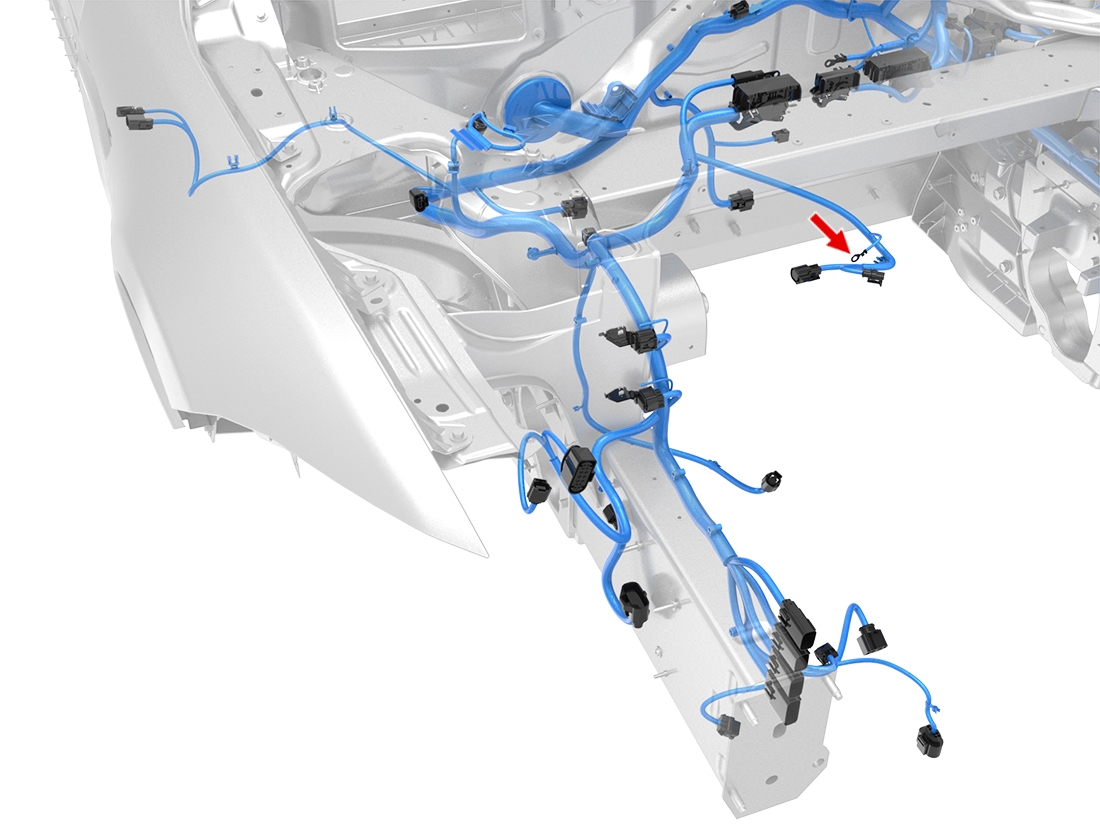

Location:
Connector Detail: Yazaki 7009-1333-02
Color: SN
Serviceability: Not Serviceable
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | BK | 3 | SN | G510-1 | - |
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | BK | 3 | SN | G510-1 | - |
2012-2020 Model S Connector Reference
