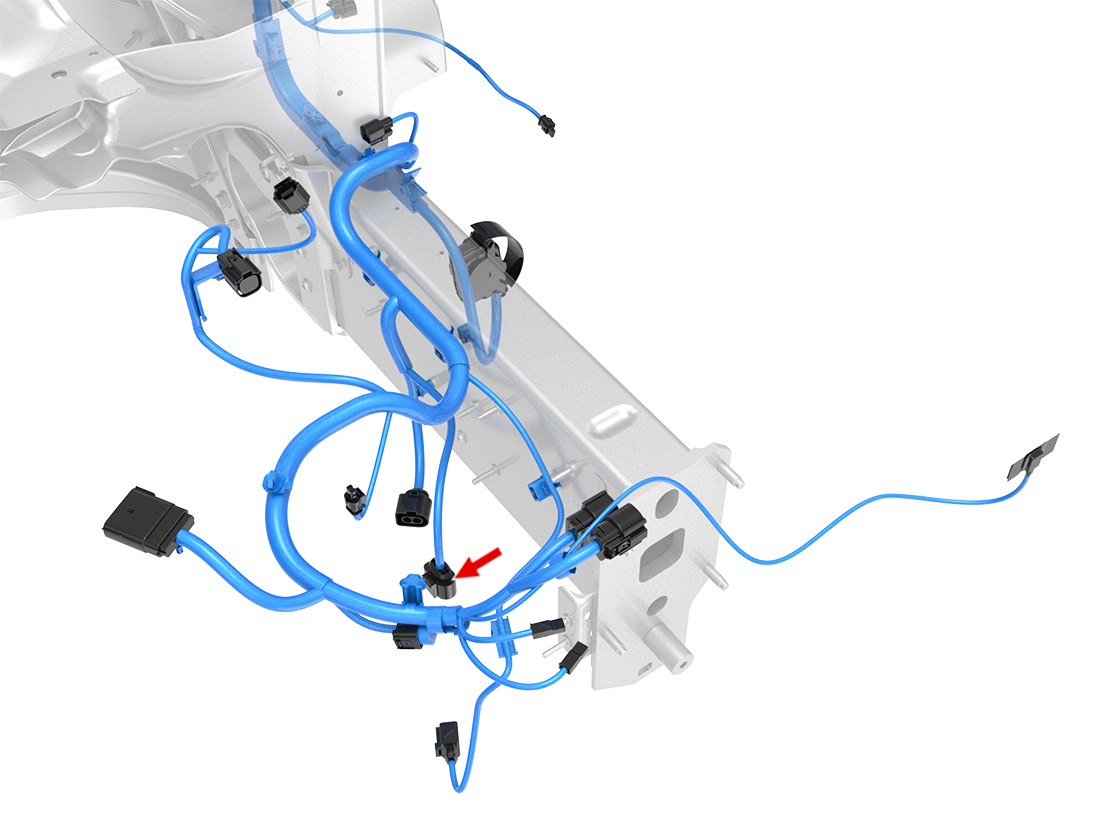

X087 - s-rhd-sop10
Location:
Location:
Connector Detail: FEP 42122600
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: AMP 936119-2
Color: Yellow
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | 0.5 | SN | G640-1 | AMP 5-963715-1 | 1099458-00-A | ||
| 2 | VT | 0.35 | SN | X776-12 | AMP 5-928999-1 | 1099455-00-B | ||
| 3 | VT/WH | 0.35 | SN | X776-1 | AMP 5-928999-1 | 1099455-00-B | ||
| 4 | RD/WH | 0.5 | SN | X578-6 | AMP 5-963715-1 | 1099458-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.35 | SN | X081-8 | AMP 969005-2 | AMP 1718705-1 | 1099471-00-B | |
| 2 | WH | 0.35 | SN | X081-9 | AMP 969005-2 | AMP 1718705-1 | 1099471-00-B | |
| 3 | GN | 0.35 | SN | X081-16 | AMP 969005-2 | AMP 1718705-1 | 1099471-00-B | |
| 4 | YE | 0.35 | SN | X081-6 | AMP 969005-2 | AMP 1718705-1 | 1099471-00-B | |
| 5 | GY | 0.35 | SN | X081-14 | AMP 969005-2 | AMP 1718705-1 | 1099471-00-B | |
| 6 | GY/WH | 0.35 | SN | X081-11 | AMP 969005-2 | AMP 1718705-1 | 1099471-00-B | |
| 7 | BK/GY | 0.35 | SN | X080-22 | AMP 969005-2 | AMP 1718705-1 | 1099471-00-B | |
| 8 | BU | 0.35 | SN | X081-7 | AMP 969005-2 | AMP 1718705-1 | 1099471-00-B | |
| 9 | VT | 0.35 | SN | X080-23 | AMP 969005-2 | AMP 1718705-1 | 1099471-00-B | |
| 10 | GY | 0.35 | SN | X080-8 | AMP 969005-2 | AMP 1718705-1 | 1099471-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.35 | SN | X081-8 | AMP 969005-2 | AMP 1718705-1 | 1099471-00-B | |
| 2 | WH | 0.35 | SN | X081-9 | AMP 969005-2 | AMP 1718705-1 | 1099471-00-B | |
| 3 | GN | 0.35 | SN | X081-16 | AMP 969005-2 | AMP 1718705-1 | 1099471-00-B | |
| 4 | YE | 0.35 | SN | X081-6 | AMP 969005-2 | AMP 1718705-1 | 1099471-00-B | |
| 5 | GY | 0.35 | SN | X081-14 | AMP 969005-2 | AMP 1718705-1 | 1099471-00-B | |
| 6 | GY/WH | 0.35 | SN | X081-11 | AMP 969005-2 | AMP 1718705-1 | 1099471-00-B | |
| 7 | BK/GY | 0.35 | SN | X080-22 | AMP 969005-2 | AMP 1718705-1 | 1099471-00-B | |
| 8 | BU | 0.35 | SN | X081-7 | AMP 969005-2 | AMP 1718705-1 | 1099471-00-B | |
| 9 | VT | 0.35 | SN | X080-23 | AMP 969005-2 | AMP 1718705-1 | 1099471-00-B | |
| 10 | GY | 0.35 | SN | X080-8 | AMP 969005-2 | AMP 1718705-1 | 1099471-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | 0.5 | SN | G640-1 | AMP 5-963715-1 | 1099458-00-A | ||
| 2 | VT | 0.35 | SN | X776-12 | AMP 5-928999-1 | 1099455-00-B | ||
| 3 | VT/WH | 0.35 | SN | X776-1 | AMP 5-928999-1 | 1099455-00-B | ||
| 4 | RD/WH | 0.5 | SN | X578-6 | AMP 5-963715-1 | 1099458-00-A |
