X089A - s-rhd-sop10

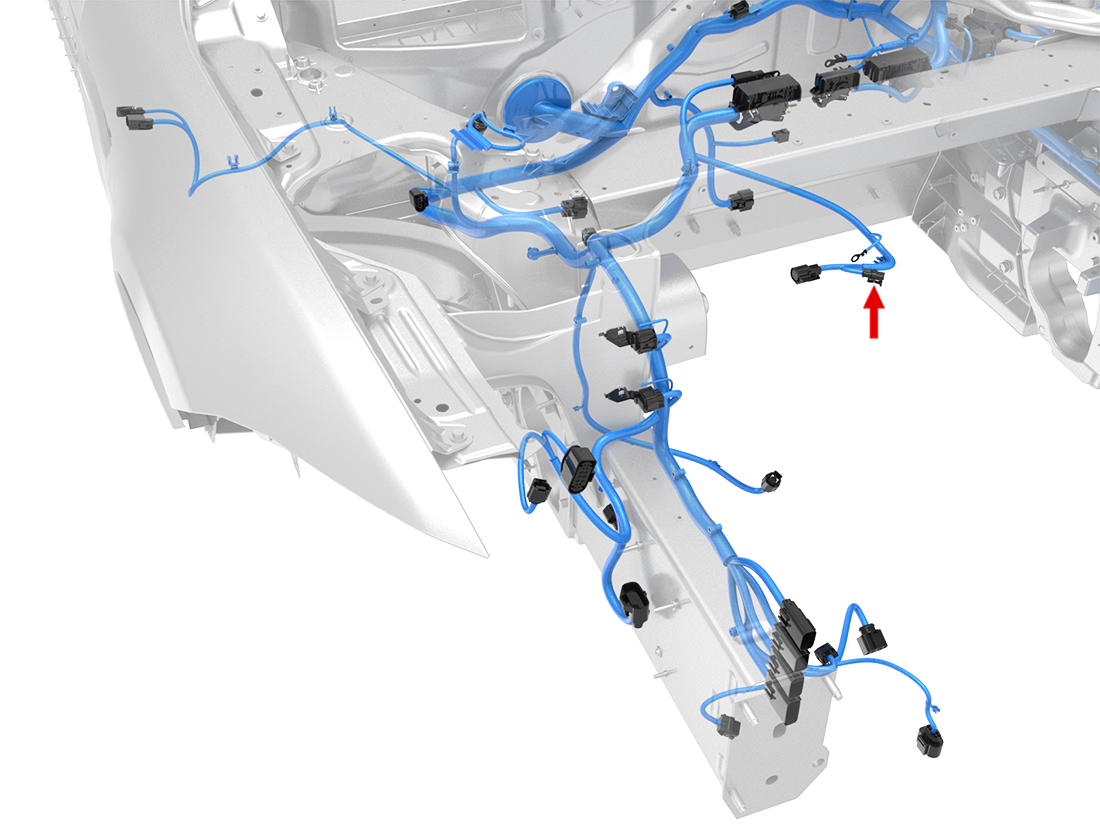

Location:
Connector Detail: AMP 282080-1
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU/WH | 0.5 | SN | X051-1 | AMP 282403-1 | AMP 281934-4 | 1099453-00-B | |
| 2 | BK | 0.5 | SN | G520-1 | AMP 282403-1 | AMP 281934-4 | 1099453-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU/WH | 0.5 | SN | X051-1 | AMP 282403-1 | AMP 281934-4 | 1099453-00-B | |
| 2 | BK | 0.5 | SN | G520-1 | AMP 282403-1 | AMP 281934-4 | 1099453-00-B |
