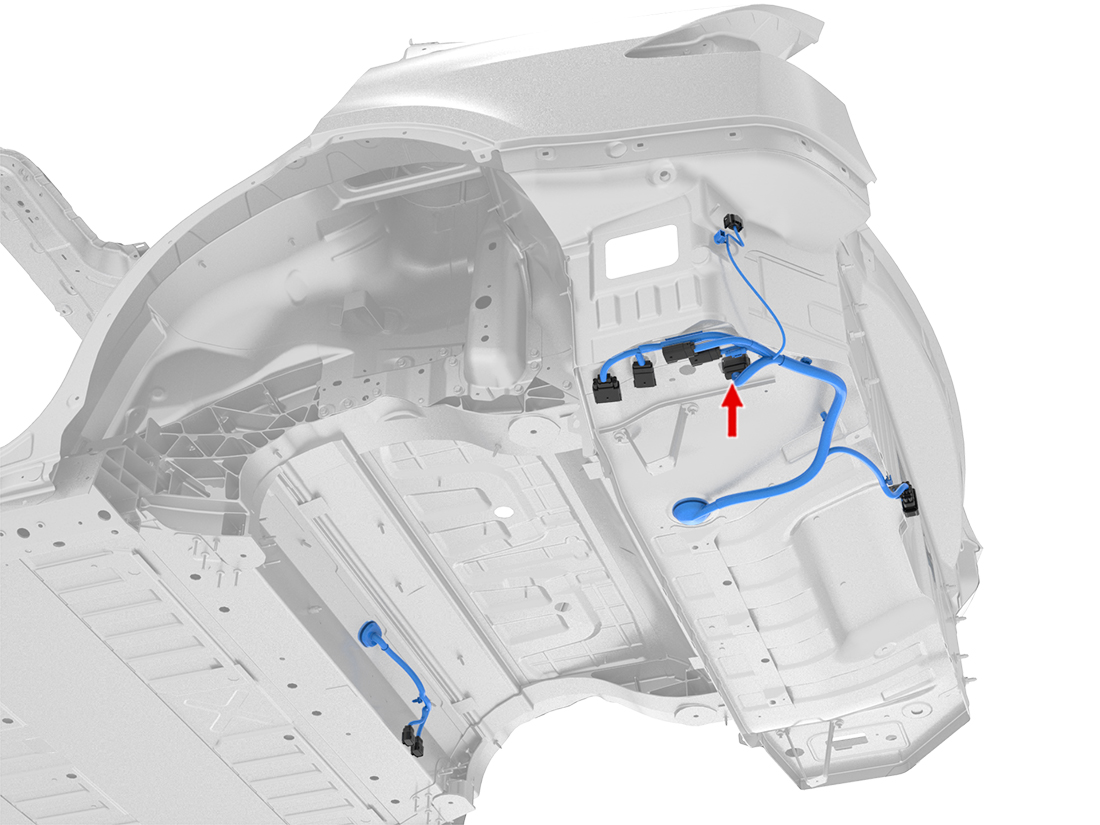

Location:
Connector Detail: MOLEX 33472-2001
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD | 0.5 | SN | X023-5 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 2 | BU | 0.5 | SN | X104-5 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 2 | BU | 0.5 | SN | X105-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 3 | YE | 0.5 | SN | X537-10 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 4 | RD | 0.5 | SN | X702-20 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 4 | RD | 0.5 | SN | X702A-20 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 5 | VT | 0.5 | SN | X106-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 6 | GN | 0.5 | SN | X098-4 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 8 | GN | 0.5 | SN | X104-6 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 9 | BN/WH | 0.35 | SN | X104-7 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 11 | BK | 0.5 | SN | GND_LR-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 12 | VT/WH | 0.5 | SN | X951M-8 | MOLEX 33012-3003 | | 1099518-00-A | 1116485-00-A |
| 13 | YE | 0.5 | SN | X951M-15 | MOLEX 33012-3003 | | 1099518-00-A | 1116485-00-A |
| 14 | RD/WH | 0.5 | SN | X702-9 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 14 | RD/WH | 0.5 | SN | X702A-9 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 15 | WH | 0.35 | SN | X104-4 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 15 | WH | 0.5 | SN | X106-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 16 | GY | 0.5 | SN | X098-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 19 | BN | 0.35 | SN | X104-8 | MOLEX 33012-3003 | | 1099518-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD | 0.5 | SN | X023-5 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 2 | BU | 0.5 | SN | X104-5 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 2 | BU | 0.5 | SN | X105-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 3 | YE | 0.5 | SN | X537-10 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 4 | RD | 0.5 | SN | X702-20 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 4 | RD | 0.5 | SN | X702A-20 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 5 | VT | 0.5 | SN | X106-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 6 | GN | 0.5 | SN | X098-4 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 8 | GN | 0.5 | SN | X104-6 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 9 | BN/WH | 0.35 | SN | X104-7 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 11 | BK | 0.5 | SN | GND_LR-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 12 | VT/WH | 0.5 | SN | X951M-8 | MOLEX 33012-3003 | | 1099518-00-A | 1116485-00-A |
| 13 | YE | 0.5 | SN | X951M-15 | MOLEX 33012-3003 | | 1099518-00-A | 1116485-00-A |
| 14 | RD/WH | 0.5 | SN | X702-9 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 14 | RD/WH | 0.5 | SN | X702A-9 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 15 | WH | 0.35 | SN | X104-4 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 15 | WH | 0.5 | SN | X106-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 16 | GY | 0.5 | SN | X098-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 19 | BN | 0.35 | SN | X104-8 | MOLEX 33012-3003 | | 1099518-00-A | 1116485-00-A |
