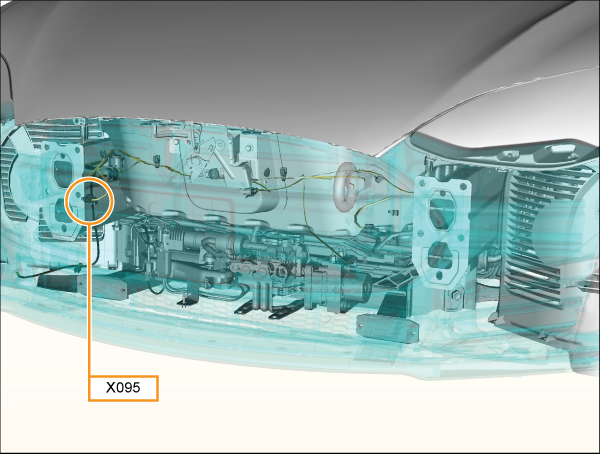

Location:
Connector Detail: Hirschmann 805-122-541
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BK | 0.5 | SN | Z71-+GDB01-R | AMP 7-1452668-1 | AMP 967067-1 | 1099461-00-C | |
| 2 | GN | 0.35 | SN | Z41-HVC25-R | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 3 | RD/BU | 0.5 | SN | Z56-PHC16_C-R | AMP 7-1452668-1 | AMP 967067-1 | 1099461-00-C | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BK | 0.5 | SN | Z71-+GDB01-R | AMP 7-1452668-1 | AMP 967067-1 | 1099461-00-C | |
| 2 | GN | 0.35 | SN | Z41-HVC25-R | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 3 | RD/BU | 0.5 | SN | Z56-PHC16_C-R | AMP 7-1452668-1 | AMP 967067-1 | 1099461-00-C | |
