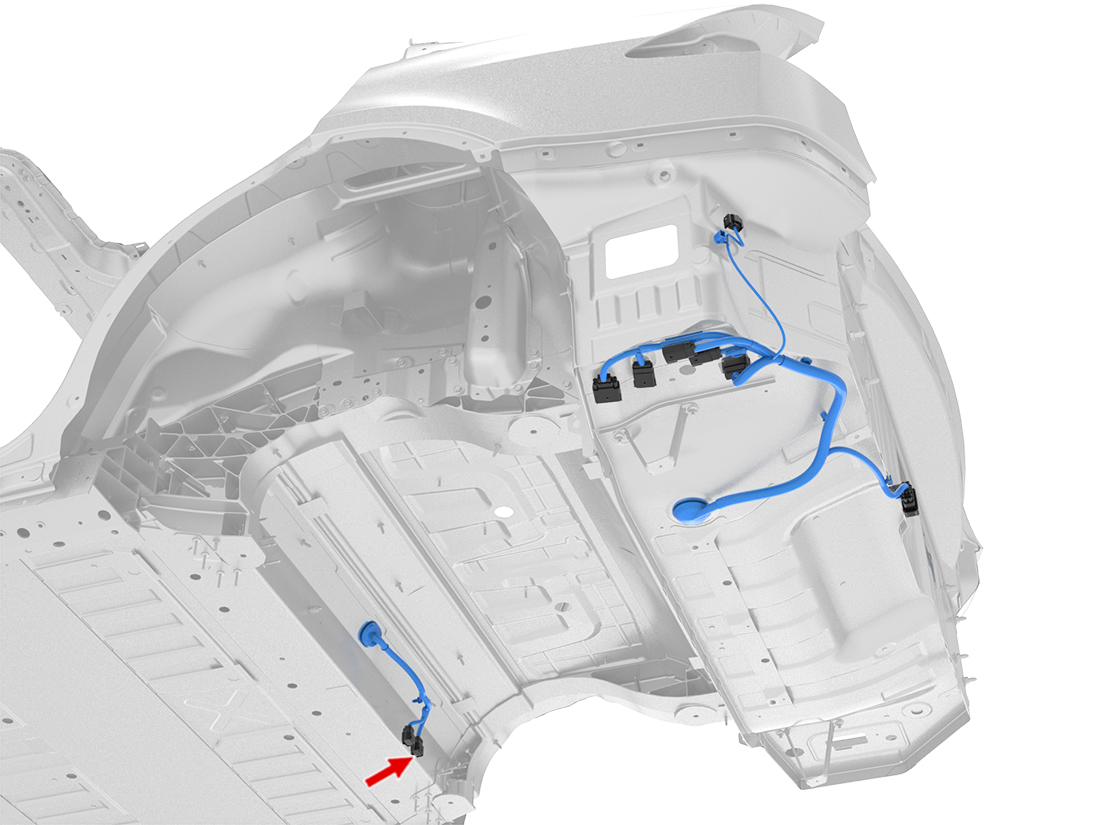

Location:
Connector Detail: MOLEX 33472-1201
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GY | 0.5 | SN | X090-16 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 2 | RD/WH | 0.5 | SN | X021-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 4 | GN | 0.5 | SN | X090-6 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 5 | RD | 0.75 | SN | X700-4 | MOLEX 33012-3002 | TESLA MAT-120-240 | 1099517-00-A | 1116485-00-A |
| 9 | RD/BK | 0.5 | SN | X910M-10 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 10 | YE | 0.5 | SN | X913M-12 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 12 | BK | 0.5 | SN | GND_C2-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GY | 0.5 | SN | X090-16 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 2 | RD/WH | 0.5 | SN | X021-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 4 | GN | 0.5 | SN | X090-6 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 5 | RD | 0.75 | SN | X700-4 | MOLEX 33012-3002 | TESLA MAT-120-240 | 1099517-00-A | 1116485-00-A |
| 9 | RD/BK | 0.5 | SN | X910M-10 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 10 | YE | 0.5 | SN | X913M-12 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 12 | BK | 0.5 | SN | GND_C2-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
