X099 - s-rhd-sop10

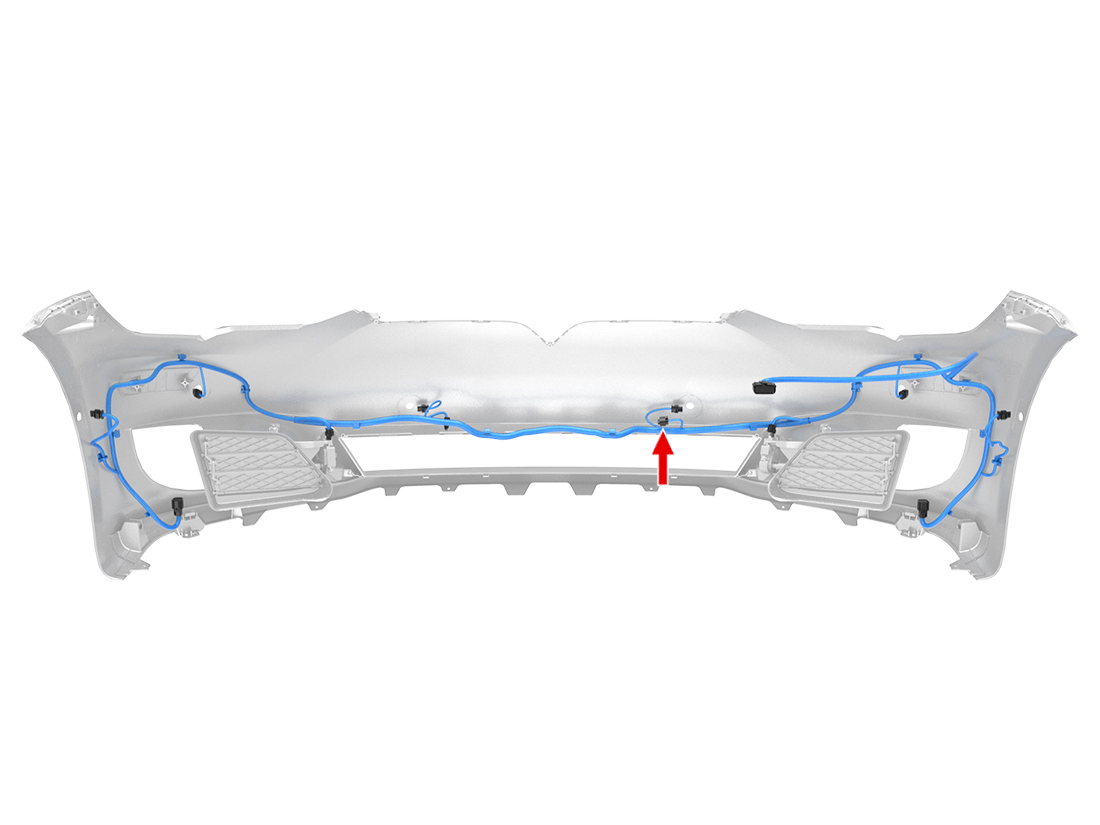

Location:
Location:
Connector Detail: AMP 2-967642-1
Color: Gray
Serviceability: Terminal Pigtail
Connector Detail: MOLEX 33472-1202
Color: Gray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/BU | 0.5 | SN | Z50-PHC16_E-L | AMP 5-965906-1 | AMP 967067-1 | 1099460-00-C | |
| 2 | BK | 0.5 | SN | Z45-+GDA07-L | AMP 5-965906-1 | AMP 967067-1 | 1099460-00-C | |
| 3 | GN | 0.5 | SN | Z6-HVC25-L | AMP 5-965906-1 | AMP 967067-1 | 1099460-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 2 | RD | 0.5 | SN | X021-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 3 | RD | 0.5 | SN | X104-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 3 | RD | 0.5 | SN | X105-6 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 4 | RD/WH | 0.5 | SN | X104-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 4 | RD/WH | 0.5 | SN | X105-3 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 5 | GY | 0.75 | SN | X700-5 | MOLEX 33012-3002 | TESLA MAT-120-240 | 1099517-00-A | 1116485-00-A |
| 6 | WH | 0.5 | SN | X021-3 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 7 | GN/WH | 0.5 | SN | X924M-12 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 9 | RD | 0.5 | SN | X702-22 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 9 | RD | 0.5 | SN | X702A-22 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 10 | RD/WH | 0.5 | SN | X702-11 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 10 | RD/WH | 0.5 | SN | X702A-11 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 11 | YE/WH | 0.5 | SN | X951M-7 | MOLEX 33012-3003 | 1099518-00-A | 1116485-00-A | |
| 12 | BK | 0.5 | SN | GND_C2-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 2 | RD | 0.5 | SN | X021-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 3 | RD | 0.5 | SN | X104-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 3 | RD | 0.5 | SN | X105-6 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 4 | RD/WH | 0.5 | SN | X104-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 4 | RD/WH | 0.5 | SN | X105-3 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 5 | GY | 0.75 | SN | X700-5 | MOLEX 33012-3002 | TESLA MAT-120-240 | 1099517-00-A | 1116485-00-A |
| 6 | WH | 0.5 | SN | X021-3 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 7 | GN/WH | 0.5 | SN | X924M-12 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 9 | RD | 0.5 | SN | X702-22 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 9 | RD | 0.5 | SN | X702A-22 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 10 | RD/WH | 0.5 | SN | X702-11 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 10 | RD/WH | 0.5 | SN | X702A-11 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 11 | YE/WH | 0.5 | SN | X951M-7 | MOLEX 33012-3003 | 1099518-00-A | 1116485-00-A | |
| 12 | BK | 0.5 | SN | GND_C2-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/BU | 0.5 | SN | Z50-PHC16_E-L | AMP 5-965906-1 | AMP 967067-1 | 1099460-00-C | |
| 2 | BK | 0.5 | SN | Z45-+GDA07-L | AMP 5-965906-1 | AMP 967067-1 | 1099460-00-C | |
| 3 | GN | 0.5 | SN | Z6-HVC25-L | AMP 5-965906-1 | AMP 967067-1 | 1099460-00-C |
