X101 - s-rhd-sop10

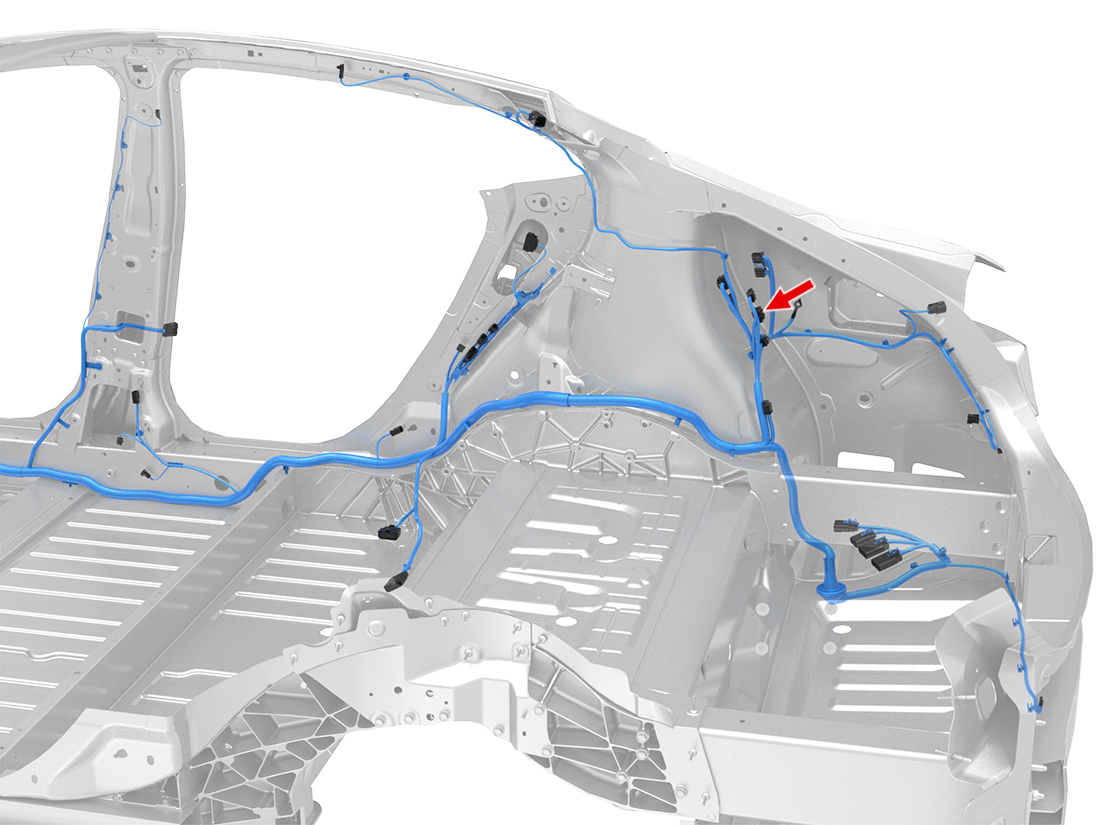

Location:

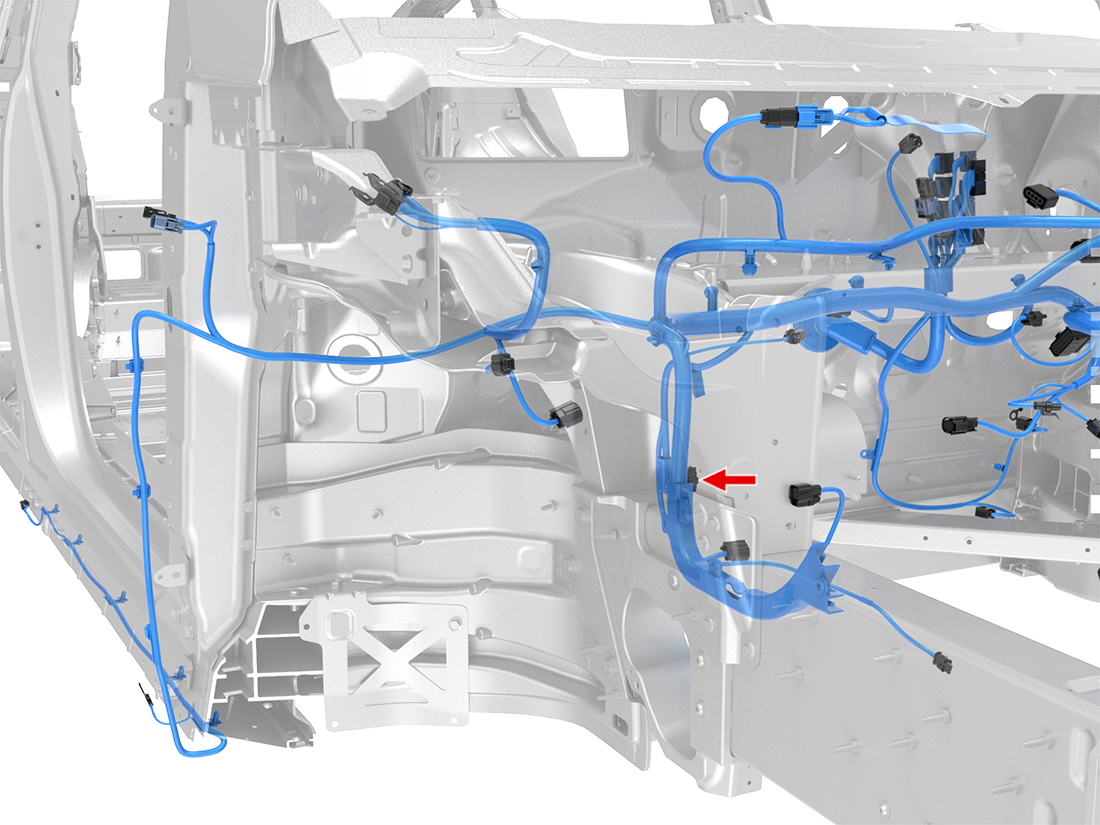

Location:
Connector Detail: Molex 31372-1100
Color: LightGray
Serviceability: Terminal Pigtail
Connector Detail: Molex 33472-1201
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | 2 | SN | G700-1 | Molex 33012-3001 | 1099515-00-A | 1116485-00-A | |
| 3 | BK/WH | 2 | SN | X930M-8 | Molex 33012-3001 | 1099515-00-A | 1116485-00-A | |
| 4 | GY | 2 | SN | X930M-1 | Molex 33012-3001 | 1099515-00-A | 1116485-00-A | |
| 5 | RD/WH | 2 | SN | X930M-7 | Molex 33012-3001 | 1099515-00-A | 1116485-00-A | |
| 6 | RD/VT | 2 | SN | X930M-14 | Molex 33012-3001 | 1099515-00-A | 1116485-00-A | |
| 7 | BK | 2 | SN | G700-1 | AMP 1326030-3 | 1099433-00-A | ||
| 8 | RD/GY | 2 | SN | X979F-7 | AMP 1326030-3 | 1099433-00-A | ||
| 9 | RD/WH | 2 | SN | X574-3 | AMP 1326030-3 | 1099433-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/BK | 0.5 | SN | X752-13 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 2 | RD/WH | 0.5 | SN | X750-9 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 3 | RD | 0.5 | SN | X750-20 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 8 | YE | 0.5 | SN | X112-11 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 9 | YE | 0.5 | SN | X913F-12 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/BK | 0.5 | SN | X752-13 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 2 | RD/WH | 0.5 | SN | X750-9 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 3 | RD | 0.5 | SN | X750-20 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 8 | YE | 0.5 | SN | X112-11 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 9 | YE | 0.5 | SN | X913F-12 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | 2 | SN | G700-1 | Molex 33012-3001 | 1099515-00-A | 1116485-00-A | |
| 3 | BK/WH | 2 | SN | X930M-8 | Molex 33012-3001 | 1099515-00-A | 1116485-00-A | |
| 4 | GY | 2 | SN | X930M-1 | Molex 33012-3001 | 1099515-00-A | 1116485-00-A | |
| 5 | RD/WH | 2 | SN | X930M-7 | Molex 33012-3001 | 1099515-00-A | 1116485-00-A | |
| 6 | RD/VT | 2 | SN | X930M-14 | Molex 33012-3001 | 1099515-00-A | 1116485-00-A | |
| 7 | BK | 2 | SN | G700-1 | AMP 1326030-3 | 1099433-00-A | ||
| 8 | RD/GY | 2 | SN | X979F-7 | AMP 1326030-3 | 1099433-00-A | ||
| 9 | RD/WH | 2 | SN | X574-3 | AMP 1326030-3 | 1099433-00-A |
