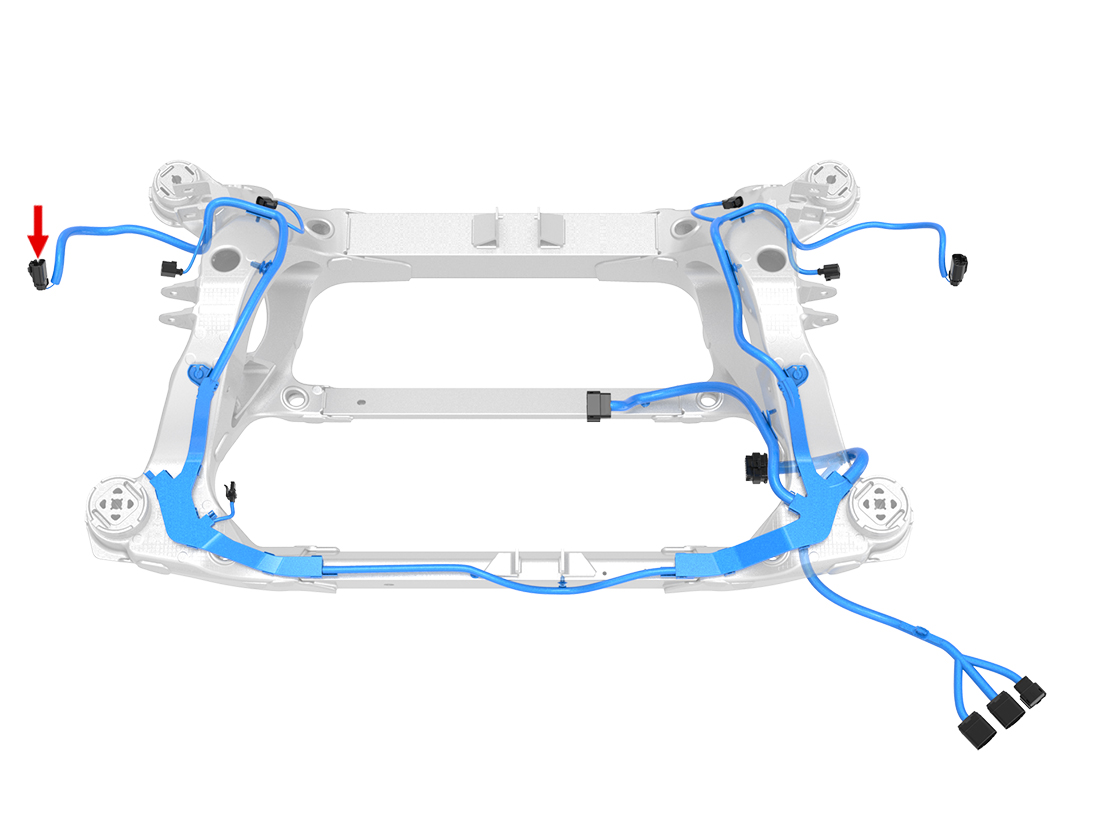

Location:
Connector Detail: FCI 54200409
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BK/WH | 2 | SN | X930F-8 | FCI 54001400 | Tesla MAT-170-409 | 1102108-00-B | |
| 2 | WH | 0.75 | SN | X930F-2 | FCI 54001800 | Tesla MAT-170-409 | 1102111-00-B | |
| 3 | OG | 0.75 | SN | X930F-9 | FCI 54001800 | Tesla MAT-170-409 | 1102111-00-B | |
| 4 | GY | 2 | SN | X930F-1 | FCI 54001400 | Tesla MAT-170-409 | 1102108-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BK/WH | 2 | SN | X930F-8 | FCI 54001400 | Tesla MAT-170-409 | 1102108-00-B | |
| 2 | WH | 0.75 | SN | X930F-2 | FCI 54001800 | Tesla MAT-170-409 | 1102111-00-B | |
| 3 | OG | 0.75 | SN | X930F-9 | FCI 54001800 | Tesla MAT-170-409 | 1102111-00-B | |
| 4 | GY | 2 | SN | X930F-1 | FCI 54001400 | Tesla MAT-170-409 | 1102108-00-B | |
