X104 - s-rhd-sop10

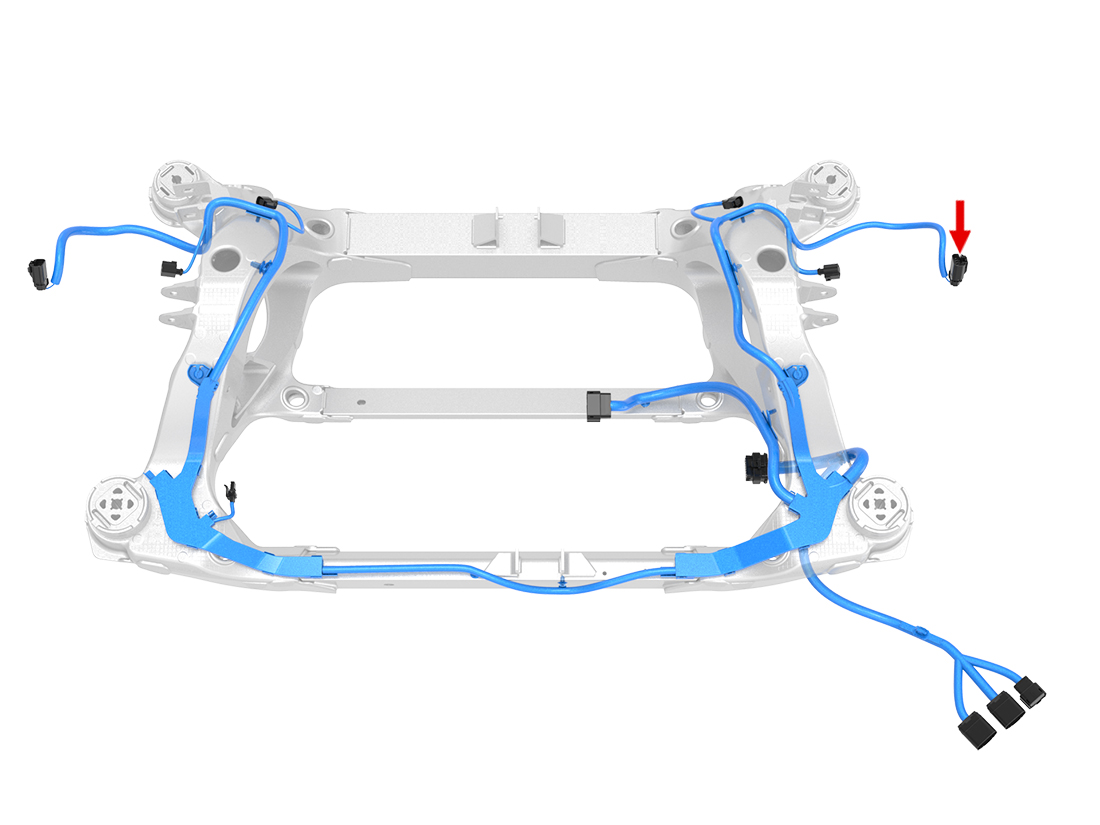

Location:
Location:
Connector Detail: AMP 1452349-1
Color: WH
Serviceability: Terminal Pigtail
Connector Detail: FCI 54200409
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/VT | 2 | SN | X930F-14 | FCI 54001400 | Tesla MAT-170-409 | 1102108-00-B | |
| 2 | BU/WH | 0.75 | SN | X930F-6 | FCI 54001800 | Tesla MAT-170-409 | 1102111-00-B | |
| 3 | VT/WH | 0.75 | SN | X930F-13 | FCI 54001800 | Tesla MAT-170-409 | 1102111-00-B | |
| 4 | RD/WH | 2 | SN | X930F-7 | FCI 54001400 | Tesla MAT-170-409 | 1102108-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.5 | SN | X099-3 | AMP 5-963715-1 | 1099458-00-A | ||
| 2 | RD/WH | 0.5 | SN | X099-4 | AMP 5-963715-1 | 1099458-00-A | ||
| 4 | WH | 0.35 | SN | X090-15 | AMP 5-928999-1 | 1099455-00-B | ||
| 5 | BU | 0.5 | SN | X090-2 | AMP 5-963715-1 | 1099458-00-A | ||
| 6 | GN | 0.5 | SN | X090-8 | AMP 5-963715-1 | 1099458-00-A | ||
| 7 | BN/WH | 0.35 | SN | X090-9 | AMP 5-928999-1 | 1099455-00-B | ||
| 8 | BN | 0.35 | SN | X090-19 | AMP 5-928999-1 | 1099455-00-B | ||
| 9 | BK | 0.5 | SN | GND_LR-1 | AMP 5-963715-1 | 1099458-00-A | ||
| 10 | RD/BU | 0.5 | SN | X020-4 | AMP 5-963715-1 | 1099458-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.5 | SN | X099-3 | AMP 5-963715-1 | 1099458-00-A | ||
| 2 | RD/WH | 0.5 | SN | X099-4 | AMP 5-963715-1 | 1099458-00-A | ||
| 4 | WH | 0.35 | SN | X090-15 | AMP 5-928999-1 | 1099455-00-B | ||
| 5 | BU | 0.5 | SN | X090-2 | AMP 5-963715-1 | 1099458-00-A | ||
| 6 | GN | 0.5 | SN | X090-8 | AMP 5-963715-1 | 1099458-00-A | ||
| 7 | BN/WH | 0.35 | SN | X090-9 | AMP 5-928999-1 | 1099455-00-B | ||
| 8 | BN | 0.35 | SN | X090-19 | AMP 5-928999-1 | 1099455-00-B | ||
| 9 | BK | 0.5 | SN | GND_LR-1 | AMP 5-963715-1 | 1099458-00-A | ||
| 10 | RD/BU | 0.5 | SN | X020-4 | AMP 5-963715-1 | 1099458-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/VT | 2 | SN | X930F-14 | FCI 54001400 | Tesla MAT-170-409 | 1102108-00-B | |
| 2 | BU/WH | 0.75 | SN | X930F-6 | FCI 54001800 | Tesla MAT-170-409 | 1102111-00-B | |
| 3 | VT/WH | 0.75 | SN | X930F-13 | FCI 54001800 | Tesla MAT-170-409 | 1102111-00-B | |
| 4 | RD/WH | 2 | SN | X930F-7 | FCI 54001400 | Tesla MAT-170-409 | 1102108-00-B |
