X106 - s-rhd-sop10

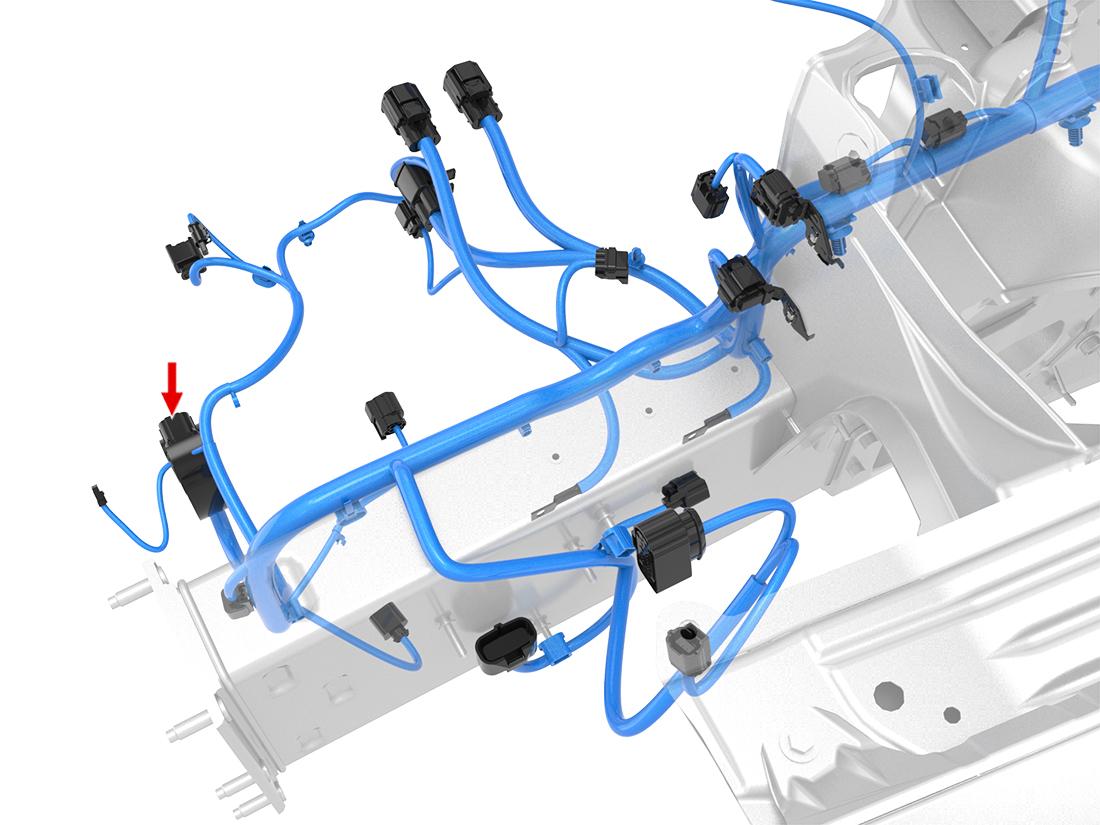

Location:

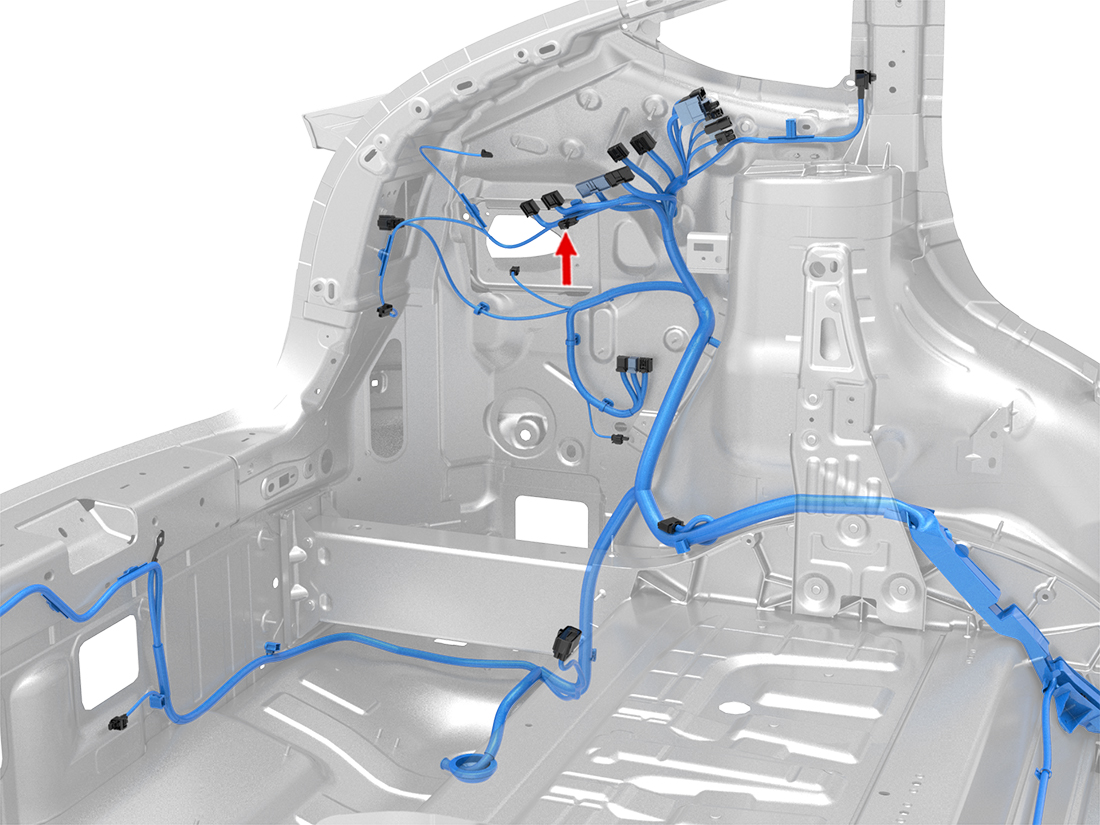

Location:
Connector Detail: AMP 178602-2
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Bosch 1928405654
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 4 | SN | X552-1 | Bosch 1928498807 | Bosch 1928301086 | 1102107-00-B | |
| 4 | GY | 0.5 | SN | X112-2 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 8 | VT | 0.5 | SN | X111-2 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 13 | BK | 4 | SN | G500-1 | Bosch 1928498807 | Bosch 1928301086 | 1102107-00-B | |
| 14 | GN | 0.35 | SN | Z12-+CNC10-L | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 16 | GY/WH | 0.5 | SN | X112-1 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 17 | BK/WH | 0.5 | SN | X979M-6 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 18 | GN | 0.5 | SN | X979M-8 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 19 | VT/WH | 0.5 | SN | X111-1 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 20 | YE | 0.5 | SN | Z8-+CPV02-L | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 25 | RD/VT | 1.5 | SN | X561-9 | Bosch 1928498806 | Bosch 1928301206 | 1102103-00-B | |
| 26 | GN/WH | 0.35 | SN | Z11-+CNC09-L | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 28 | RD/WH | 0.35 | SN | X561-13 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 29 | WH | 0.5 | SN | X979M-11 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 31 | GN/WH | 0.5 | SN | X979M-1 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 33 | YE/WH | 0.5 | SN | Z7-+CPV01-L | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 38 | BK | 1.5 | SN | G500-1 | Bosch 1928498806 | Bosch 1928301206 | 1102103-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | VT | 0.5 | SN | X090-5 | AMP 173633-2 | 1099445-00-A | ||
| 2 | WH | 0.5 | SN | X090-15 | AMP 173633-2 | 1099445-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | VT | 0.5 | SN | X090-5 | AMP 173633-2 | 1099445-00-A | ||
| 2 | WH | 0.5 | SN | X090-15 | AMP 173633-2 | 1099445-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 4 | SN | X552-1 | Bosch 1928498807 | Bosch 1928301086 | 1102107-00-B | |
| 4 | GY | 0.5 | SN | X112-2 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 8 | VT | 0.5 | SN | X111-2 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 13 | BK | 4 | SN | G500-1 | Bosch 1928498807 | Bosch 1928301086 | 1102107-00-B | |
| 14 | GN | 0.35 | SN | Z12-+CNC10-L | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 16 | GY/WH | 0.5 | SN | X112-1 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 17 | BK/WH | 0.5 | SN | X979M-6 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 18 | GN | 0.5 | SN | X979M-8 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 19 | VT/WH | 0.5 | SN | X111-1 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 20 | YE | 0.5 | SN | Z8-+CPV02-L | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 25 | RD/VT | 1.5 | SN | X561-9 | Bosch 1928498806 | Bosch 1928301206 | 1102103-00-B | |
| 26 | GN/WH | 0.35 | SN | Z11-+CNC09-L | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 28 | RD/WH | 0.35 | SN | X561-13 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 29 | WH | 0.5 | SN | X979M-11 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 31 | GN/WH | 0.5 | SN | X979M-1 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 33 | YE/WH | 0.5 | SN | Z7-+CPV01-L | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 38 | BK | 1.5 | SN | G500-1 | Bosch 1928498806 | Bosch 1928301206 | 1102103-00-B |
