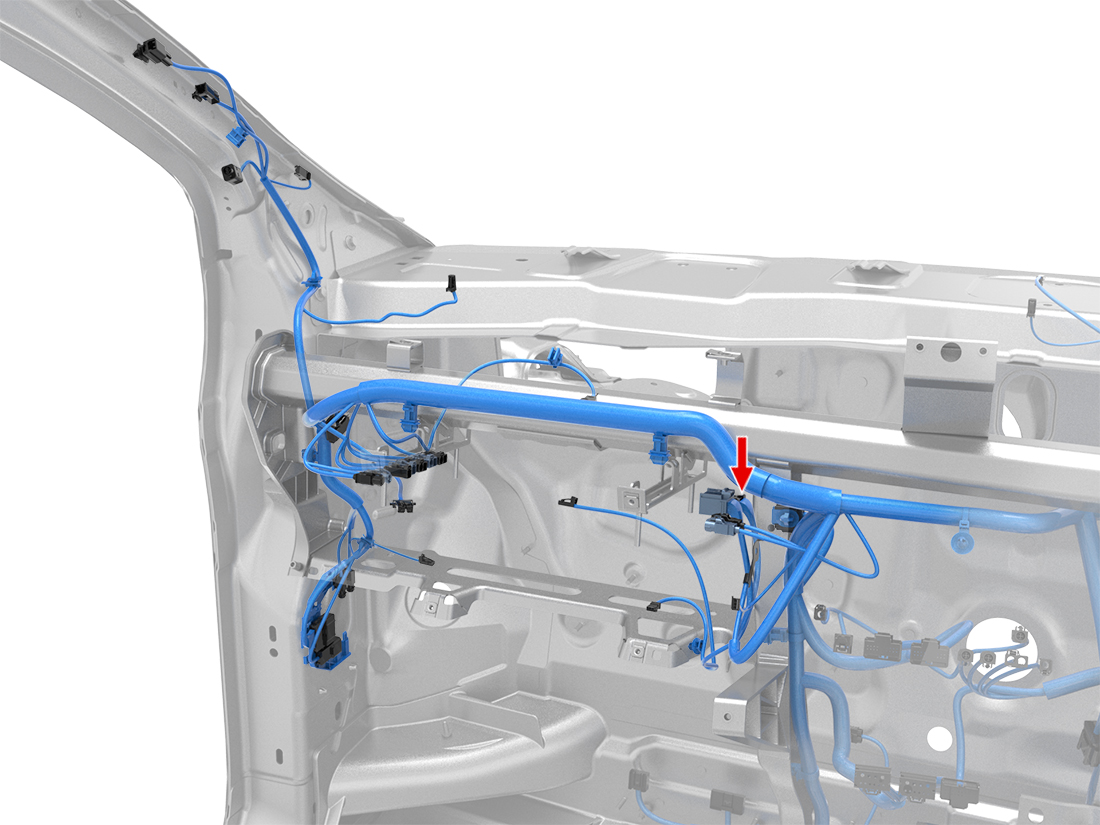

Location:
Location:
Connector Detail: Sumitomo 6098-5611
Color: BU
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BK/WH | 0.75 | SN | X595-1 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 1 | BK/WH | 0.75 | SN | Z1-+AUD29_A-R | Sumitomo 8240-0213 | | 1099539-00-A | |
| 2 | BK/VT | 0.75 | SN | X175-5 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 5 | YE/WH | 0.35 | SN | X914F-7 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 6 | YE | 0.35 | SN | X914F-17 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 9 | RD/GN | 2 | SN | X025-5 | Sumitomo 8240-0214 | | 1099540-00-A | |
| 11 | WH | 0.75 | SN | X595-2 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 11 | WH | 0.75 | SN | Z2-+AUD30_A-R | Sumitomo 8240-0213 | | 1099539-00-A | |
| 12 | VT | 0.75 | SN | X175-6 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 17 | BK | 2 | SN | GND_IP_R-1 | Sumitomo 8240-0214 | | 1099540-00-A | |
| 18 | BK | 2 | SN | GND_IP_L-1 | Sumitomo 8240-0214 | | 1099540-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BK/WH | 0.75 | SN | X595-1 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 1 | BK/WH | 0.75 | SN | Z1-+AUD29_A-L | Sumitomo 8240-0213 | | 1099539-00-A | |
| 2 | BK/VT | 0.75 | SN | X175-5 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 5 | YE/WH | 0.35 | SN | X914F-7 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 6 | YE | 0.35 | SN | X914F-17 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 9 | RD/GN | 2 | SN | X025-5 | Sumitomo 8240-0214 | | 1099540-00-A | |
| 11 | WH | 0.75 | SN | X595-2 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 11 | WH | 0.75 | SN | Z2-+AUD30_A-L | Sumitomo 8240-0213 | | 1099539-00-A | |
| 12 | VT | 0.75 | SN | X175-6 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 17 | BK | 2 | SN | GND_IP_R-1 | Sumitomo 8240-0214 | | 1099540-00-A | |
| 18 | BK | 2 | SN | GND_IP_L-1 | Sumitomo 8240-0214 | | 1099540-00-A | |
