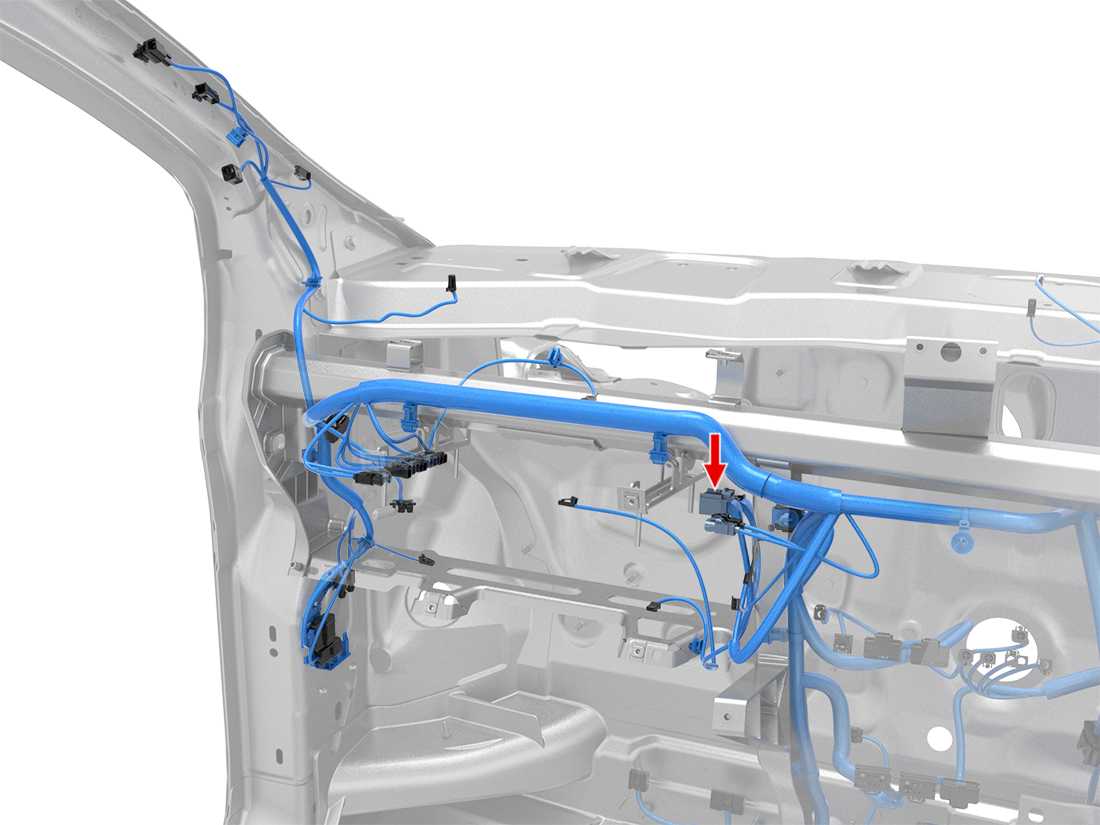

Location:

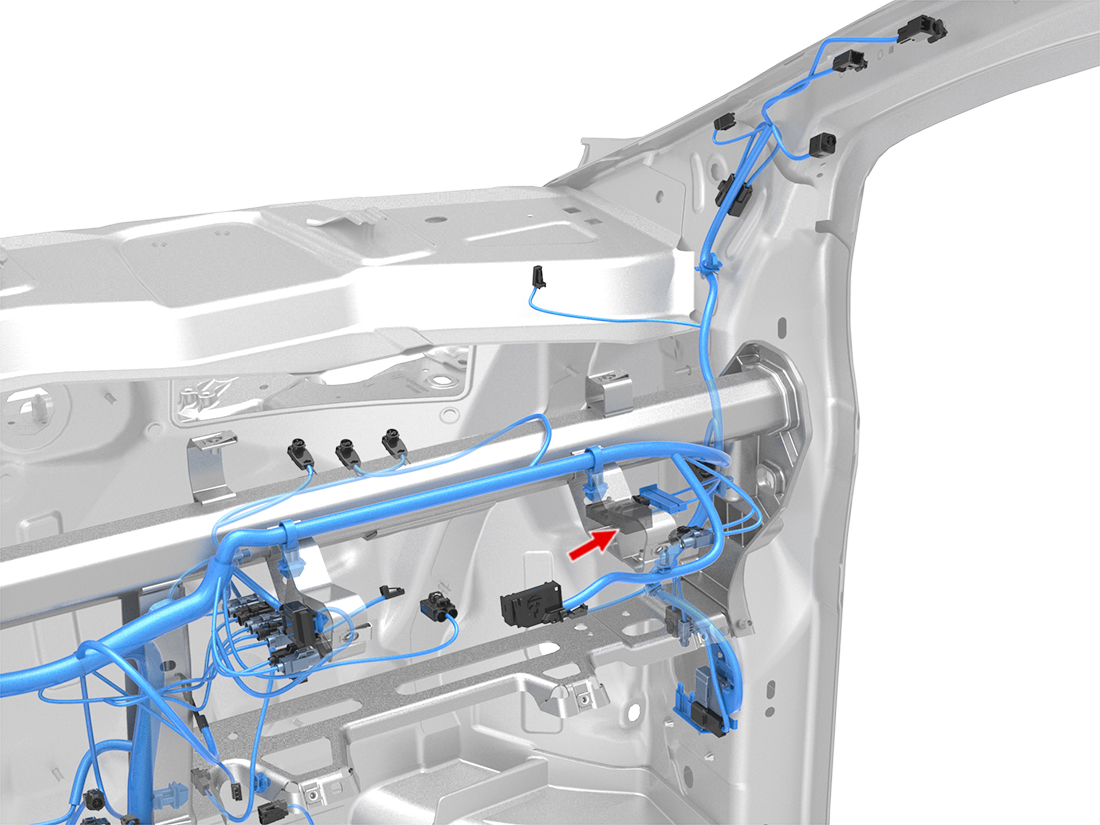

Location:
Connector Detail: Sumitomo 6098-4008
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | VT/WH | 0.35 | SN | X926F-3 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 2 | VT | 0.35 | SN | X926F-13 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 3 | BU/WH | 0.35 | SN | X915F-3 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 4 | RD | 0.5 | SN | X915F-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 5 | BU/WH | 0.35 | SN | X914F-3 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 6 | GY | 0.35 | SN | X914F-18 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 7 | GY/WH | 0.35 | SN | X914F-9 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 8 | BU | 0.35 | SN | X915F-13 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 9 | GN/WH | 0.35 | SN | X730-6 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 10 | GN | 0.35 | SN | X730-17 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 11 | RD/WH | 0.35 | SN | X732-10 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 12 | RD | 0.35 | SN | X732-21 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 15 | BK | 0.5 | SN | GND_IP_R-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 16 | BN | 0.5 | SN | X924F-24 | Sumitomo 8100-3625 | | 1099530-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | VT/WH | 0.35 | SN | X926F-3 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 2 | VT | 0.35 | SN | X926F-13 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 3 | BU/WH | 0.35 | SN | X915F-3 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 4 | RD | 0.5 | SN | X915F-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 5 | BU/WH | 0.5 | SN | X914F-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 6 | GY | 0.35 | SN | X914F-18 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 7 | GY/WH | 0.35 | SN | X914F-9 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 8 | BU | 0.35 | SN | X915F-13 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 9 | GN/WH | 0.35 | SN | X730-6 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 10 | GN | 0.35 | SN | X730-17 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 11 | RD/WH | 0.35 | SN | X732-10 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 12 | RD | 0.35 | SN | X732-21 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 15 | BK | 0.5 | SN | GND_IP_R-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 16 | BN | 0.5 | SN | X924F-24 | Sumitomo 8100-3625 | | 1099530-00-A | |
