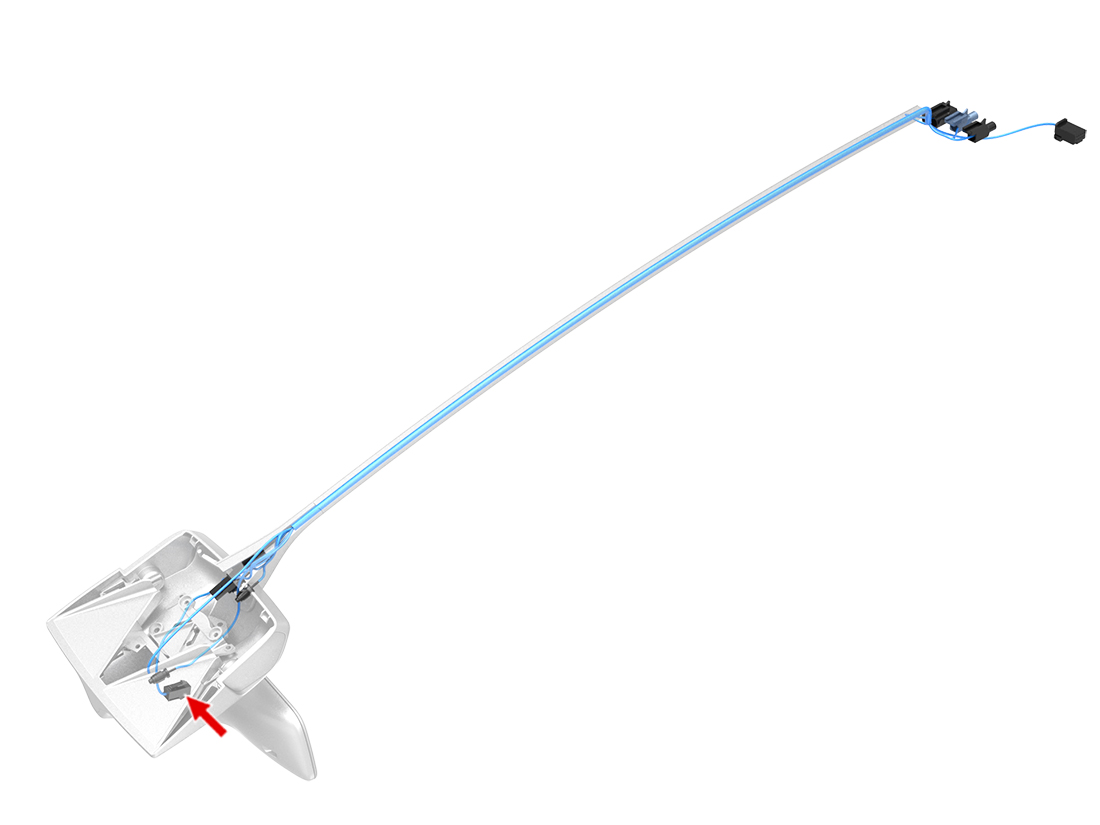

Location:
Connector Detail: Molex 43020-0400
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/BU | 0.35 | SN | X980F-6 | Molex 43031-0001 | | 1108390-00-C | |
| 2 | BK | 0.35 | SN | X980F-10 | Molex 43031-0001 | | 1108390-00-C | |
| 3 | GN | 0.35 | SN | X980F-8 | Molex 43031-0001 | | 1108390-00-C | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/BU | 0.35 | SN | X980F-6 | Molex 43031-0001 | | 1108390-00-C | |
| 2 | BK | 0.35 | SN | X980F-10 | Molex 43031-0001 | | 1108390-00-C | |
| 3 | GN | 0.35 | SN | X980F-8 | Molex 43031-0001 | | 1108390-00-C | |
