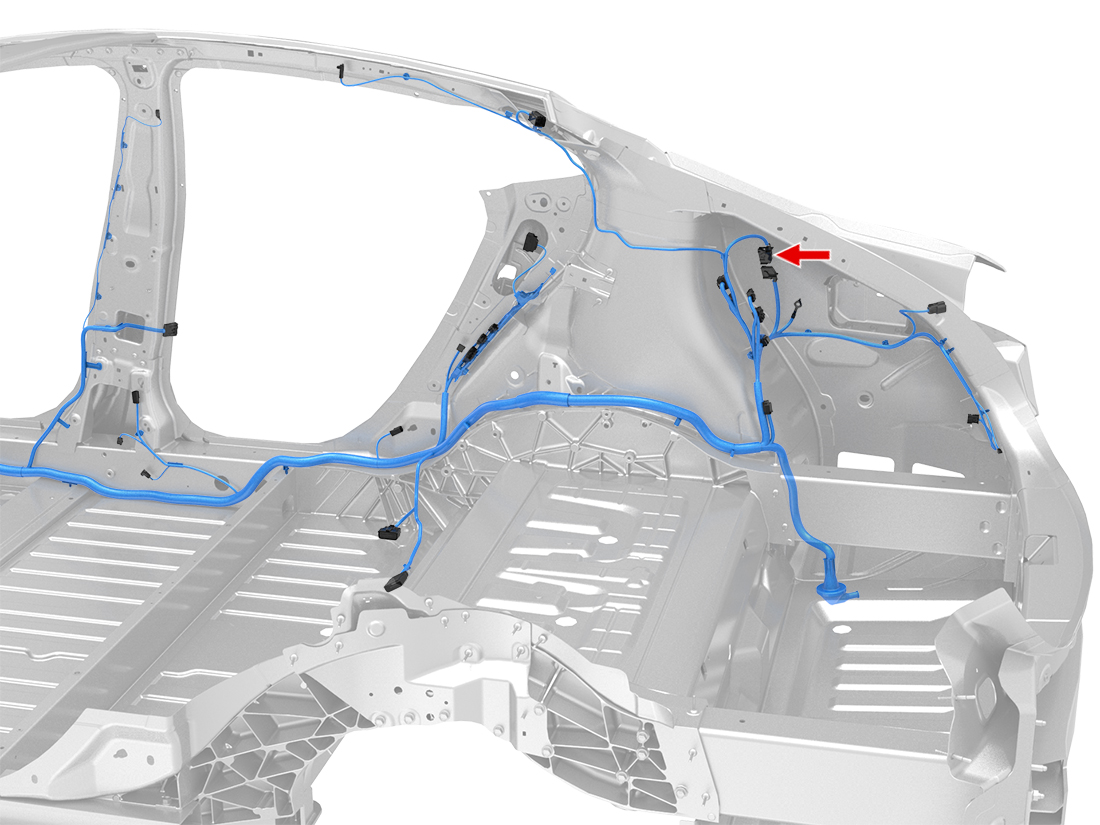

Location:
Connector Detail: AMP 185879-1
Color: Yellow
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 6 | YE/WH | 0.35 | SN | X909M-9 | AMP 5-928999-1 | | 1099455-00-B | |
| 7 | OG | 0.35 | SN | X909M-7 | AMP 5-928999-1 | | 1099455-00-B | |
| 13 | BK | 0.5 | SN | G700-1 | AMP 5-963715-1 | | 1099458-00-A | |
| 14 | RD/BU | 0.5 | SN | X989F-14 | AMP 5-963715-1 | | 1099458-00-A | |
| 18 | GN/WH | 0.35 | SN | X909M-5 | AMP 5-928999-1 | | 1099455-00-B | |
| 20 | WH | 0.35 | SN | X909M-8 | AMP 5-928999-1 | | 1099455-00-B | |
| 21 | RD/WH | 0.35 | SN | X909M-6 | AMP 5-928999-1 | | 1099455-00-B | |
| 22 | BK/WH | 0.35 | SN | X909M-10 | AMP 5-928999-1 | | 1099455-00-B | |
| 23 | GN | 0.35 | SN | X779-21 | AMP 5-928999-1 | | 1099455-00-B | |
| 24 | GN/WH | 0.35 | SN | X779-10 | AMP 5-928999-1 | | 1099455-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 6 | YE/WH | 0.35 | SN | X909M-9 | AMP 5-928999-1 | | 1099455-00-B | |
| 7 | OG | 0.35 | SN | X909M-7 | AMP 5-928999-1 | | 1099455-00-B | |
| 13 | BK | 0.5 | SN | G700-1 | AMP 5-963715-1 | | 1099458-00-A | |
| 14 | RD/BU | 0.5 | SN | X989F-14 | AMP 5-963715-1 | | 1099458-00-A | |
| 18 | GN/WH | 0.35 | SN | X909M-5 | AMP 5-928999-1 | | 1099455-00-B | |
| 20 | WH | 0.35 | SN | X909M-8 | AMP 5-928999-1 | | 1099455-00-B | |
| 21 | RD/WH | 0.35 | SN | X909M-6 | AMP 5-928999-1 | | 1099455-00-B | |
| 22 | BK/WH | 0.35 | SN | X909M-10 | AMP 5-928999-1 | | 1099455-00-B | |
| 23 | GN | 0.35 | SN | X779-21 | AMP 5-928999-1 | | 1099455-00-B | |
| 24 | GN/WH | 0.35 | SN | X779-10 | AMP 5-928999-1 | | 1099455-00-B | |
