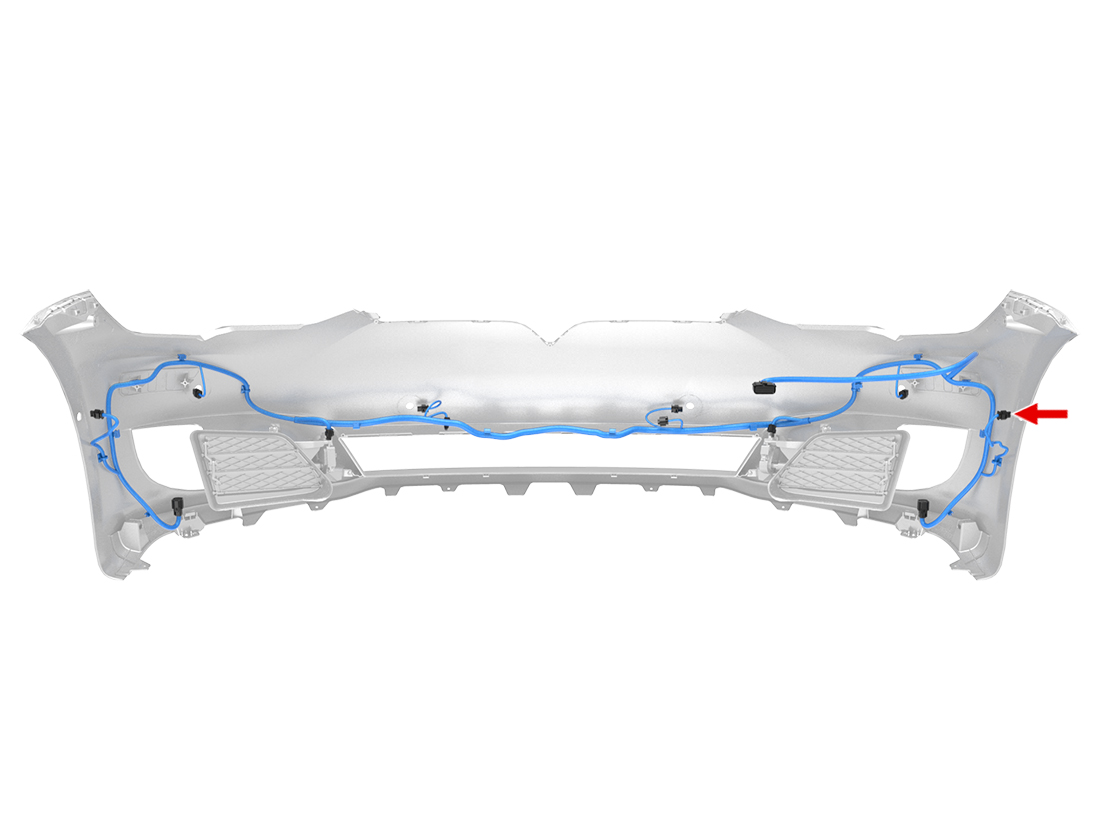

Location:
Connector Detail: FEP 42811100
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BN | 0.35 | SN | Z47-WPA27-R | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 2 | BU/WH | 0.35 | SN | X963F-8 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 3 | RD/VT | 0.35 | SN | Z34-WPA28-R | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BN | 0.35 | SN | Z47-WPA27-R | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 2 | BU/WH | 0.35 | SN | X963F-8 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 3 | RD/VT | 0.35 | SN | Z34-WPA28-R | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
