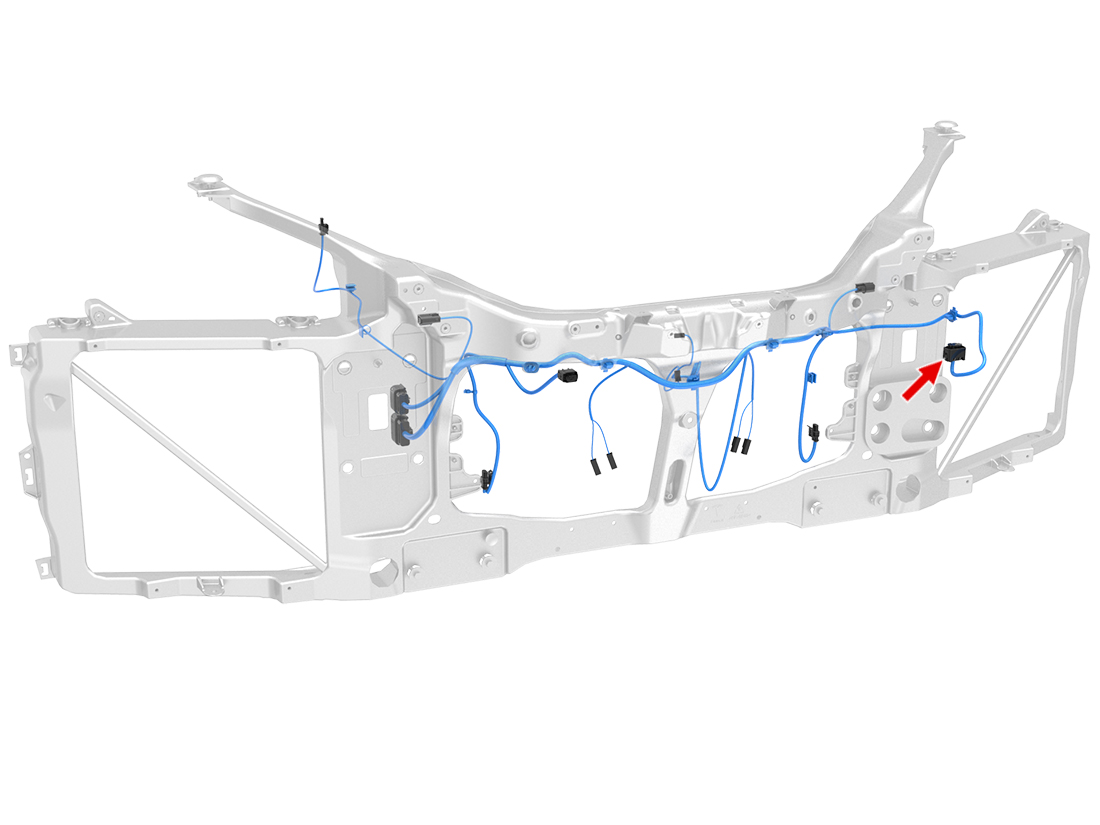

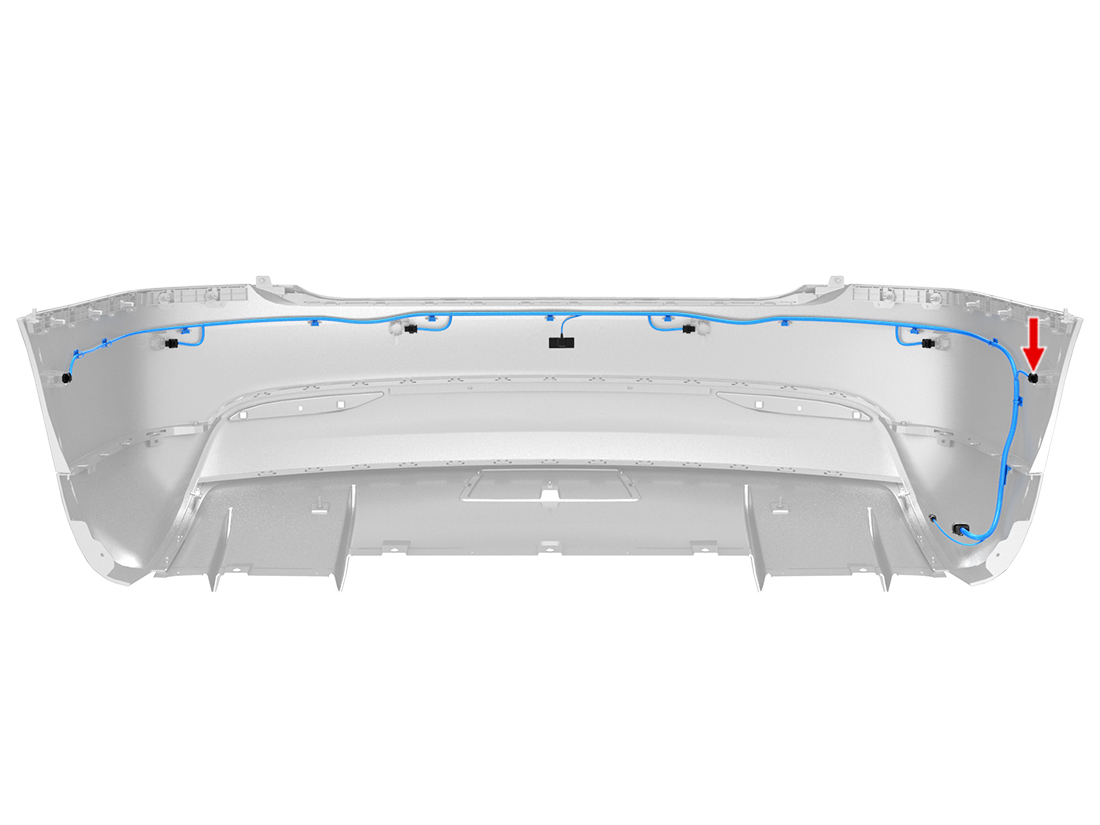

X138 - s-rhd-sop10
Location:
Location:
Connector Detail: Sumitomo 6189-7895
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Hirschmann 805-121-522
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | 0.35 | SN | Z71-+GDB01-L | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 2 | BU/WH | 0.35 | SN | X965F-2 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 3 | BU | 0.35 | SN | X965F-3 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 4 | RD | 0.35 | SN | X965F-1 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 5 | VT/WH | 0.35 | SN | X966F-12 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 6 | VT | 0.35 | SN | X966F-13 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.35 | SN | Z133-WPA01-X | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 2 | WH | 0.5 | SN | X950F-8 | AMP 7-1452668-1 | AMP 967067-2 | 1099461-00-C | |
| 3 | BK | 0.35 | SN | Z134-WPA02-X | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.35 | SN | Z133-WPA01-X | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 2 | WH | 0.5 | SN | X950F-8 | AMP 7-1452668-1 | AMP 967067-2 | 1099461-00-C | |
| 3 | BK | 0.35 | SN | Z134-WPA02-X | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | 0.35 | SN | Z71-+GDB01-L | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 2 | BU/WH | 0.35 | SN | X965F-2 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 3 | BU | 0.35 | SN | X965F-3 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 4 | RD | 0.35 | SN | X965F-1 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 5 | VT/WH | 0.35 | SN | X966F-12 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 6 | VT | 0.35 | SN | X966F-13 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C |
