X141 - s-rhd-sop10

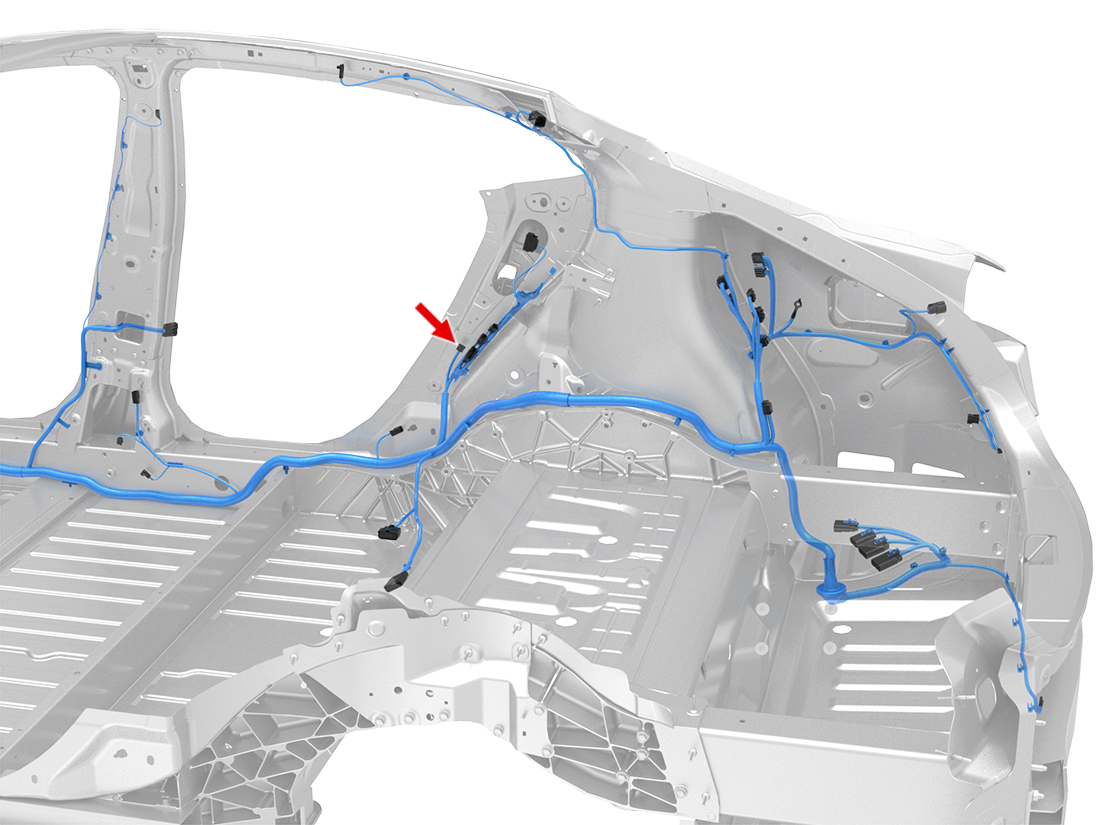

Location:

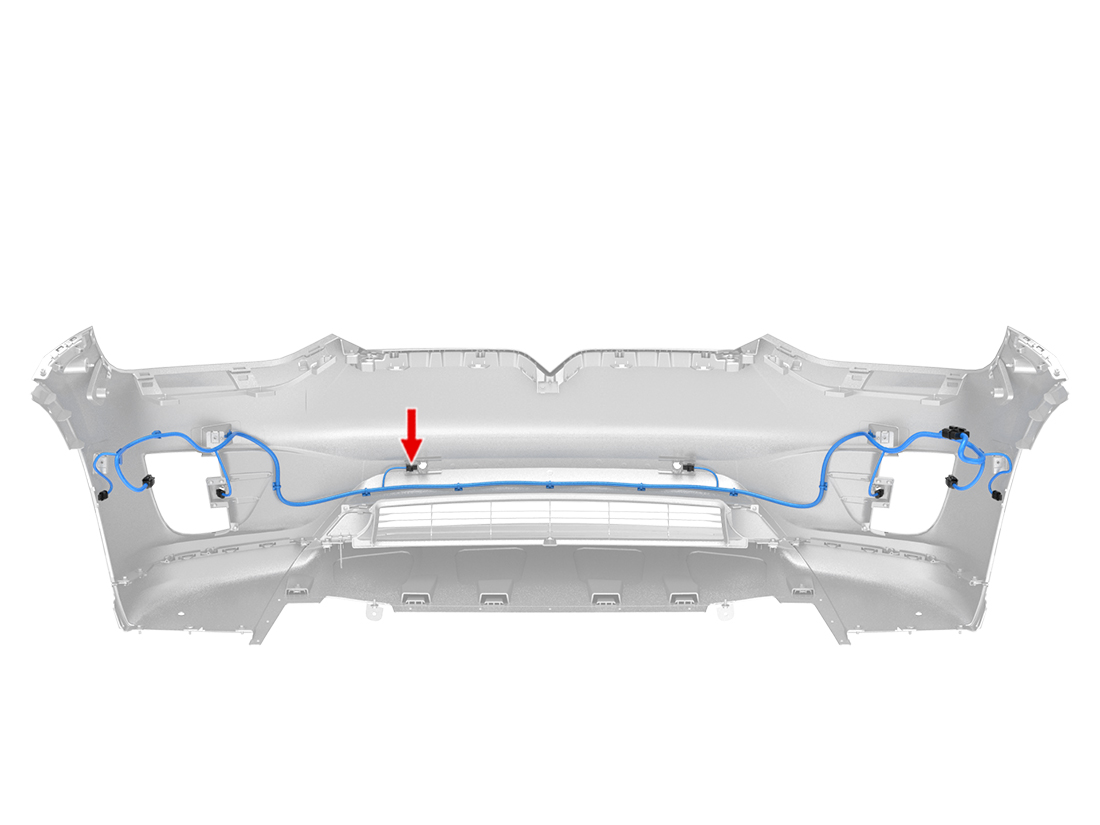

Location:
Connector Detail: AMP 2109233-2
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Hirschmann 805-121-521
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.5 | SN | X970M-3 | AMP 5-963715-1 | 1099458-00-A | ||
| 2 | BK/WH | 0.35 | SN | X977F-17 | AMP 5-928999-1 | 1099455-00-B | ||
| 3 | GN/WH | 0.35 | SN | X779-8 | AMP 5-928999-1 | 1099455-00-B | ||
| 4 | GN | 0.35 | SN | X779-19 | AMP 5-928999-1 | 1099455-00-B | ||
| 5 | BK | 0.5 | SN | G700-1 | AMP 5-963715-1 | 1099458-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.35 | SN | Z12-WPA07-X | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 2 | BU | 0.5 | SN | X901F-5 | AMP 7-1452668-1 | AMP 967067-2 | 1099461-00-C | |
| 3 | BK | 0.35 | SN | Z13-WPA08-L | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.35 | SN | Z12-WPA07-X | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 2 | BU | 0.5 | SN | X901F-5 | AMP 7-1452668-1 | AMP 967067-2 | 1099461-00-C | |
| 3 | BK | 0.35 | SN | Z13-WPA08-L | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.5 | SN | X970M-3 | AMP 5-963715-1 | 1099458-00-A | ||
| 2 | BK/WH | 0.35 | SN | X977F-17 | AMP 5-928999-1 | 1099455-00-B | ||
| 3 | GN/WH | 0.35 | SN | X779-8 | AMP 5-928999-1 | 1099455-00-B | ||
| 4 | GN | 0.35 | SN | X779-19 | AMP 5-928999-1 | 1099455-00-B | ||
| 5 | BK | 0.5 | SN | G700-1 | AMP 5-963715-1 | 1099458-00-A |
