X143 - s-rhd-sop10

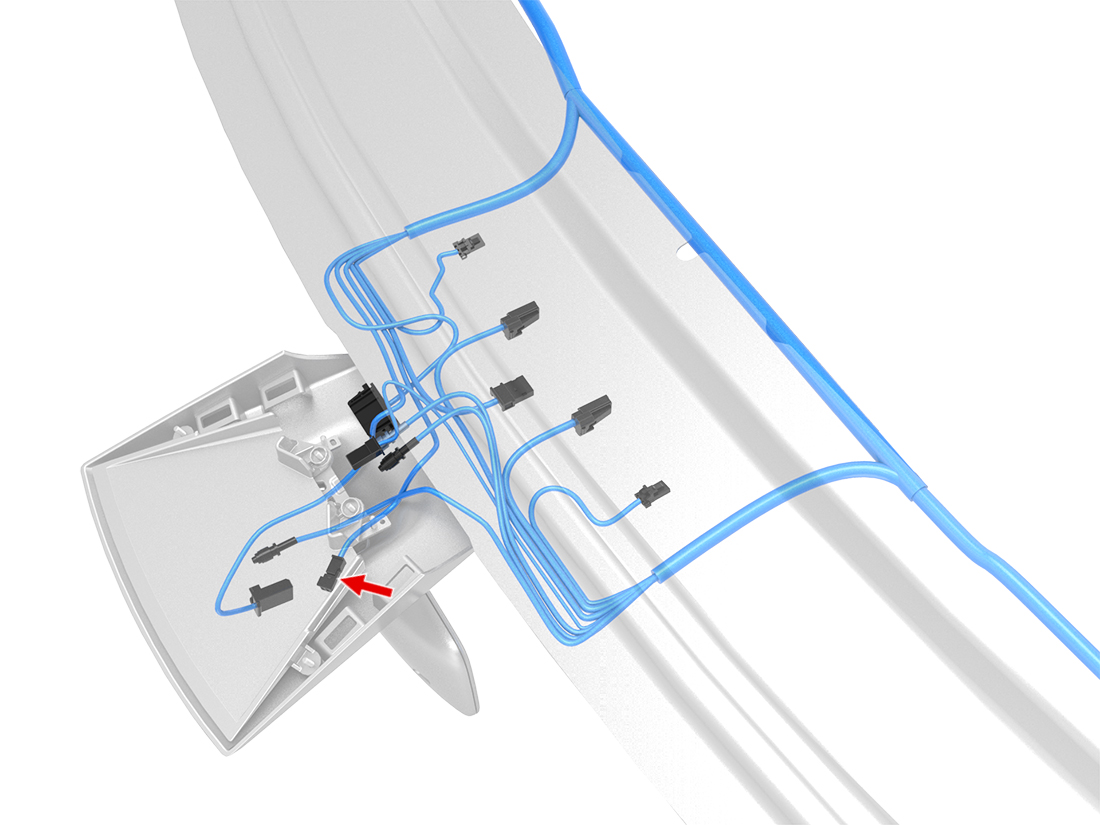

Location:

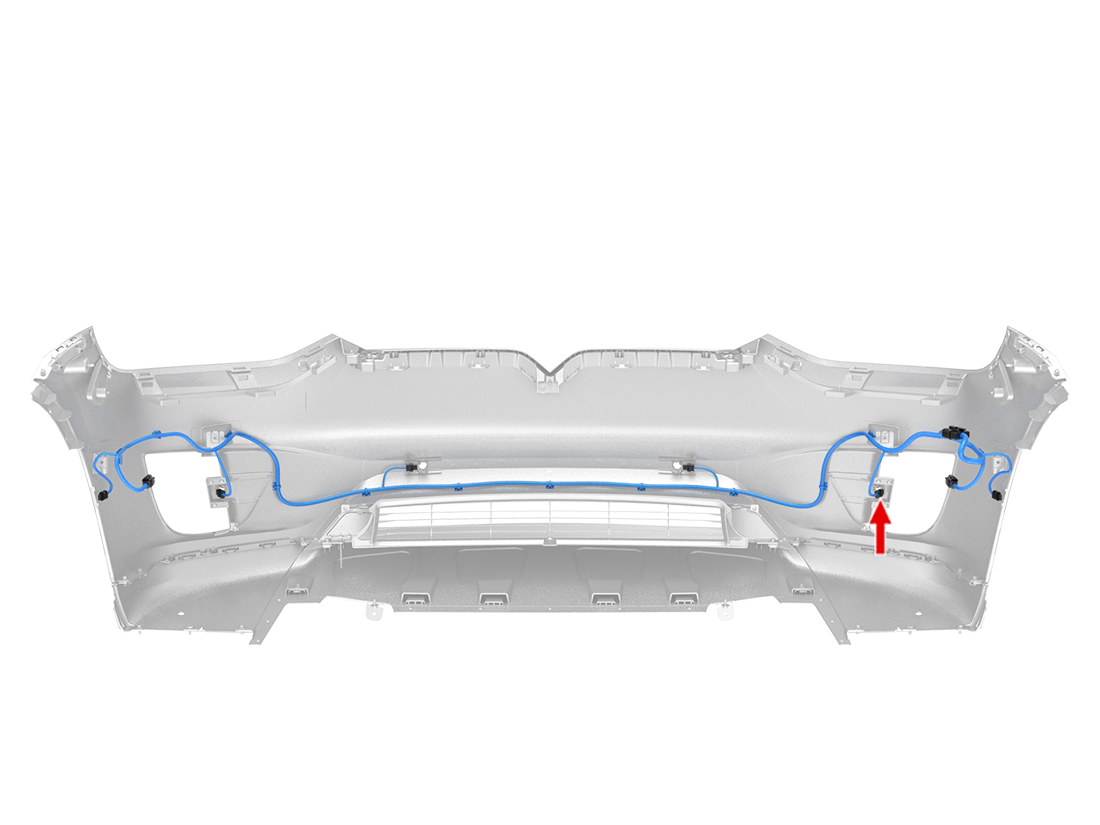

Location:
Connector Detail: AMP 1-1718333-1
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Hirschmann 805-121-521
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU/WH | 0.5 | SN | X968F-18 | AMP 5-963715-1 | 1099458-00-A | ||
| 2 | BK | 0.5 | SN | Z62-+GDC12-R | AMP 5-963715-1 | 1099458-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.35 | SN | Z12-WPA07-X | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 2 | GN | 0.5 | SN | X901F-7 | AMP 7-1452668-1 | AMP 967067-2 | 1099461-00-C | |
| 3 | BK | 0.35 | SN | Z13-WPA08-R | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.35 | SN | Z12-WPA07-X | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 2 | GN | 0.5 | SN | X901F-7 | AMP 7-1452668-1 | AMP 967067-2 | 1099461-00-C | |
| 3 | BK | 0.35 | SN | Z13-WPA08-R | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU/WH | 0.5 | SN | X968F-18 | AMP 5-963715-1 | 1099458-00-A | ||
| 2 | BK | 0.5 | SN | Z62-+GDC12-R | AMP 5-963715-1 | 1099458-00-A |
