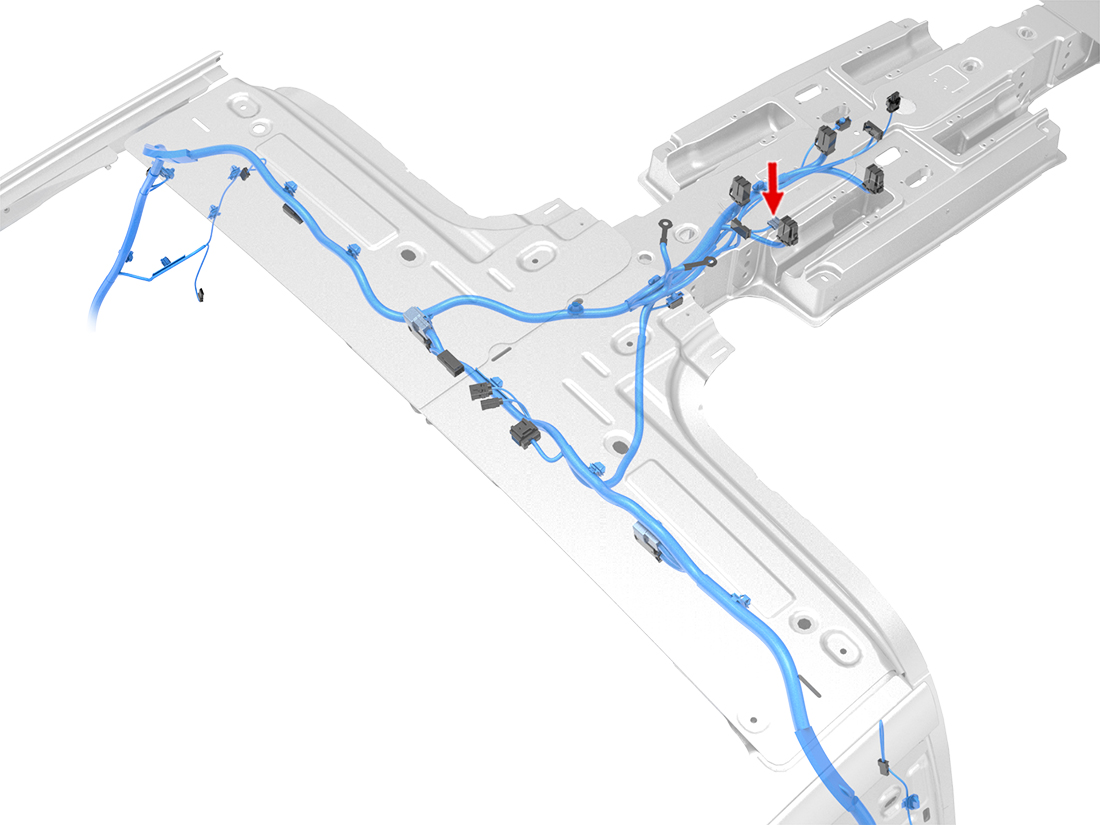

Location:
Connector Detail: AMP 2109233-2
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GY | 0.35 | SN | X926M-4 | AMP 5-928999-1 | | 1099455-00-B | |
| 2 | VT | 0.35 | SN | X910M-18 | AMP 5-928999-1 | | 1099455-00-B | |
| 3 | GN/WH | 0.35 | SN | X977M-13 | AMP 5-928999-1 | | 1099455-00-B | |
| 4 | GN | 0.35 | SN | X977M-20 | AMP 5-928999-1 | | 1099455-00-B | |
| 5 | BK | 0.35 | SN | GND_LB-1 | AMP 5-928999-1 | | 1099455-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GY | 0.35 | SN | X926M-4 | AMP 5-928999-1 | | 1099455-00-B | |
| 2 | VT | 0.35 | SN | X910M-18 | AMP 5-928999-1 | | 1099455-00-B | |
| 3 | GN/WH | 0.35 | SN | X977M-13 | AMP 5-928999-1 | | 1099455-00-B | |
| 4 | GN | 0.35 | SN | X977M-20 | AMP 5-928999-1 | | 1099455-00-B | |
| 5 | BK | 0.35 | SN | GND_LB-1 | AMP 5-928999-1 | | 1099455-00-B | |
