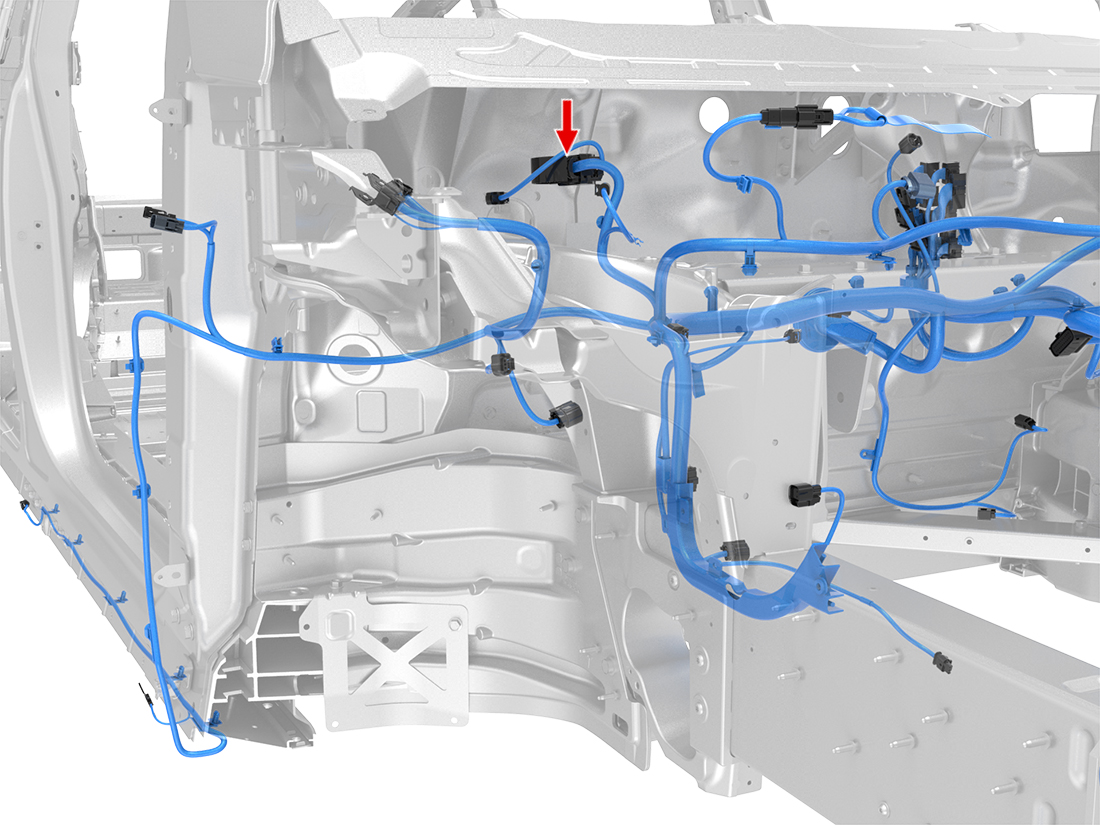

Location:
Connector Detail: Bosch 1928405762
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/BN | 4 | SN | X041-1 | Bosch 1928498807 | Bosch 1928301086 | 1102107-00-B | |
| 2 | WH | 0.5 | SN | X158A-1 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 8 | GY | 0.5 | SN | X158A-3 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 9 | BK | 4 | SN | GND_FR_RH2-1 | Bosch 1928498807 | Bosch 1928301086 | 1102107-00-B | |
| 10 | YE | 0.5 | SN | X751-21 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 16 | GN | 0.5 | SN | X750-13 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 17 | RD/VT | 1.5 | SN | X915M-10 | Bosch 1928498806 | Delphi 15324976 | 1102103-00-B | |
| 18 | YE/WH | 0.5 | SN | X751-10 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 20 | RD/BU | 0.5 | SN | X031-13 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 22 | BN | 0.5 | SN | X158A-2 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 23 | BU | 0.5 | SN | X158A-4 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 25 | GN/WH | 0.5 | SN | X750-2 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
