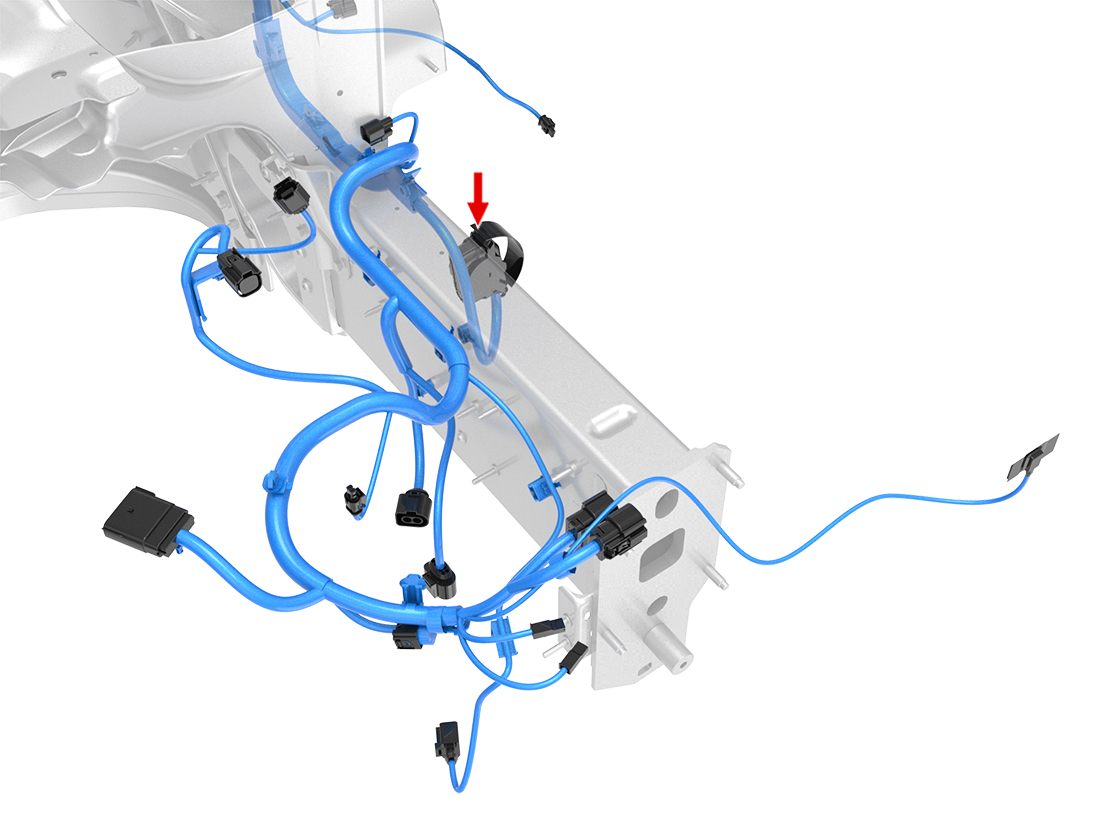

Location:
Connector Detail: Bosch 1928405654
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD | 4 | SN | X033-1 | Bosch 1928498807 | Bosch 1928301086 | 1102107-00-B | |
| 4 | GY | 0.5 | SN | X155-2 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 8 | VT | 0.5 | SN | X154-2 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 13 | BK/GY | 4 | SN | GND_FR_RH1-1 | Bosch 1928498807 | Bosch 1928301086 | 1102107-00-B | |
| 14 | GN | 0.5 | SN | X750-16 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 16 | GY/WH | 0.5 | SN | X155-1 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 17 | BK/WH | 0.5 | SN | X911F-18 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 18 | GN | 0.5 | SN | X911F-10 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 19 | VT/WH | 0.5 | SN | X154-1 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 20 | YE | 0.5 | SN | X751-19 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 25 | RD/WH | 1.5 | SN | X001-9 | Bosch 1928498806 | Delphi 15324976 | 1102103-00-B | |
| 26 | GN/WH | 0.5 | SN | X750-5 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 28 | RD/WH | 0.5 | SN | X001-13 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 29 | WH | 0.5 | SN | X911F-19 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 31 | GN/WH | 0.5 | SN | X911F-9 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 33 | YE/WH | 0.5 | SN | X751-8 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 38 | BK/WH | 2 | SN | GND_FR_RH1-1 | Bosch 1928498806 | Bosch 1928301206 | 1102103-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD | 4 | SN | X033-1 | Bosch 1928498807 | Bosch 1928301086 | 1102107-00-B | |
| 4 | GY | 0.5 | SN | X155-2 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 8 | VT | 0.5 | SN | X154-2 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 13 | BK/GY | 4 | SN | GND_FR_RH1-1 | Bosch 1928498807 | Bosch 1928301086 | 1102107-00-B | |
| 14 | GN | 0.5 | SN | X750-16 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 16 | GY/WH | 0.5 | SN | X155-1 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 17 | BK/WH | 0.5 | SN | X911F-18 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 18 | GN | 0.5 | SN | X911F-10 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 19 | VT/WH | 0.5 | SN | X154-1 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 20 | YE | 0.5 | SN | X751-19 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 25 | RD/WH | 1.5 | SN | X001-9 | Bosch 1928498806 | Delphi 15324976 | 1102103-00-B | |
| 26 | GN/WH | 0.5 | SN | X750-5 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 28 | RD/WH | 0.5 | SN | X001-13 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 29 | WH | 0.5 | SN | X911F-19 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 31 | GN/WH | 0.5 | SN | X911F-9 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 33 | YE/WH | 0.5 | SN | X751-8 | Bosch 1928498705 | Bosch 1928301118 | 1102102-00-B | |
| 38 | BK/WH | 2 | SN | GND_FR_RH1-1 | Bosch 1928498806 | Bosch 1928301206 | 1102103-00-B | |
