X152A - s-rhd-sop10

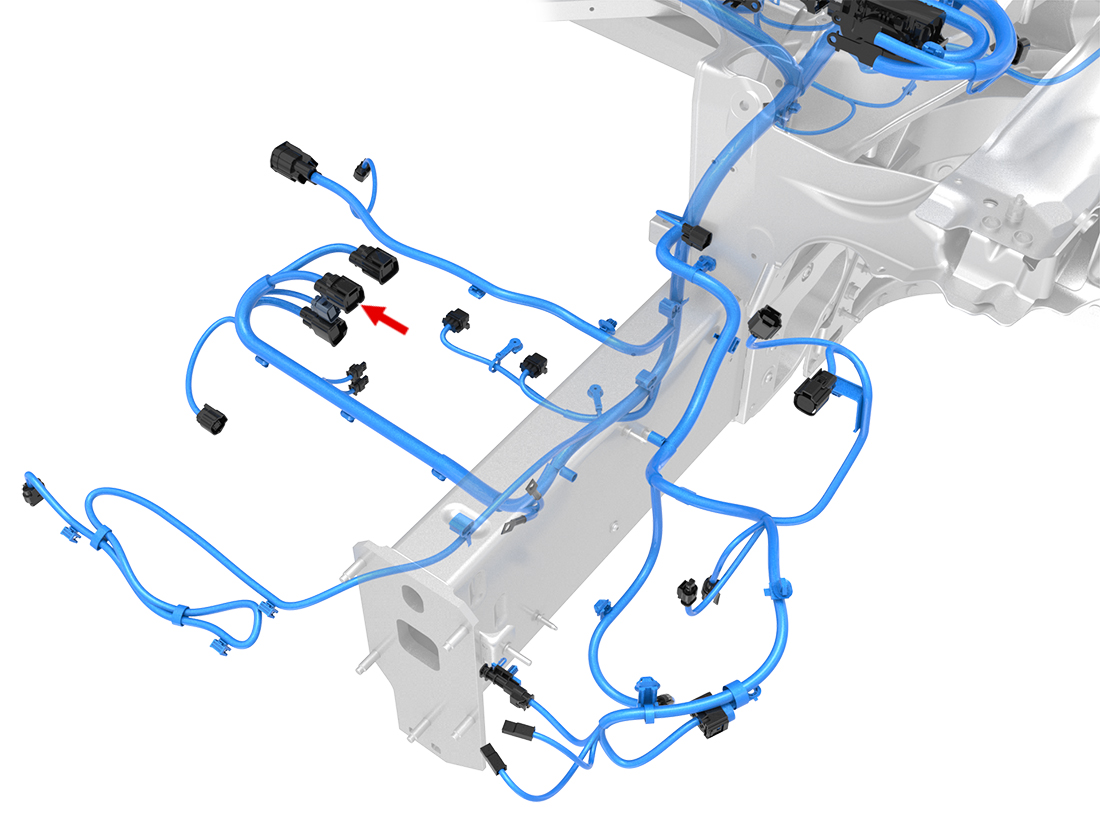

Location:
Connector Detail: Yazaki 7287-1992-40
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/BK | 16 | AG | X039-1 | Yazaki 7116-5625-06 | Yazaki 7158-3672-50 | ||
| 2 | BK | 16 | AG | GND_EPAS-1 | Yazaki 7116-5625-06 | Yazaki 7158-3672-50 |
