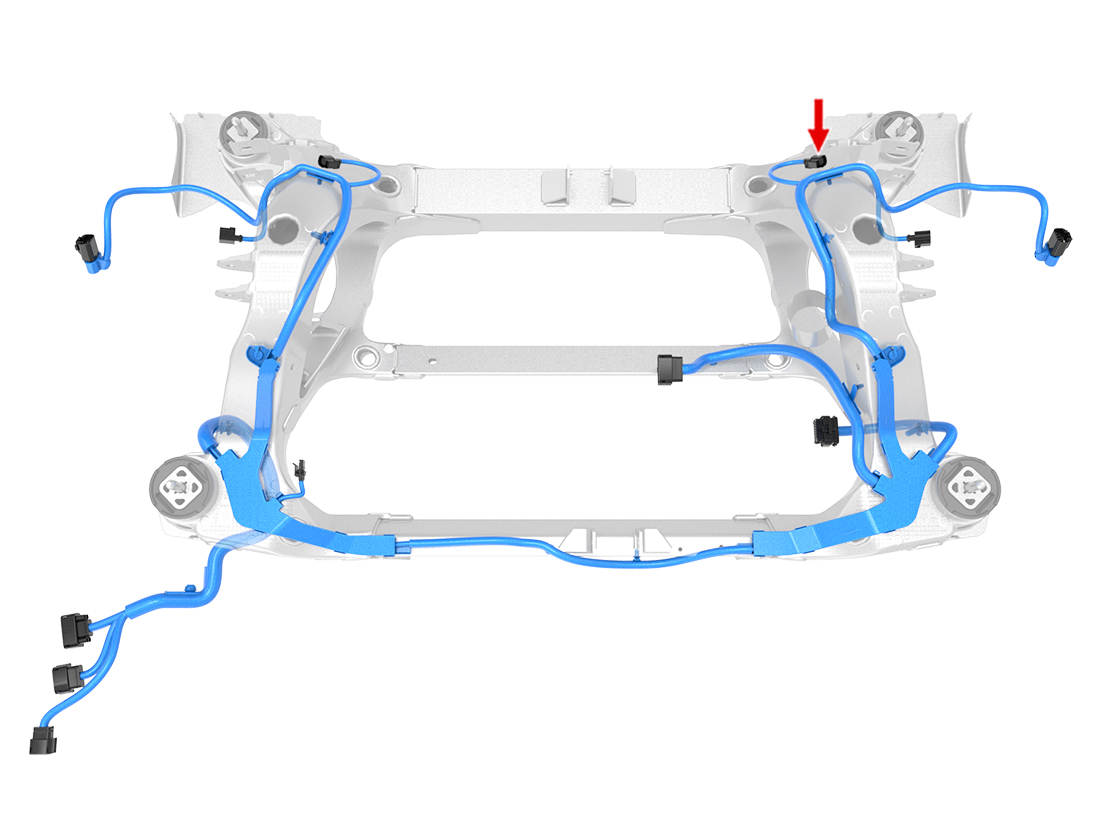

Location:
Connector Detail: Molex 34062-0023
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BK/WH | 0.5 | SN | X953F-11 | Molex 34083-2002 | Yazaki 7158-3030-50 | 1102113-00-B | 1116485-00-A |
| 2 | WH | 0.5 | SN | X953F-12 | Molex 34083-2002 | Yazaki 7158-3030-50 | 1102113-00-B | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BK/WH | 0.5 | SN | X953F-11 | Molex 34083-2002 | Yazaki 7158-3030-50 | 1102113-00-B | 1116485-00-A |
| 2 | WH | 0.5 | SN | X953F-12 | Molex 34083-2002 | Yazaki 7158-3030-50 | 1102113-00-B | 1116485-00-A |
