X158 - s-rhd-sop10

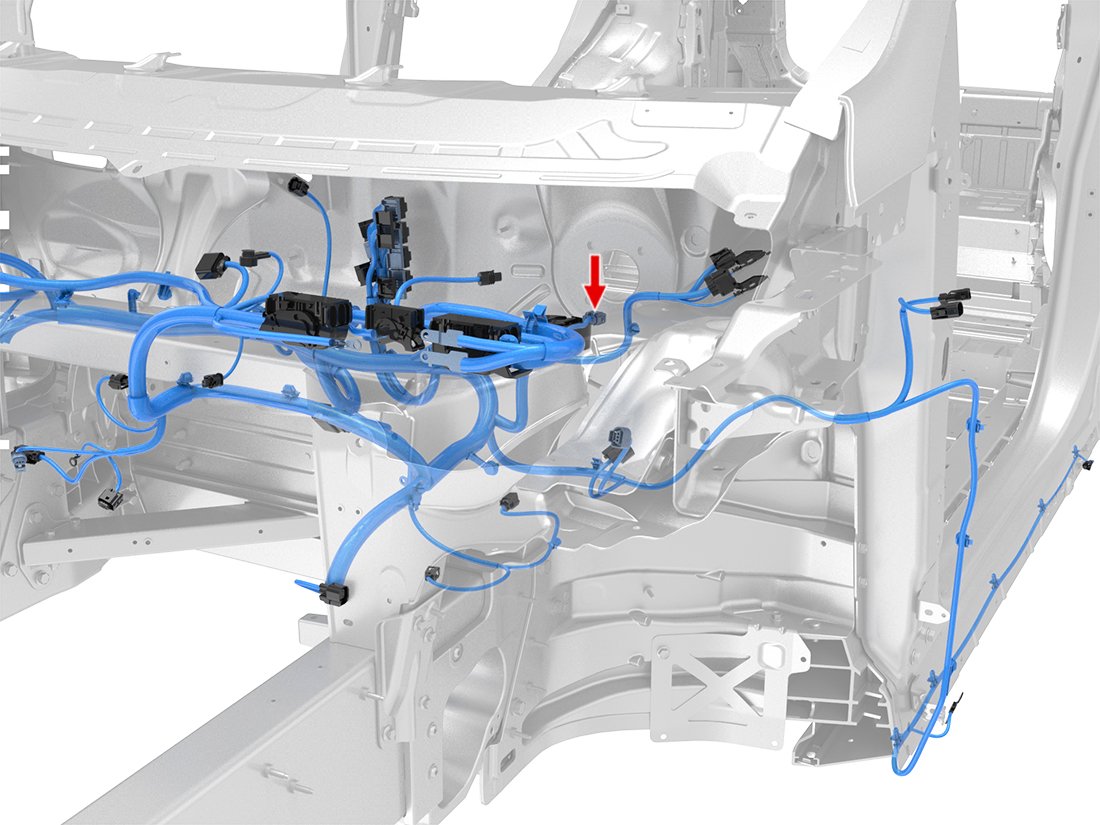

Location:
Connector Detail: AMP 1-967640-1
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | WH | 0.5 | SN | X150-2 | AMP 5-965906-1 | AMP 967067-2 | 1099460-00-C | |
| 2 | BN | 0.5 | SN | X150-22 | AMP 5-965906-1 | AMP 967067-2 | 1099460-00-C | |
| 3 | GY | 0.5 | SN | X150-8 | AMP 5-965906-1 | AMP 967067-2 | 1099460-00-C | |
| 4 | BU | 0.5 | SN | X150-23 | AMP 5-965906-1 | AMP 967067-2 | 1099460-00-C |
