X159A - s-rhd-sop10

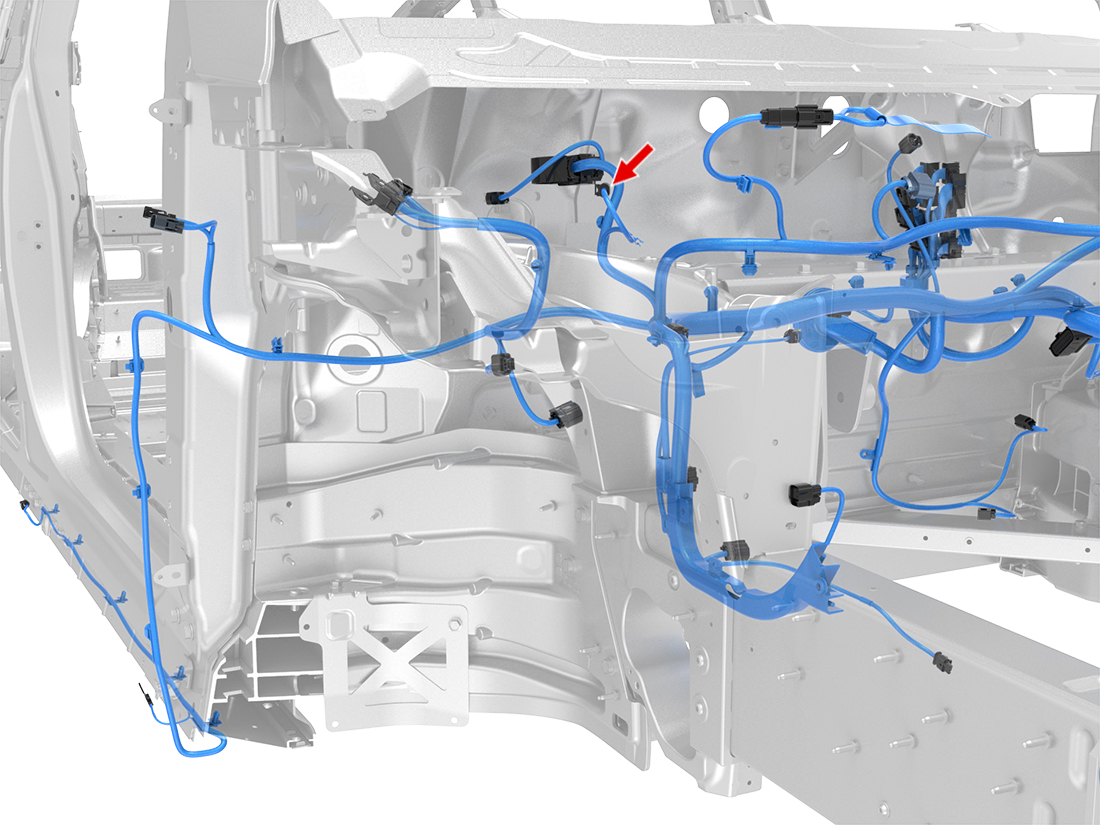

Location:
Connector Detail: Delphi 12162195
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| A | BK | 0.5 | SN | GND_FR_RH2-1 | Delphi 12089290 | Tesla MAT-125-185 | 1108329-00-C | |
| B | WH | 0.5 | SN | X051-29 | Delphi 12089290 | Tesla MAT-125-185 | 1108329-00-C |
