X160 - s-rhd-sop10

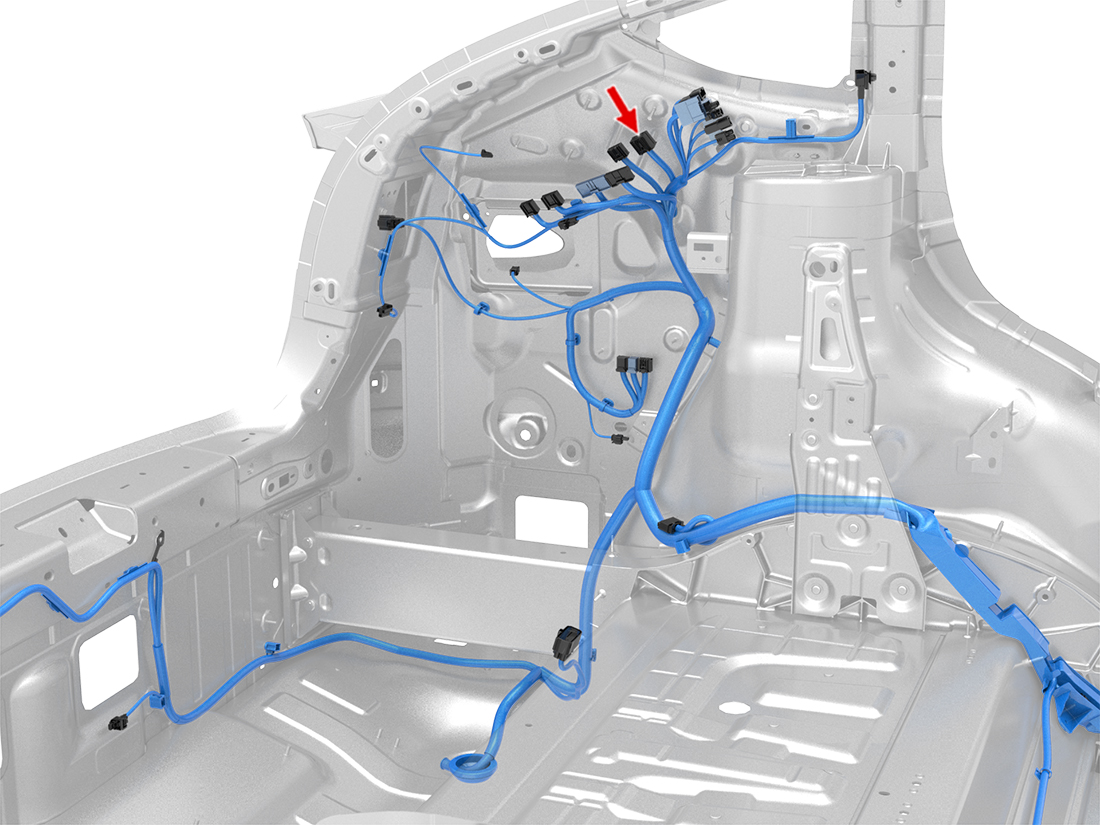

Location:

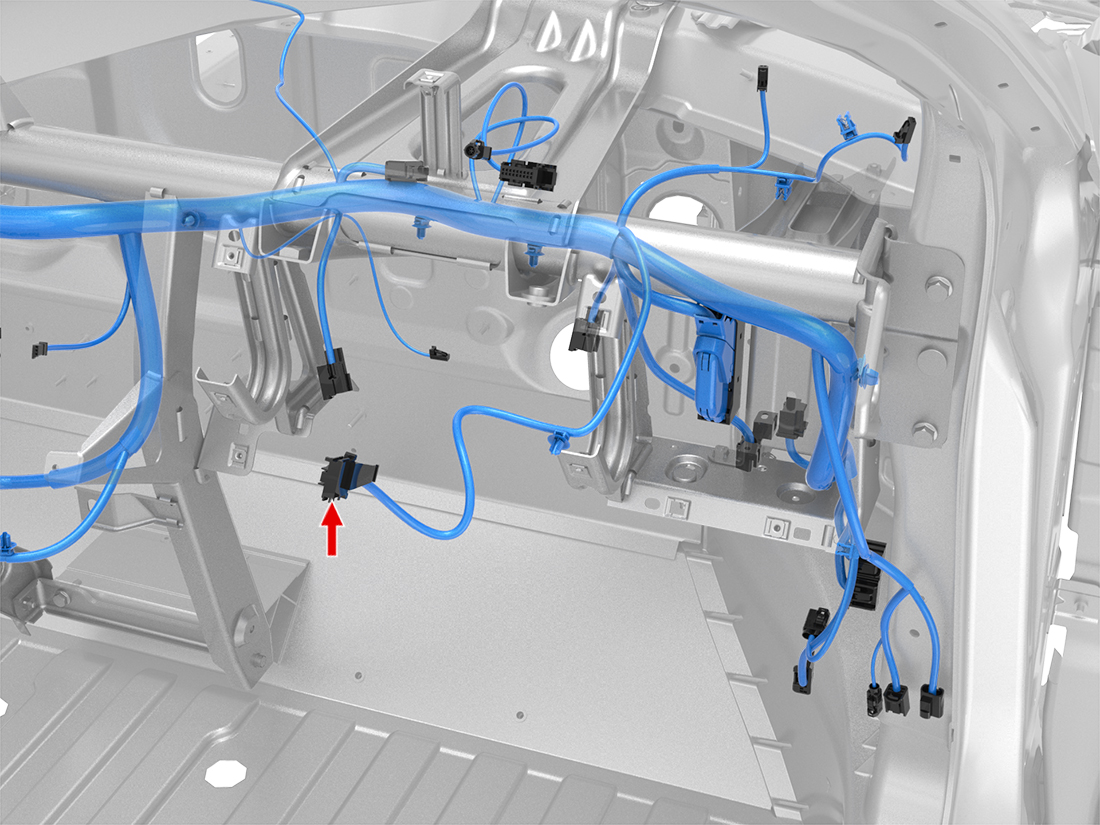

Location:
Location:
Connector Detail: Kostal 22400736181
Color: Yellow
Serviceability: Terminal Pigtail
Connector Detail: MOLEX 31372-1100
Color: LightGray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GN | 0.35 | SN | X773-4 | Kostal 32140734010 | 1116803-00-A | ||
| 2 | GN/WH | 0.35 | SN | X773-15 | Kostal 32140734010 | 1116803-00-A | ||
| 3 | BK | 0.5 | SN | Z18-+GDD11-L | Kostal 32140734020 | 1116803-00-A | ||
| 4 | RD/GY | 0.35 | SN | X576-16 | Kostal 32140734010 | 1116803-00-A | ||
| 6 | RD | 0.5 | SN | X575-7 | Kostal 32140734020 | 1116803-00-A | ||
| 7 | BK | 0.5 | SN | Z52-GDD10-L | Kostal 32140734020 | 1116803-00-A | ||
| 8 | YE/WH | 0.5 | AG | X949F-2 | Kostal 32124734020 | 1116794-00-A | ||
| 9 | BN | 0.5 | AG | X949F-3 | Kostal 32124734020 | 1108517-00-C | ||
| 10 | WH/BU | 0.5 | AG | X949F-4 | Kostal 32124734020 | 1108517-00-C | ||
| 11 | RD/BU | 0.5 | AG | X949F-5 | Kostal 32124734020 | 1108352-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | 2 | SN | GND_LR-1 | MOLEX 33012-3001 | 1099515-00-A | 1116485-00-A | |
| 3 | BU | 2 | SN | X952M-9 | MOLEX 33012-3001 | 1099515-00-A | 1116485-00-A | |
| 4 | BN | 2 | SN | X952M-1 | MOLEX 33012-3001 | 1099515-00-A | 1116485-00-A | |
| 5 | GN | 2 | SN | X952M-8 | MOLEX 33012-3001 | 1099515-00-A | 1116485-00-A | |
| 6 | GY | 2 | SN | X952M-16 | MOLEX 33012-3001 | 1099515-00-A | 1116485-00-A | |
| 7 | BK | 2 | SN | GND_LR-1 | AMP 1326030-3 | 1099433-00-A | ||
| 8 | RD/WH | 2 | SN | X912M-18 | AMP 1326030-3 | 1099433-00-A | ||
| 9 | RD/BK | 2 | SN | X024-3 | AMP 1326030-3 | 1099433-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | 2 | SN | GND_LR-1 | MOLEX 33012-3001 | 1099515-00-A | 1116485-00-A | |
| 3 | BU | 2 | SN | X952M-9 | MOLEX 33012-3001 | 1099515-00-A | 1116485-00-A | |
| 4 | BN | 2 | SN | X952M-1 | MOLEX 33012-3001 | 1099515-00-A | 1116485-00-A | |
| 5 | GN | 2 | SN | X952M-8 | MOLEX 33012-3001 | 1099515-00-A | 1116485-00-A | |
| 6 | GY | 2 | SN | X952M-16 | MOLEX 33012-3001 | 1099515-00-A | 1116485-00-A | |
| 7 | BK | 2 | SN | GND_LR-1 | AMP 1326030-3 | 1099433-00-A | ||
| 8 | RD/WH | 2 | SN | X912M-18 | AMP 1326030-3 | 1099433-00-A | ||
| 9 | RD/BK | 2 | SN | X024-3 | AMP 1326030-3 | 1099433-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GN | 0.35 | SN | X773-4 | Kostal 32140734010 | 1116803-00-A | ||
| 2 | GN/WH | 0.35 | SN | X773-15 | Kostal 32140734010 | 1116803-00-A | ||
| 3 | BK | 0.5 | SN | Z18-+GDD11-L | Kostal 32140734020 | 1116803-00-A | ||
| 4 | RD/GY | 0.35 | SN | X576-16 | Kostal 32140734010 | 1116803-00-A | ||
| 6 | RD | 0.5 | SN | X575-7 | Kostal 32140734020 | 1116803-00-A | ||
| 7 | BK | 0.5 | SN | Z52-GDD10-R | Kostal 32140734020 | 1116803-00-A | ||
| 8 | YE/WH | 0.5 | AG | X949F-2 | Kostal 32124734020 | 1108517-00-C | ||
| 9 | BN | 0.5 | AG | X949F-3 | Kostal 32124734020 | 1108517-00-C | ||
| 10 | WH/BU | 0.5 | AG | X949F-4 | Kostal 32124734020 | 1108352-00-C | ||
| 11 | RD/BU | 0.5 | AG | X949F-5 | Kostal 32124734020 | 1108517-00-C |
