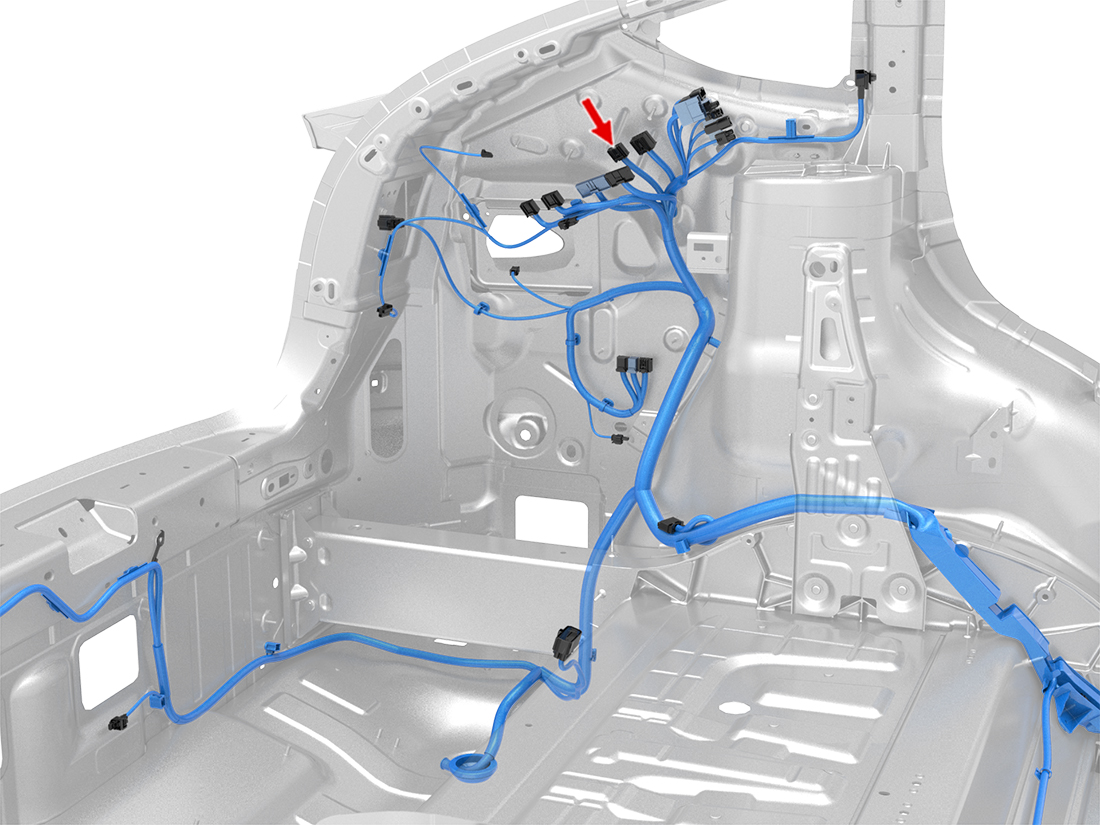

Location:
Connector Detail: JAE MX34020SF1
Color: Gray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/WH | 0.35 | SN | X702-10 | JAE M34S75C4F1 | | 1099499-00-B | |
| 1 | RD/WH | 0.35 | SN | X702A-10 | JAE M34S75C4F1 | | 1099499-00-B | |
| 3 | GN/WH | 0.35 | SN | X706-8 | JAE M34S75C4F1 | | 1099499-00-B | |
| 3 | GN/WH | 0.35 | SN | X706A-8 | JAE M34S75C4F1 | | 1099499-00-B | |
| 5 | VT | 0.5 | SN | X952M-7 | JAE M34S75C4F2 | | 1099500-00-A | |
| 6 | WH | 0.5 | SN | X952M-2 | JAE M34S75C4F2 | | 1099500-00-A | |
| 7 | BN | 0.5 | SN | X952M-15 | JAE M34S75C4F2 | | 1099500-00-A | |
| 8 | GN | 0.5 | SN | X952M-10 | JAE M34S75C4F2 | | 1099500-00-A | |
| 11 | RD | 0.35 | SN | X702-21 | JAE M34S75C4F1 | | 1099499-00-B | |
| 11 | RD | 0.35 | SN | X702A-21 | JAE M34S75C4F1 | | 1099499-00-B | |
| 13 | GN | 0.35 | SN | X706-19 | JAE M34S75C4F1 | | 1099499-00-B | |
| 13 | GN | 0.35 | SN | X706A-19 | JAE M34S75C4F1 | | 1099499-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/WH | 0.35 | SN | X702-10 | JAE M34S75C4F1 | | 1099499-00-B | |
| 1 | RD/WH | 0.35 | SN | X702A-10 | JAE M34S75C4F1 | | 1099499-00-B | |
| 3 | GN/WH | 0.35 | SN | X706-8 | JAE M34S75C4F1 | | 1099499-00-B | |
| 3 | GN/WH | 0.35 | SN | X706A-8 | JAE M34S75C4F1 | | 1099499-00-B | |
| 5 | VT | 0.5 | SN | X952M-7 | JAE M34S75C4F2 | | 1099500-00-A | |
| 6 | WH | 0.5 | SN | X952M-2 | JAE M34S75C4F2 | | 1099500-00-A | |
| 7 | BN | 0.5 | SN | X952M-15 | JAE M34S75C4F2 | | 1099500-00-A | |
| 8 | GN | 0.5 | SN | X952M-10 | JAE M34S75C4F2 | | 1099500-00-A | |
| 11 | RD | 0.35 | SN | X702-21 | JAE M34S75C4F1 | | 1099499-00-B | |
| 11 | RD | 0.35 | SN | X702A-21 | JAE M34S75C4F1 | | 1099499-00-B | |
| 13 | GN | 0.35 | SN | X706-19 | JAE M34S75C4F1 | | 1099499-00-B | |
| 13 | GN | 0.35 | SN | X706A-19 | JAE M34S75C4F1 | | 1099499-00-B | |
