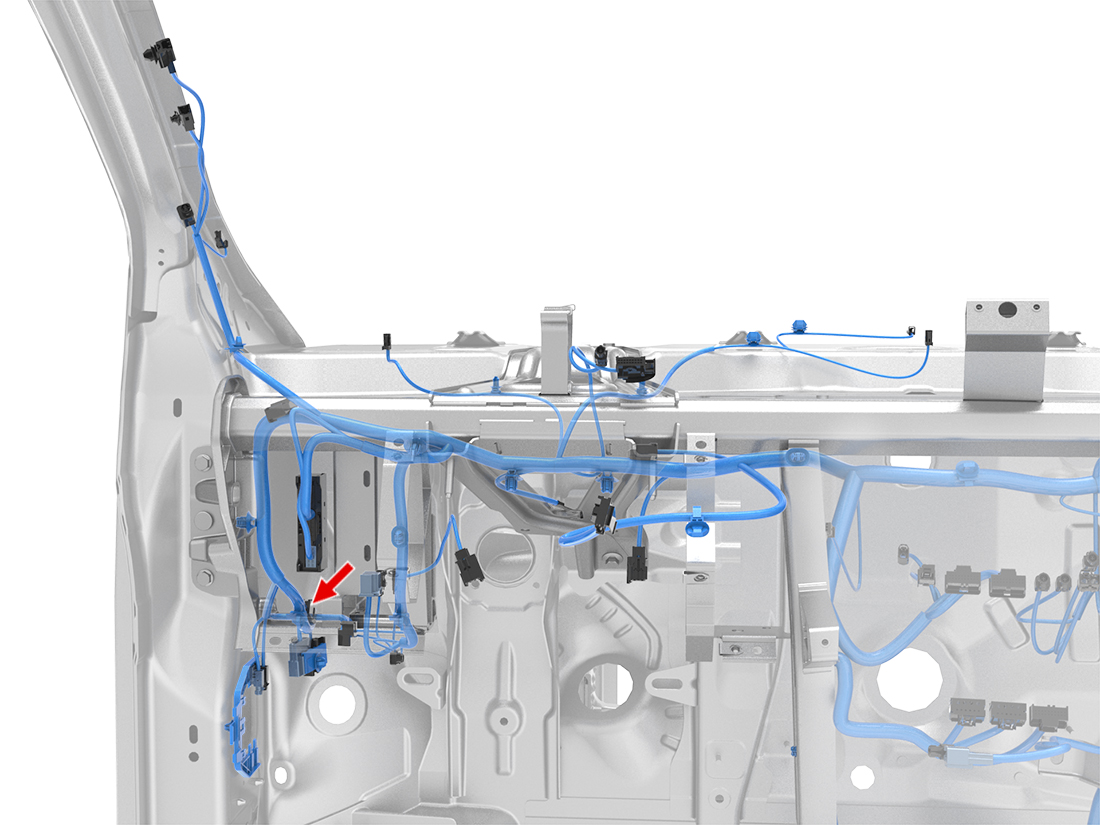

Location:

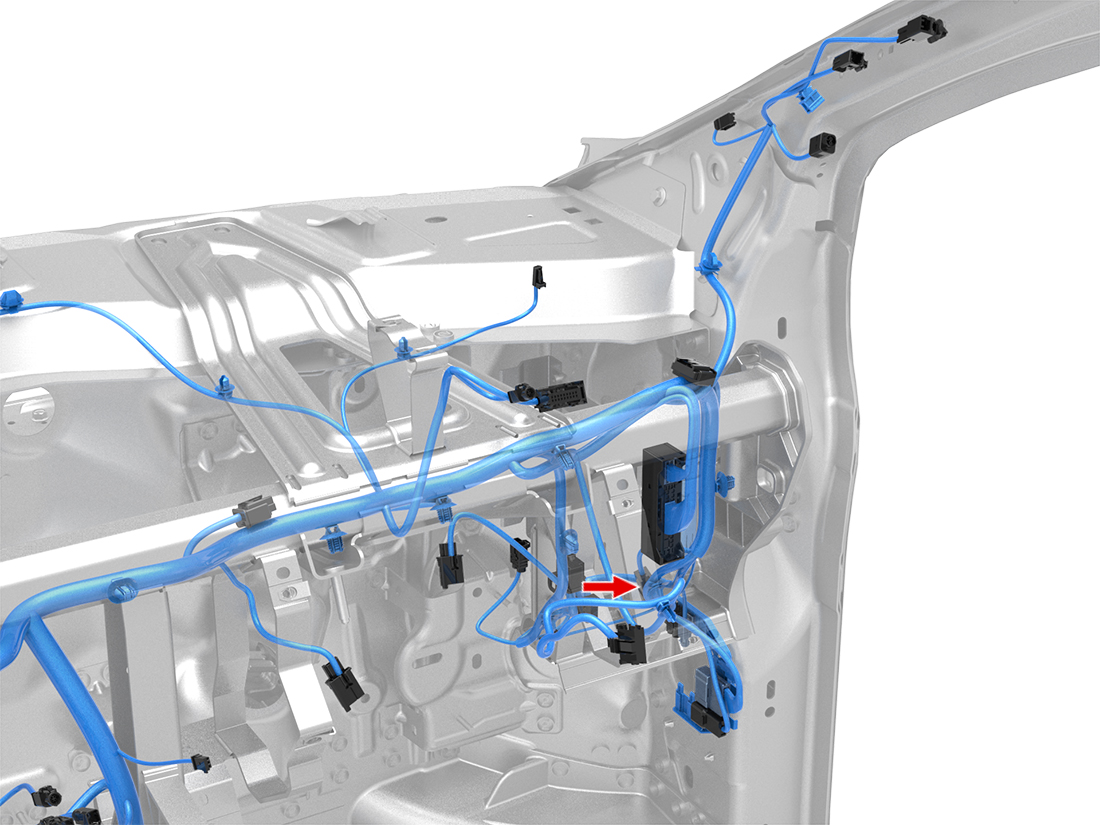

Location:
Connector Detail: Sumitomo 6520-0348
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BU | 1.5 | SN | X926F-9 | Sumitomo 8230-4502 | | 1108398-00-D | |
| 2 | BK | 1.5 | SN | GND_IP_L-1 | Sumitomo 8230-4502 | | 1108398-00-D | |
| 3 | WH | 0.35 | SN | X063-8 | Sumitomo 8230-4742 | | 1108399-00-C | |
| 4 | BN | 1.5 | SN | X915F-2 | Sumitomo 8230-4502 | | 1108398-00-D | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BU | 1.5 | SN | X926F-9 | Sumitomo 8230-4502 | | 1108398-00-D | |
| 2 | BK | 1.5 | SN | GND_IP_R-1 | Sumitomo 8230-4502 | | 1108398-00-D | |
| 3 | WH | 0.35 | SN | X063-8 | Sumitomo 8230-4742 | | 1108399-00-C | |
| 4 | BN | 1.5 | SN | X915F-2 | Sumitomo 8230-4502 | | 1108398-00-D | |
