X166 - s-rhd-sop10

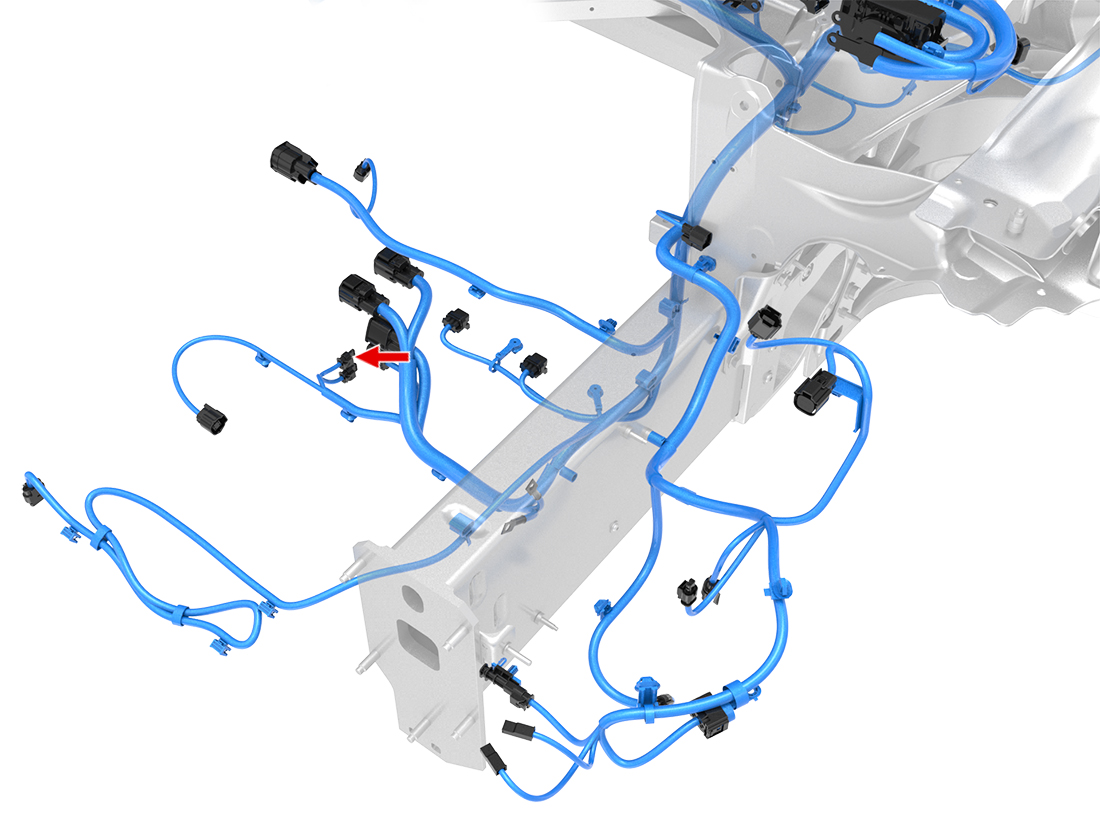

Location:

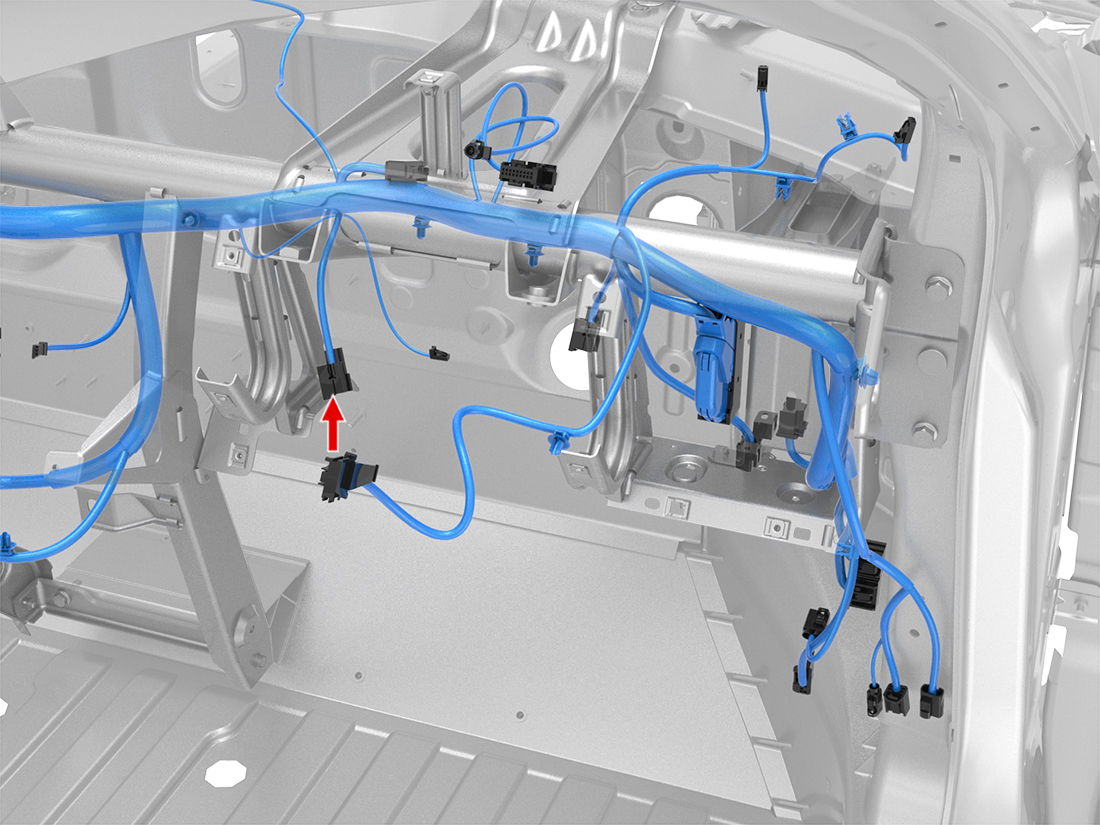

Location:
Location:
Connector Detail: AMP 1326490-3
Color: Gray
Serviceability: Terminal Pigtail
Connector Detail: AMP 2-1718644-1
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/WH | 0.75 | SN | X948F-1 | AMP 927771-1 | 1099465-00-A | ||
| 2 | WH | 0.75 | SN | X948F-2 | AMP 927771-1 | 1099465-00-A | ||
| 3 | BN | 0.35 | SN | Z14-SCA10-R | AMP 965914-2 | 1099470-00-A | ||
| 4 | WH/BK | 0.35 | SN | X948F-4 | AMP 965914-2 | 1099470-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/WH | 0.75 | SN | Z1-PDR16-L | AMP 7-1452668-1 | AMP 967067-1 | 1099462-00-C | |
| 2 | YE/WH | 0.5 | SN | X751-7 | AMP 7-1452668-1 | AMP 967067-1 | 1099461-00-C | |
| 3 | YE | 0.5 | SN | X751-18 | AMP 7-1452668-1 | AMP 967067-1 | 1099461-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/WH | 0.75 | SN | Z1-PDR16-L | AMP 7-1452668-1 | AMP 967067-1 | 1099462-00-C | |
| 2 | YE/WH | 0.5 | SN | X751-7 | AMP 7-1452668-1 | AMP 967067-1 | 1099461-00-C | |
| 3 | YE | 0.5 | SN | X751-18 | AMP 7-1452668-1 | AMP 967067-1 | 1099461-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/WH | 0.75 | SN | X948F-1 | AMP 927771-1 | 1099465-00-A | ||
| 2 | WH | 0.75 | SN | X948F-2 | AMP 927771-1 | 1099465-00-A | ||
| 3 | BN | 0.35 | SN | Z14-SCA10-R | AMP 965914-2 | 1099470-00-A | ||
| 4 | WH/BK | 0.35 | SN | X948F-4 | AMP 965914-2 | 1099470-00-A |
