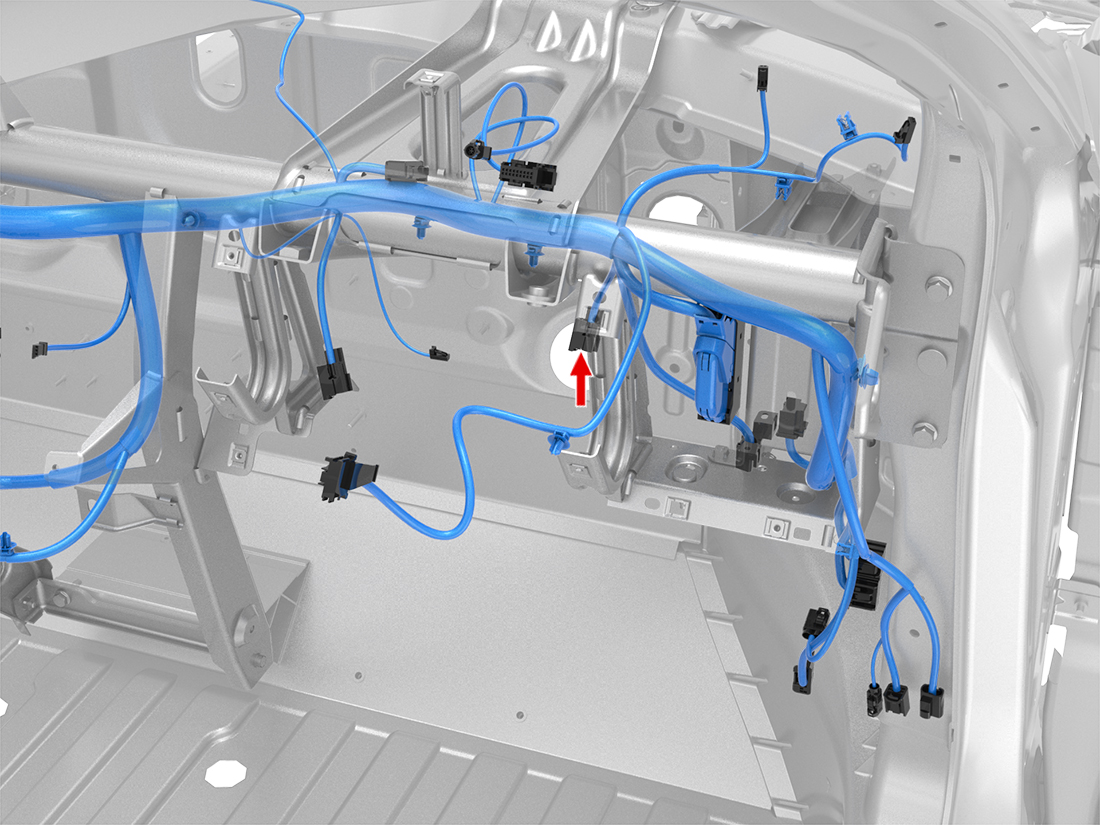

Location:
Location:
Connector Detail: AMP 1326490-3
Color: Gray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/VT | 0.75 | SN | X948F-11 | AMP 927771-1 | | 1099465-00-A | |
| 2 | VT | 0.75 | SN | X948F-10 | AMP 927771-1 | | 1099465-00-A | |
| 3 | BN | 0.35 | SN | Z14-SCA10-R | AMP 965914-2 | | 1099470-00-A | |
| 4 | OG | 0.35 | SN | X948F-8 | AMP 965914-2 | | 1099470-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/VT | 0.75 | SN | X948F-11 | AMP 927771-1 | | 1099465-00-A | |
| 2 | VT | 0.75 | SN | X948F-10 | AMP 927771-1 | | 1099465-00-A | |
| 3 | BN | 0.35 | SN | Z14-SCA10-R | AMP 965914-2 | | 1099470-00-A | |
| 4 | OG | 0.35 | SN | X948F-8 | AMP 965914-2 | | 1099470-00-A | |
