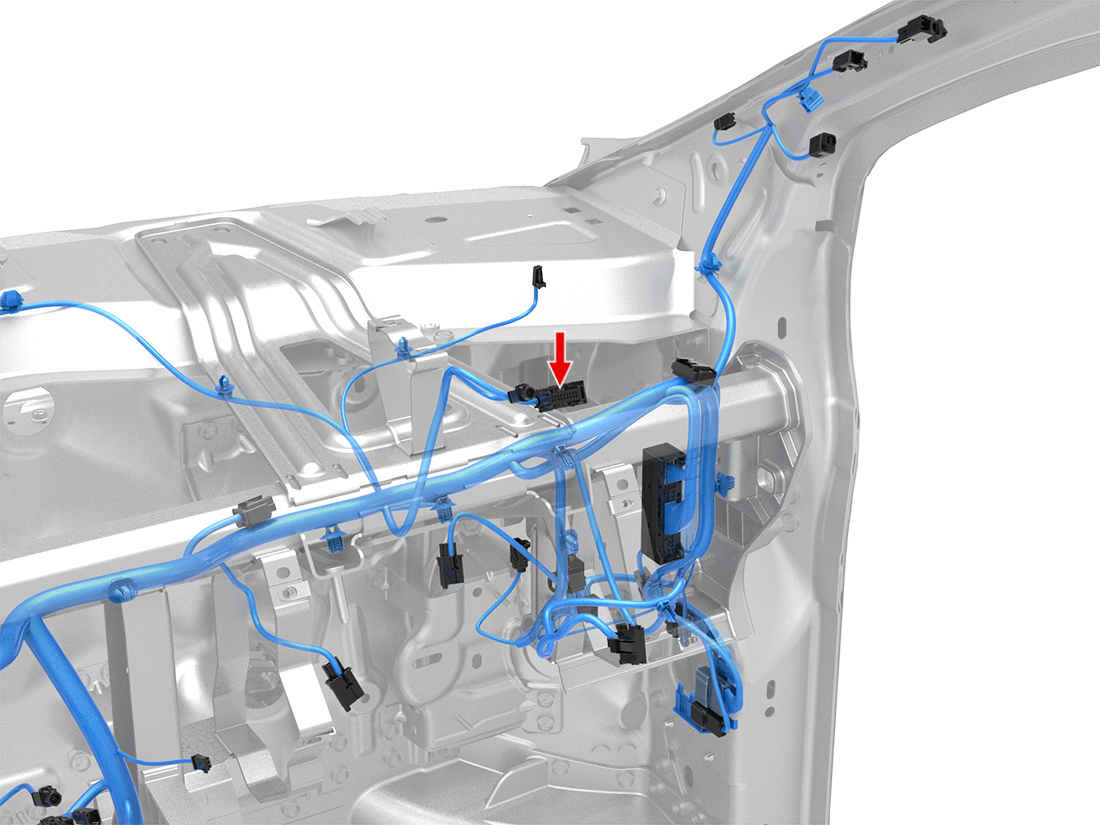

Location:
Location:
Connector Detail: AMP 1355348-1
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 6 | GN/WH | 0.35 | SN | X730-7 | AMP 5-928999-1 | | 1099455-00-B | |
| 7 | GN | 0.35 | SN | X730-18 | AMP 5-928999-1 | | 1099455-00-B | |
| 8 | BK | 0.35 | SN | GND_IP_L-1 | AMP 5-928999-1 | | 1099455-00-B | |
| 13 | VT/WH | 0.35 | SN | X171-4 | AMP 5-928999-1 | | 1099455-00-B | |
| 17 | RD | 0.35 | SN | X026-7 | AMP 5-928999-1 | | 1099455-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 6 | GN/WH | 0.35 | SN | X730-7 | AMP 5-928999-1 | | 1099455-00-B | |
| 7 | GN | 0.35 | SN | X730-18 | AMP 5-928999-1 | | 1099455-00-B | |
| 8 | BK | 0.35 | SN | GND_IP_R-1 | AMP 5-928999-1 | | 1099455-00-B | |
| 13 | VT/WH | 0.35 | SN | X171-4 | AMP 5-928999-1 | | 1099455-00-B | |
| 17 | RD | 0.35 | SN | X026-7 | AMP 5-928999-1 | | 1099455-00-B | |
