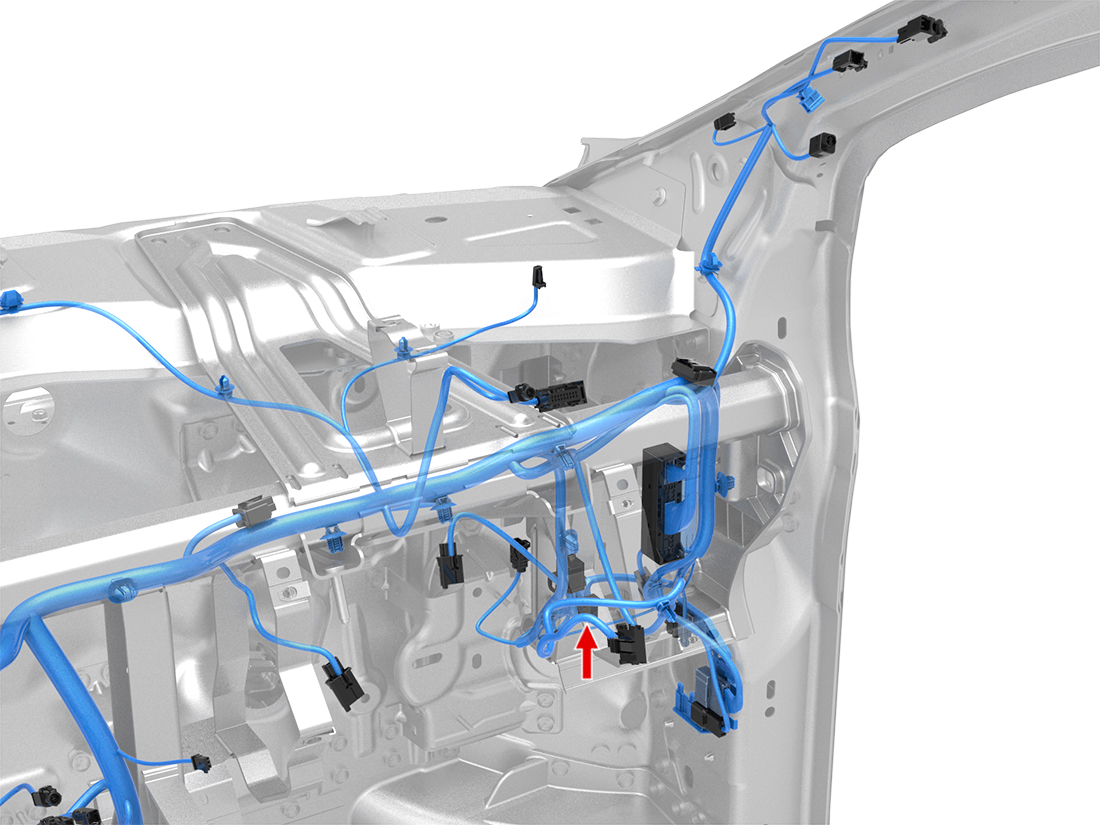

Location:

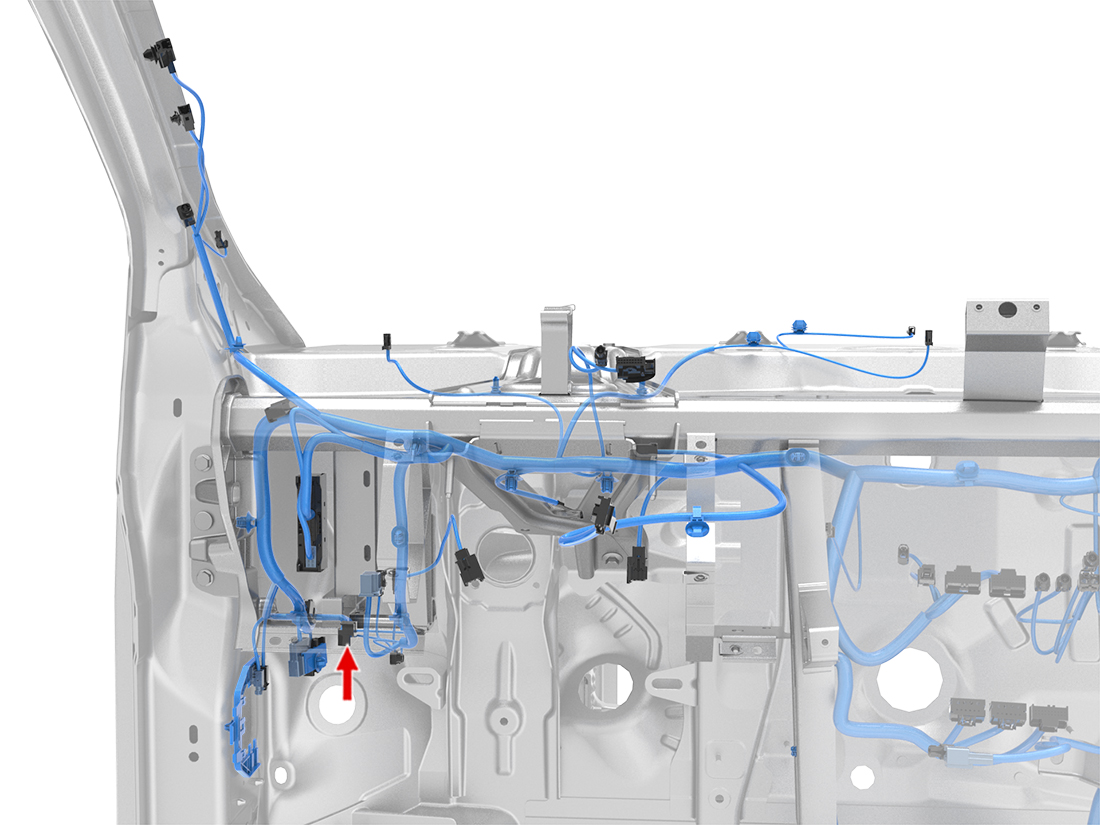

Location:
Connector Detail: Delphi 12110250
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GN/WH | 0.5 | SN | X730-8 | Delphi 12129373 | | 1099478-00-A | |
| 4 | BK/BU | 0.5 | SN | GND_IP_L-1 | Delphi 12129373 | | 1099478-00-A | |
| 5 | BK/BN | 0.5 | SN | GND_IP_L-1 | Delphi 12129373 | | 1099478-00-A | |
| 6 | BU/WH | 0.5 | SN | X171-10 | Delphi 12129373 | | 1099478-00-A | |
| 7 | VT | 0.5 | SN | X728-18 | Delphi 12129373 | | 1099478-00-A | |
| 9 | GN | 0.5 | SN | X730-19 | Delphi 12129373 | | 1099478-00-A | |
| 14 | BU | 0.5 | SN | X171-20 | Delphi 12129373 | | 1099478-00-A | |
| 16 | RD | 0.5 | SN | X728-7 | Delphi 12129373 | | 1099478-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GN/WH | 0.5 | SN | X730-8 | Delphi 12129373 | | 1099478-00-A | |
| 4 | BK/BU | 0.5 | SN | GND_IP_R-1 | Delphi 12129373 | | 1099478-00-A | |
| 5 | BK/BN | 0.5 | SN | GND_IP_R-1 | Delphi 12129373 | | 1099478-00-A | |
| 6 | BU/WH | 0.5 | SN | X171-10 | Delphi 12129373 | | 1099478-00-A | |
| 7 | VT | 0.5 | SN | X728-18 | Delphi 12129373 | | 1099478-00-A | |
| 9 | GN | 0.5 | SN | X730-19 | Delphi 12129373 | | 1099478-00-A | |
| 14 | BU | 0.5 | SN | X171-20 | Delphi 12129373 | | 1099478-00-A | |
| 16 | RD | 0.5 | SN | X728-7 | Delphi 12129373 | | 1099478-00-A | |
