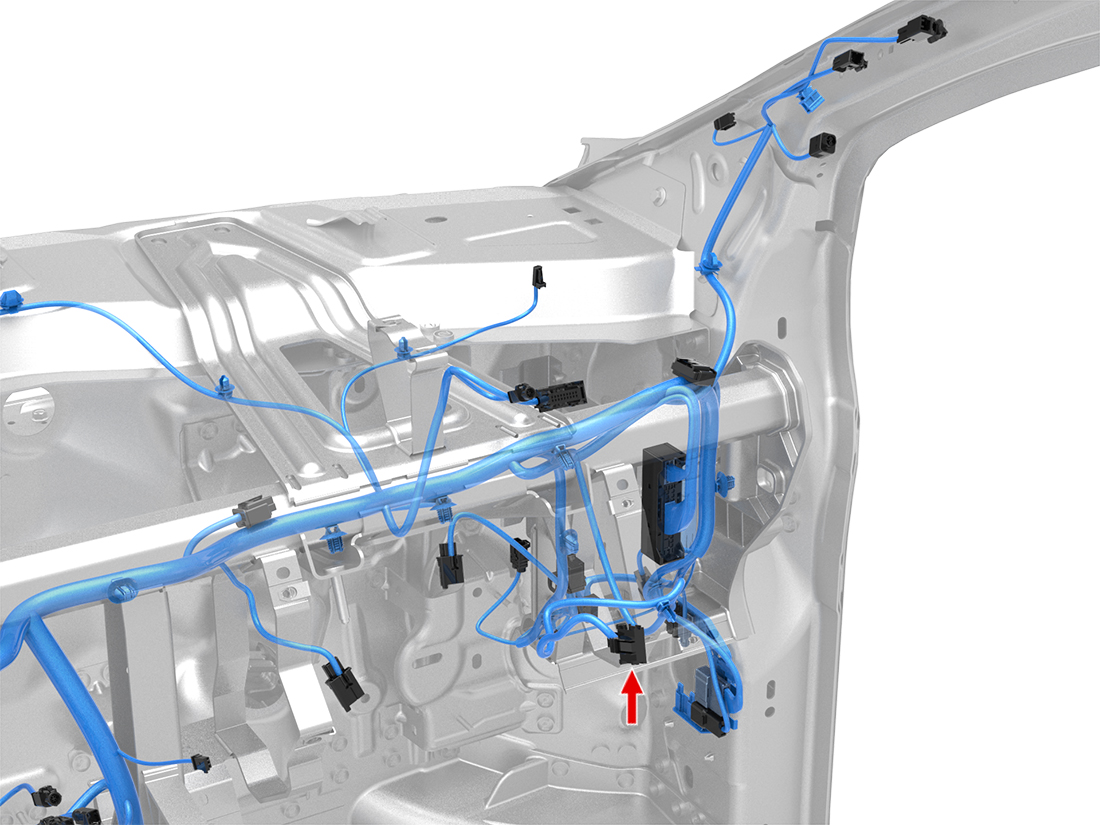

Location:

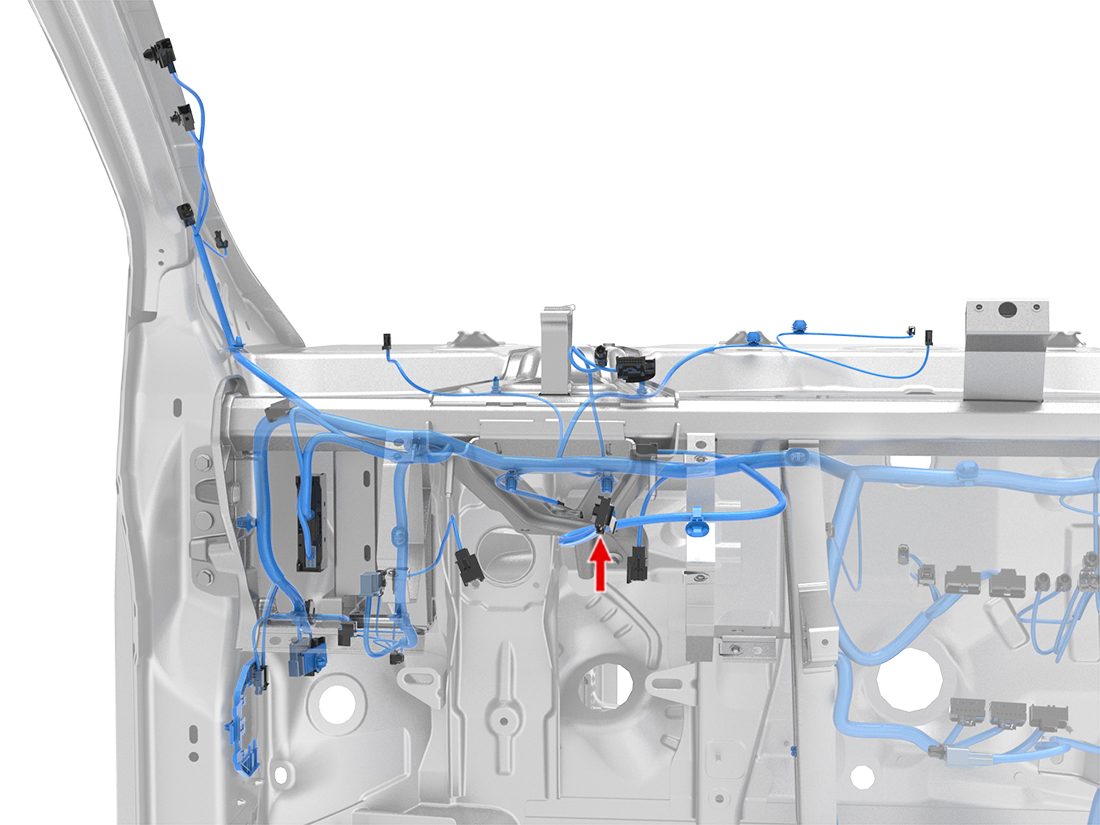

Location:
Connector Detail: Kostal 22400736181
Color: Yellow
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GN | 0.35 | SN | X730-20 | Kostal 32140734010 | | 1116803-00-A | |
| 2 | GN/WH | 0.35 | SN | X730-9 | Kostal 32140734010 | | 1116803-00-A | |
| 3 | BK | 0.35 | SN | GND_IP_L-1 | Kostal 32140734010 | | 1116803-00-A | |
| 4 | RD/VT | 0.35 | SN | X026-16 | Kostal 32140734010 | | 1116803-00-A | |
| 6 | RD | 0.5 | SN | X025-7 | Kostal 32140734020 | | 1116803-00-A | |
| 7 | BK | 0.5 | SN | GND_IP_L-1 | Kostal 32140734020 | | 1116803-00-A | |
| 8 | OG | 0.35 | AG | X200-29 | Kostal 32124734010 | | 1108341-00-C | |
| 9 | GN | 0.35 | AG | X200-30 | Kostal 32124734010 | | 1108341-00-C | |
| 10 | OG | 0.35 | AG | X200-23 | Kostal 32124734010 | | 1108341-00-C | |
| 11 | BN | 0.35 | AG | X200-24 | Kostal 32124734010 | | 1108341-00-C | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GN | 0.35 | SN | X730-20 | Kostal 32140734010 | | 1116803-00-A | |
| 2 | GN/WH | 0.35 | SN | X730-9 | Kostal 32140734010 | | 1116803-00-A | |
| 3 | BK | 0.35 | SN | GND_IP_R-1 | Kostal 32140734010 | | 1116803-00-A | |
| 4 | RD/VT | 0.35 | SN | X026-16 | Kostal 32140734010 | | 1116803-00-A | |
| 6 | RD | 0.5 | SN | X025-7 | Kostal 32140734020 | | 1116803-00-A | |
| 7 | BK | 0.5 | SN | GND_IP_R-1 | Kostal 32140734020 | | 1116803-00-A | |
| 8 | OG | 0.35 | AG | X200-29 | Kostal 32124734010 | | 1108341-00-C | |
| 9 | GN | 0.35 | AG | X200-30 | Kostal 32124734010 | | 1108341-00-C | |
| 10 | OG | 0.35 | AG | X200-23 | Kostal 32124734010 | | 1108341-00-C | |
| 11 | BN | 0.35 | AG | X200-24 | Kostal 32124734010 | | 1108341-00-C | |
