X182 - s-rhd-sop10

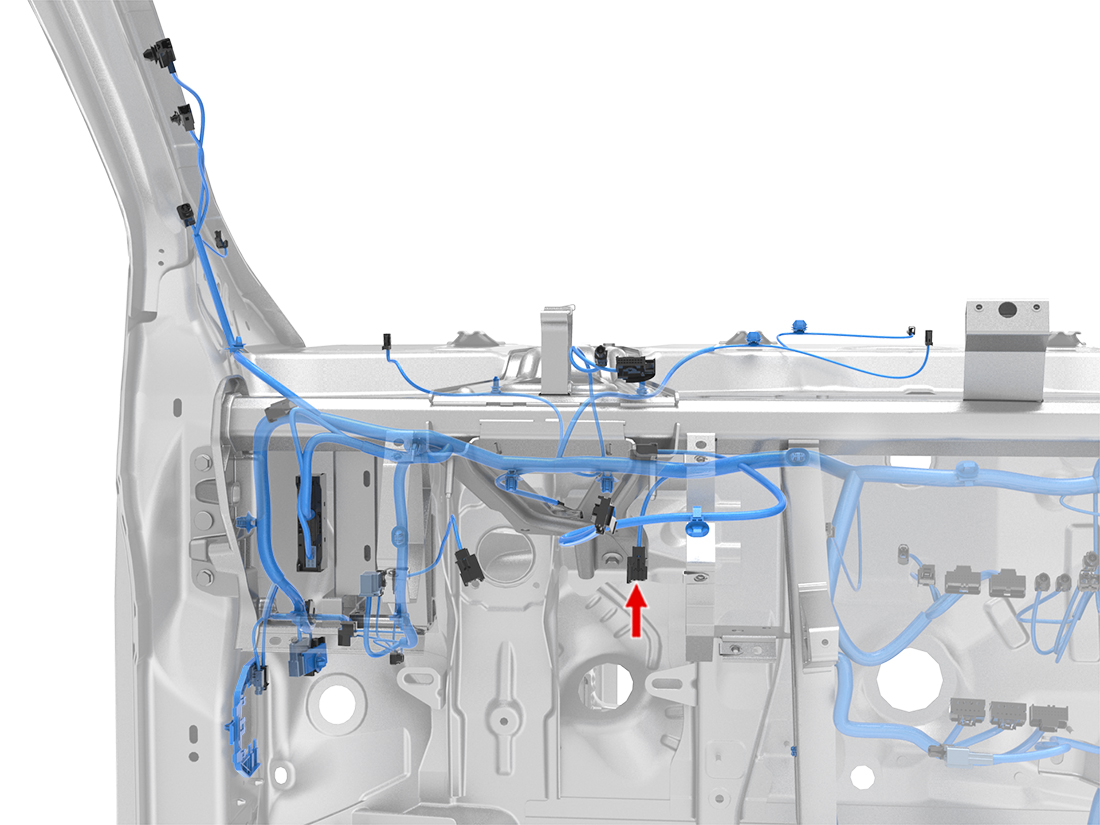

Location:
Location:
Location:
Connector Detail: AMP 1326490-3
Color: Gray
Serviceability: Terminal Pigtail
Connector Detail: FEP 42511400
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK/GY | 0.35 | AU | X180A-34 | AMP 1564324-2 | AMP 964971-1 | 1099428-00-B | |
| 2 | GY | 0.35 | AU | X180A-33 | AMP 1564324-2 | AMP 964971-1 | 1099428-00-B | |
| 3 | RD | 0.35 | AU | X180A-13 | AMP 1564324-2 | AMP 964971-1 | 1099428-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.75 | SN | X063-2 | AMP 927771-1 | 1099465-00-A | ||
| 2 | BK | 0.75 | SN | X063-3 | AMP 927771-1 | 1099465-00-A | ||
| 3 | GN | 0.35 | SN | X060-25 | AMP 965914-2 | 1099470-00-A | ||
| 4 | BU | 0.35 | SN | X060-27 | AMP 965914-2 | 1099470-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.75 | SN | X063-2 | AMP 927771-1 | 1099465-00-A | ||
| 2 | BK | 0.75 | SN | X063-3 | AMP 927771-1 | 1099465-00-A | ||
| 3 | GN | 0.35 | SN | X060-25 | AMP 965914-2 | 1099470-00-A | ||
| 4 | BU | 0.35 | SN | X060-27 | AMP 965914-2 | 1099470-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK/GY | 0.35 | AU | X180A-34 | AMP 1564324-2 | AMP 964971-1 | 1099428-00-B | |
| 2 | GY | 0.35 | AU | X180A-33 | AMP 1564324-2 | AMP 964971-1 | 1099428-00-B | |
| 3 | RD | 0.35 | AU | X180A-13 | AMP 1564324-2 | AMP 964971-1 | 1099428-00-B |
